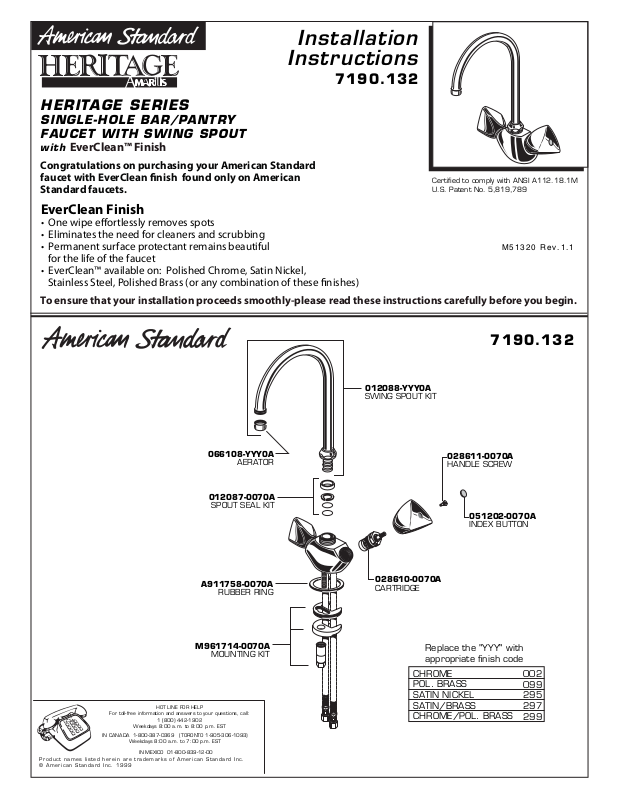

American Standard 7190.132 User Manual
Installation
Instructions
7190.132
HERITAGE SERIES
SINGLE-HOLE BAR/PANTRY
FAUCET WITH SWING SPOUT
with EverClean™ Finish
Congratulations on purchasing your American Standard
faucet with EverClean nish found only on American
Standard faucets.
EverClean Finish
• One wipe eortlessly removes spots
• Eliminates the need for cleaners and scrubbing
• Permanent surface protectant remains beautiful
for the life of the faucet
• EverClean™ available on: Polished Chrome, Satin Nickel,
Stainless Steel, Polished Brass (or any combination of these nishes)
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Certified to comply with ANSI A112.18.1M
U.S. Patent No. 5,819,789
.3FW
066108-YYY0A
AERATOR
012087-0070A
SPOUT SEAL KIT
A911758-0070A
RUBBER RING
7190.132
012088-YYY0A
SWING SPOUT KIT
028611-0070A
HANDLE SCREW
051202-0070A
INDEX BUTTON
028610-0070A
CARTRIDGE
M961714-0070A
MOUNTING KIT
For toll-free information and answers to your questions, call:
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Product names listed herein are trademarks of American Standard Inc.
© American Standard Inc. 1999
HOT LINE FOR HELP
1 (800) 442-1902
Weekdays 8:00 a.m. to 8:00 p.m. EST
Weekdays 8:00 a.m. to 7:00 p.m. EST
IN MEXICO 01-800-839-12-00
Replace the "YYY" with
appropriate finish code
CHROME
POL. BRASS
SATIN NICKEL
SATIN/BRASS
CHROME/POL. BRASS
002
099
295
297
299
SWING SPOUT ASSEMBLY
CAUTION
Turn off hot and cold water
supplies before beginning.
3
Apply the grease (provided) liberally to the
SPOUT O-RING (1) and SNAP RING (2) areas.
Assemble the SPOUT (3) and tighten the
SPOUT NUT
FITTING INSTALLATION
Remove LOCKNUT (1), BRASS WASHER (2), and
GASKET
Place RUBBER RING (4) in recess of fitting.
Insert inlet hoses and THREADED SHANK through hole of sink
making certain RUBBER RING
of the fitting base.
Assemble GASKET (3), BRASS WASHER (2), and LOCKNUT (1)
onto the THREADED SHANK from underside of sink deck.
Tighten the LOCKNUT (1) securely.
Connect the hot water supply to the left inlet hose
and the cold water supply to the right inlet hose
using appropriate connectors.
(4) until snug on VALVE BODY.
(3) from fitting.
(4) is properly seated in the recess
4
2
1
4
RECESS
3
1
2
HOT
TEST INSTALLED FAUCET
Remove AERATOR.
With handle in OFF position, turn on water supplies
and check all connections for leaks.
SERVICE
To change direction of handle rotation,
proceed as follows:
Turn valve to OFF position.
Remove INSERT and HANDLE SCREW.
Slip HANDLE with ADAPTER off.
Remove SPRING CLIP (1).
Lift STOP WASHER (2), turn 90p and replace.
Replace SPRING CLIP (1).
Replace ADAPTER, HANDLE, SCREW, and INSERT.
2
90p
FLEXIBLE
INLET HOSES
Operate both handles to flush water lines thoroughly.
Checkspout mounting and hose connections for leaks.
Turn handles into OFF position and replace AERATOR.
AERATOR may accumulate dirt causing distorted and reduced
water flow. Remove AERATOR and rinse clean.
If spout drips, operate handles several times from OFF to ON
position. Do not force - handles turn only 90p.
COLD
1
Plastic SCREEN (3) in CARTRIDGE (4) may accumulate
dirt causing reduced water flow. To clean, first turn
off hot and cold water supplies, then:
Remove INSERT and HANDLE SCREW.
Slip HANDLE with ADAPTER off.
Unscrew CARTRIDGE (4) with wrench.
Thoroughly rinse plastic SCREEN (3) at
base of CARTRIDGE (4).
Replace CARTRIDGE (4) until flange is
tight against valve body.
Turn valves OFF.
Replace ADAPTER, HANDLE, SCREW,
and INSERT.
4
3
EverClean™ Finish Care Instructions
American Standard’s EverClean finish will wipe clean with a soft, dry cloth. A soft cloth with
clean water may also be used, if desired. No additional cleaning products are required.
DO NOT USE: Soaps, acid, polish, abrasives, harsh cleaners, or a cloth with a coarse surface.
.3FW
