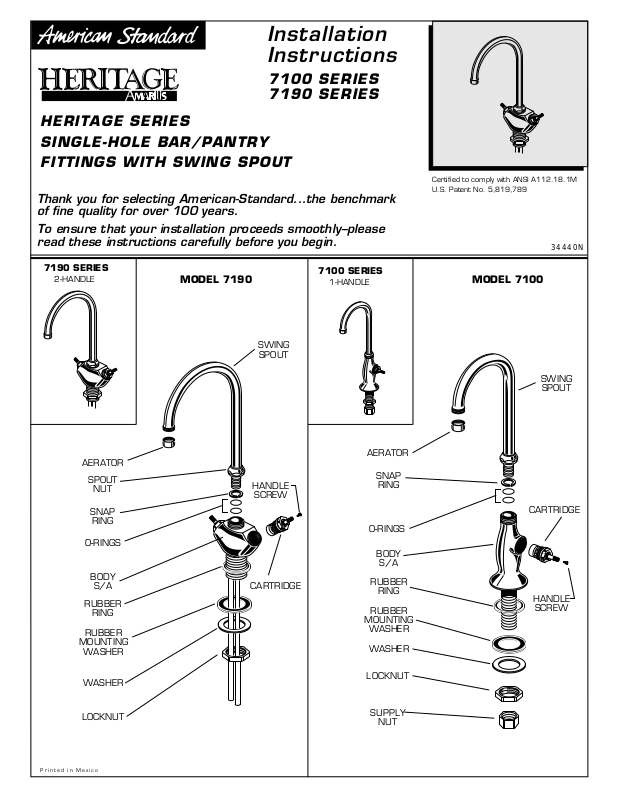

Installation
Instructions
7100 SERIES
7190 SERIES
HERITAGE SERIES
SINGLE-HOLE BAR/PANTRY
FITTINGS WITH SWING SPOUT
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Certified to comply with ANSI A112.18.1M
U.S. Patent No. 5,819,789
34440N
7190 SERIES
2-HANDLE
AERATOR
SPOUT
NUT
SNAP
RING
O-RINGS
BODY
S/A
RUBBER
RING
RUBBER
MOUNTING
WASHER
MODEL 7190 MODEL 7100
SWING
SPOUT
HANDLE
SCREW
CARTRIDGE
7100 SERIES
1-HANDLE
AERATOR
O-RINGS
RUBBER
RUBBER
MOUNTING
WASHER
WASHER
SNAP
RING
CARTRIDGE
BODY
S/A
RING
HANDLE
SCREW
SWING
SPOUT
WASHER
LOCKNUT
Printed in Mexico
LOCKNUT
SUPPLY
NUT
1
CAUTION
Turn off hot and cold water supplies before beginning.
SWING SPOUT ASSEMBLY
Apply the grease (provided) liberally to the SPOUT
O-RING and SNAP RING areas.
Assemble the SPOUT and tighten the SPOUT NUT
until snug on VALVE BODY.
FITTING INSTALLATION
2
Remove LOCKNUT, BRASS WASHER, and RUBBER WASHER
from fitting.
Place RUBBER RING in recess of fitting.
Insert inlet tubes (on model 7190 only) and THREADED
SHANK through hole of sink making certain RUBBER RING
is properly seated in the recess of the fitting base.
Assemble RUBBER WASHER, BRASS WASHER, and LOCKNUT
onto the THREADED SHANK from underside of sink deck.
Tighten the LOCKNUT securely.
For Model 7190 Only
Bend the inlet tubes to meet the supply lines.
NOTE: Use the palm of your hand to support the inlet tubes
during bending to avoid kinking of the tubes.
Connect the hot water supply line to the left inlet tube and
the cold water supply line to the right inlet tube using
appropriate connectors.
For Model 7100 Only
Connect hot or cold water supply lines to shank using sealant,
appropriate connectors, and coupling nuts.
MODEL 7190 MODEL 7100
RECESS
RUBBER
RECESS
COPPER
INLET TUBES
HOT
COLD
RING
SHANK
RUBBER
MOUNTING
WASHER
BRASS
WASHER
LOCKNUT
SUPPLY
NUT
SPOUT
SPOUT
NUT
SNAP
RING
SPOUT
O-RINGS
TEST INSTALLED FAUCET
3
Remove AERATOR.
With handle in OFF position, turn on water supplies and check
all connections for leaks.
SERVICE
4
To change direction of handle rotation,
proceed as follows:
Turn valve to OFF position.
Remove INSERT and HANDLE SCREW.
Slip HANDLE with ADAPTER off.
Remove SPRING CLIP.
Lift STOP WASHER, turn 90° and replace.
Replace SPRING CLIP.
Replace ADAPTER, HANDLE, SCREW, and INSERT.
For toll-free information and answers to your questions, call:
Weekdays 8:00 a.m. to 7:00 p.m. Eastern Time
Saturdays 8:00 a.m. to 4:00 p.m. Eastern Time
IN CANADA 1-800-387-0369 (TORONTO 1-416-536-5609)
HOTLINE FOR HELP
1 (800) 223-0068
SPRING
CLIP
STOP
WASHER
Operate both handles to flush water lines thoroughly. Check
spout mounting and hose connections for leaks.
Turn handles into OFF position and replace AERATOR.
AERATOR may accumulate dirt causing distorted and reduced
water flow. Remove AERATOR and rinse clean.
If spout drips, operate handles several times from OFF to ON
position. Do not force - handles turn only 90°.
Plastic SCREEN in CARTRIDGE may accumulate
dirt causing reduced water flow. To clean, first
turn off hot and cold water supplies, then:
Remove INSERT and HANDLE SCREW.
Slip HANDLE with ADAPTER off.
Unscrew CARTRIDGE with wrench.
Thoroughly rinse plastic SCREEN at
base of CARTRIDGE.
Replace CARTRIDGE until flange is
tight against valve body.
Turn valves OFF.
Replace ADAPTER, HANDLE, SCREW,
and INSERT.
Product names listed herein are trademarks of American Standard Inc.
C
American Standard Inc. 1999
CARTRIDGE
SCREEN
