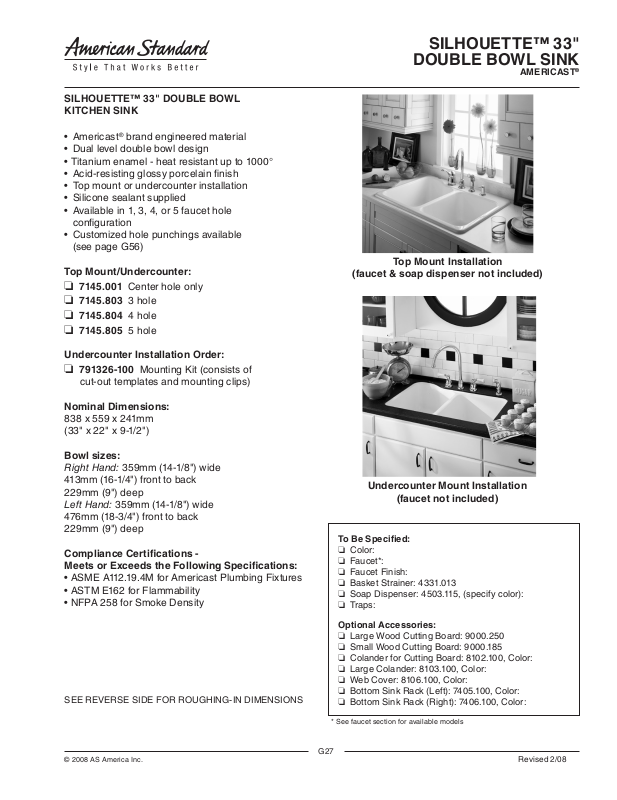

SILHOUETTE™ 33" DOUBLE BOWL KITCHEN SINK

• Americast® brand engineered material

• Dual level double bowl design

• Titanium enamel - heat resistant up to 1000°

• Acid-resisting glossy porcelain nish

• Top mount or undercounter installation

• Silicone sealant supplied

• Available in 1, 3, 4, or 5 faucet hole conguration

• Customized hole punchings available (see page G56)

Top Mount/Undercounter:

❏ 7145.001 Center hole only ❏ 7145.803 3 hole ❏ 7145.804 4 hole ❏ 7145.805 5 hole

SILHOUETTE™ 33"

DOUBLE BOWL SINK

AMERICAST

Top Mount Installation

(faucet & soap dispenser not included)

Undercounter Installation Order:

❏ 791326-100 Mounting Kit (consists of

cut-out templates and mounting clips)

Nominal Dimensions:

838 x 559 x 241mm (33" x 22" x 9-1/2")

Bowl sizes:

Right Hand: 359mm (14-1/8") wide 413mm (16-1/4") front to back 229mm (9") deep Left Hand: 359mm (14-1/8") wide 476mm (18-3/4") front to back 229mm (9") deep

Compliance Certications Meets or Exceeds the Following Specications:

• ASME A112.19.4M for Americast Plumbing Fixtures

• ASTM E162 for Flammability

• NFPA 258 for Smoke Density

SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS

Undercounter Mount Installation

(faucet not included)

To Be Specied:

❏ Color: ❏ Faucet*: ❏ Faucet Finish: ❏ Basket Strainer: 4331.013 ❏ Soap Dispenser: 4503.115, (specify color): ❏ Traps:

Optional Accessories:

❏ Large Wood Cutting Board: 9000.250 ❏ Small Wood Cutting Board: 9000.185 ❏ Colander for Cutting Board: 8102.100, Color: ❏ Large Colander: 8103.100, Color: ❏ Web Cover: 8106.100, Color: ❏ Bottom Sink Rack (Left): 7405.100, Color: ❏ Bottom Sink Rack (Right): 7406.100, Color:

* See faucet section for available models

G27

Revised 2/08

7145.803/804/805 Top Mount

7145 .804 4 HO LE

7145 .805 5 HO LE

C/L

FINI SHED WALL OR S PLASH BACK

1-1/ 2" O.D . TAIL PIECE

FINI SHED

FLOO R

COUN TERTO P

(BY OTHER S)

SEAL ING COMP OUND

*CU TOUT NOTE

9-1/ 8"

(232 mm)

1/2"

(13m m)

5-3/ 4"

(146 mm)

22"

(559 mm)

36" ( 914mm )

SUGG ESTED

16-1 /2"

(419 mm)

33"

(838 mm)

3-1/ 2"

(89m m)

DIA.

1-1/ 2" (38 mm)

RAD. TYP.

2-1/ 8" (54m m)

1-1/ 2" (38 mm) DIA. HOLE S TYP.

4" (1 02mm)

2" (5 1mm)

OPTI ONAL

7-7/ 8"

(200 mm)

8-5/ 8"

(219 mm)

7-7/ 8"

(200 mm)

10-1 /8"

(257 mm)

7145 .804 4 HO LE

7145 .805 5 HO LE

C/L

FINI SHED WALL OR S PLASH BACK

FINI SHED

FLOO R

COUN TERTO P

(BY OTHER S)

SEAL ING COMP OUND

CUTO UT

N OTE

MOUN TING CLIP (SEE DETA IL)

DETAI L OF MOUNTI NG CL IP

(KIT No.79 1002-1 00)

BRASS

INSER T

3/4

(19mm ) MIN.

REFER TO I NSTRUC TIONS

PROVI DED W ITH KI T FOR

ADDIT IONAL INFOR MATION

CLIP MACH. SCREW

SINK

1-1/ 2" O.D . TAIL PIECE

36" ( 914mm )

SUGG ESTED

16-1 /2"

(419 mm)

33"

(838 mm)

7-7/ 8"

(200 mm)

10-1 /8"

(257 mm)

9-1/ 2"

(241 mm)

5-3/ 4

(146 mm)

3-1/ 2"

(89m m)

DIA.

1-1/ 2" (38 mm)

RAD. TYP.

4" (1 02mm)

2" (5 1mm)

OPTI ONAL

7-7/ 8"

(200 mm)

8-5/ 8"

(219 mm)

22"

(559 mm)

2-1/ 8" (54m m)

1-1/ 2" (38 mm) DIA. HOLE S TYP.

4" (1 02mm)

SILHOUETTE™ 33"

DOUBLE BOWL SINK

AMERICAST

NOTES:

TOP MOUNT (7145.803/4/5): COUNTERTOP CUTOUT

806 X 527mm WITH 25mm RADIUS (31-3/4 X 20-3/4 WITH 1" RAD.) AT CORNERS.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL AND COUNTERTOP SUPPORTS.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ASME Standard A112.19.4 These measurements are subject to c hange or cancellation. No responsibility is assumed for use of superseded or voided leaet.

NOTES:

TEMPLATE PROVIDED WITH MOUNTING KIT 791326-100 FOR

EXPOSED FAUCET DECK OR UNDERCOUNTER FAUCET DECK COUNTERTOP CUTOUT VARIATIONS.

FITTINGS AND UNDERCOUNTER MOUNTING KIT NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL AND COUNTERTOP SUPPORTS.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ASME Standard A112.19.4 These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.
