American Standard 7024 User Manual

7024

Certified to comply with ANSI A112.18.1

Installation

Instructions

HAMILTON

Centerset Lavator y Faucet with

Congratulations on purchasing your American Standard faucet with the
EverClean finish and Speed Connect Drain, two features found only
on American Standard faucets.

EverClean Finish

• One wipe effortlessly removes spots

• Eliminates the need for cleaners and scrubbing

• Permanent surface protectant remains beautiful
for the life of the faucet

EverClean™ Finish & Speed Connect™ Drain

Speed Connect Drain*

• 1/3 of the parts, installs in 1/3 of the time

• No tools needed

• Never needs adjustment

• Guaranteed to seal properly the first time, every time.

*Your new American Standard faucet is designed to work only with the Speed Connect Drain. Helpful tips for
removing your current drain can be found in the Troubleshooting section of these instructions.

Adjustable Wrench Screwdriver Channel Locks

To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.

Recommended tools

Tubing Cutter

1

INSTALL FAUCET

Turn off hot and cold water supplies before beginning.

Insert FAUCET (1) and CABLE CONNECTOR (2) through
mounting holes of Sink or mounting surface. Fig. A.

Assemble LOCKNUTS (3) onto SHANKS (4) from under
side of Sink. Hand tighten firmly. Fig. B.

Turn off hot and cold water
supplies before beginning.

CAUTION

SINK OR

MOUNTING

SURFACE

POP-UP
CABLE

2

2

1 2 3 4

1

4

3

3

4

(HAND TIGHTEN)

Fig. A.

2

1

FLAT S IDE O F
GRAY LOCK NUT
MUST FAC E UP

3

WHITE FO AM
GASKET
NOT VISI BLE

DRAIN
FLANGE

Fig. B.

M 9 6 8 8 6 7 R e v. 1 . 1

2

Fig. A.

Fig. B.

INSTALL POP-UP DRAIN

INSTALL BLACK GASKET

3

2

Install BLACK CONE GASKET (1) onto DRAIN BODY (2)
from below.

Note: The flat side of the BLACK CONE GASKET (1) must
face down.

4

Drop DRAIN BODY (4) through sink drain
hole. Make sure WHITE FOAM GASKET (5)
is under flange of DRAIN BODY (4). Fig. B.

Note: No plumber’s putty or caulk is required.

The CABLE ATTACHMENT POINT (6) must
face towards the rear of the SINK. Fig. B.

Remove CLEAR PLASTIC COVER (1). Remove
CARDBOARD SPACER (2) from under DRAIN
POP-UP (3). Fig. A.

INSTALL GRAY LOCKNUT

5

Install GRAY LOCKNUT (1) onto DRAIN BODY (2)
from below SINK. Fig. A.

Note: The flat side of the GRAY LOCKNUT (1)
must face up.

Tighten firmly by hand. No tools are required.
Check DRAIN FLANGE in SINK to ensure that
WHITE FOAM GASKET (3) is fully compressed
and not visible. Fig. B.

POP-UP KNOB (1) must be fully down.

POP-UP KNOB

2

REAR OF
SINK

4

5

6

3

1

SINK
DRAIN
HOLE

FLAT S IDE O F GAS KET
MUST FAC E DOW N

1

2

Fig. A. Fig. B.

Fig. A.

2

1

FLAT S IDE O F
GRAY LOCK NUT
MUST FAC E UP

3

WHITE FO AM
GASKET
NOT VISI BLE

DRAIN
FLANGE

Fig. B.

M 9 6 8 8 6 7 R e v. 1 . 1 M 9 6 8 8 6 7 R e v. 1 . 1 M 9 6 8 8 6 7 R e v. 1 . 1

1

2

COMPRESSION
NUT

3/8” COMPRESSION
CONNECTION

COUPLING
NUT

FLEXIBLE

SUPPLIES

3/8 O.D.

BULL-NOSE

RISERS

Thread CABLE CONNECTOR (1) clockwise
onto DRAIN BODY CONNECTION (2) and
hand tighten. Fig. A.

Your new POP-UP DRAIN installation is
now complete. Fig. B.

Note: Tailpeice on pop-up drain is 1-1/4” O.D.
Fig. B.

Fig. A.

ATTACH CABLE CONNECTOR

6

2

1

Operate LIFT KNOB (1) to verify that STOPPER (2) opens and
closes.

Note: If STOPPER (2) does not open and close properly then
refer to the “troubleshooting section” of these instructions.

CHECK OPERATION OF POP-UP

7

1-1/4” O.D.

Fig. B.

1/2" PIPE

THREAD

Connect water supply to FAUCET (1) with 1/2" IPS FLEXIBLE
SUPPLIES (2) or 3/8" O.D. BULL-NOSE RISERS (3).

Use adjustable wrench to tighten connections. Do not over tighten.
Be careful not to kink copper supply when bending. Use tubing
cutter to cut to proper length.

Connect 1-1/4” O.D. tailpiece on POP-UP DRAIN to
waste outlet.

MAKE WATER SUPPLY AND WASTE CONNECTIONS

8

FERRULE

1

2

3

NOTE: FLEXIBLE SUPPLIES OR BULL-NOSE RISERS MUST BE
PURCHASED SEPARATELY.

HOT

COLD

2

2

1

4

1

SERVICE

9

TEST INSTALLED FITTING

With HANDLES (1) in OFF position, turn on WATER
SUPPLIES (2) and check all connections for leaks.

Remove AERATOR (3).

Operate both HANDLES (1) to flush water lines thoroughly.

Replace AERATOR (3).

5

2

3

CHECK DRAIN CONNECTIONS

Operate POP-UP KNOB (4) and fill lavatory with water.
Check that DRAIN STOPPER (5) makes a good seal
and retains water in SINK. If DRAIN STOPPER (5)
does not seal properly, please refer to Troubleshooting
section in these instructions.

Release POP-UP KNOB (4) down and check all drain
connections and "P" trap for leaks. Tighten
if necessary.

90˚

Turn valve to OFF position

Turn INDEX BUTTON (1) “counter-clockwise” and remove.

Remove HANDLE SCREW (2).

Pull off HANDLE (3). Pull off ADAPTER (4).

Remove SPRING CLIP (5). Lift STOP WASHER (6),
turn 90˚ and replace. Replace SPRING CLIP (5).

Replace ADAPTER (4).

Install HANDLE (3) in correct position by adjusting
male teeth on ADAPTER (4) to female teeth in
HANDLE ASSEMBLY (1).

Install HANDLE SCREW (2) and tighten. Thread
INDEX BUTTON (1) clockwise.

5

1

4

2

3

6

11

10

American Standard’s EverClean finish will wipe clean with a soft, dry cloth. A soft cloth with clean
water may also be used, if desired. No additional cleaning products are required.

DO NOT USE: Soaps, acid, polish, abrasives, harsh cleaners, or a cloth with a coarse surface.

EverClean™ Finish
Care Instructions

“P” TRAP

WASTE
OUTLET

To change direction of handle:

Speed Connect™ Drain

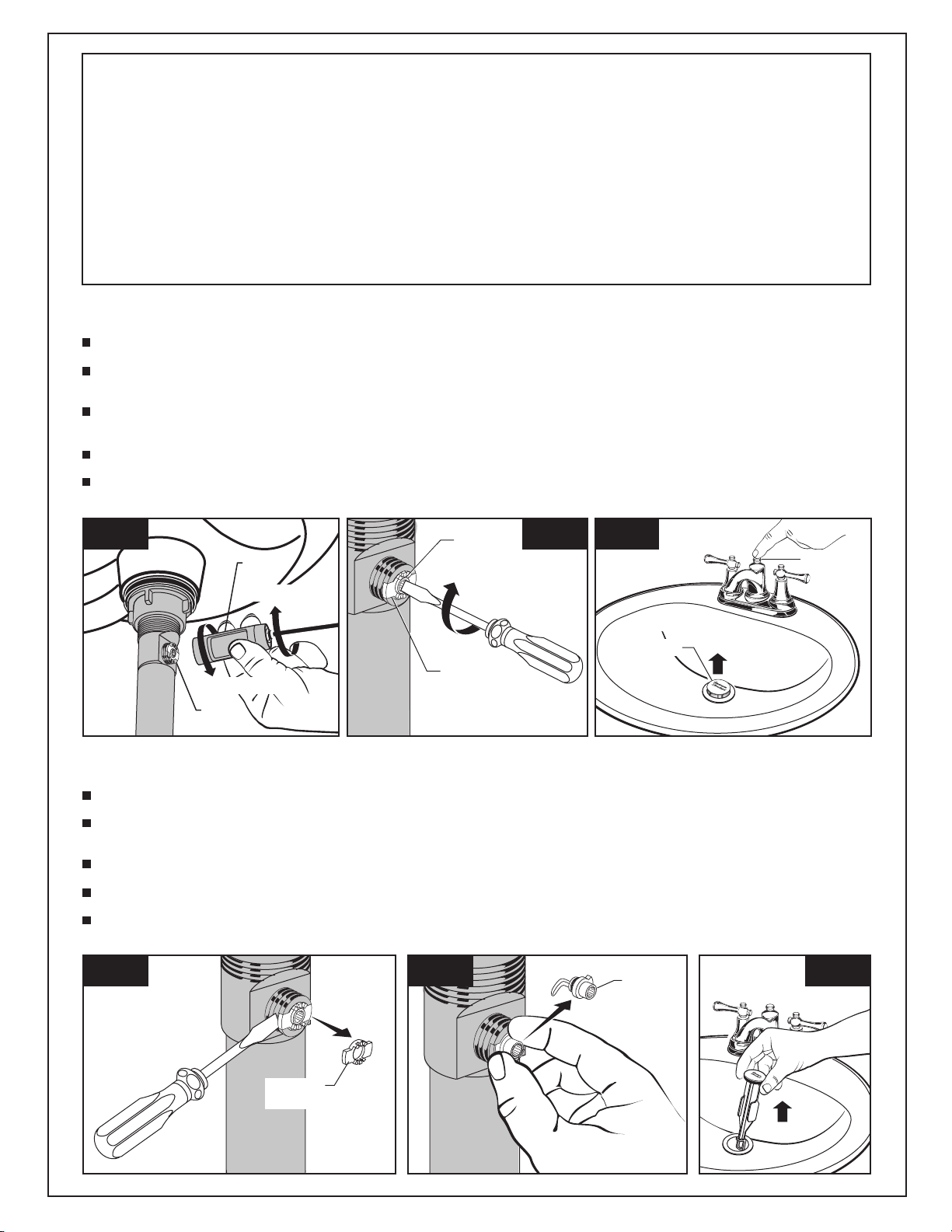

Troubleshooting Guide

1

2

Disconnect the Cable from the Drain by threading the Cable Connector (1) counter-clockwise. Fig. A.

Look at the area on the Drain Body where the Cable was attached and locate the component labeled
as “Cam” and “Cam Cap” in the illustration. Fig. B.

Use fingers or small screwdriver under either side of the Cam Cap to pry it out from the Drain. Fig. D.

Remove the Cam by pulling it straight out while wiggling gently to loosen the Rubber Seal. Fig. E.

The Stopper can now be removed by lifting it out of the Drain. Fig. F.

CAM

CAM CAP

RE-ATTACH

DISCONNECT

CABLE ADJUSTMENT PROCEDURE

If sink does not hold water even though Stopper is in the “down” position:

• Follow CABLE ADJUSTMENT PROCEDURE.

If Stopper does not raise up fully or sink drains too slowly:

• Follow CABLE ADJUSTMENT PROCEDURE.

If you need to remove the Stopper:

• Follow STOPPER REMOVAL PROCEDURE.

If you would like the ability to remove your Stopper simply by lifting it out of the drain:

• Follow STOPPER INSTALLATION PROCEDURE for “Unlocked” mode.

Fig. A. Fig. B.

REMOVE
CAM CAP

REMOVE
CAM

Fig. D. Fig. E.

Disconnect the Cable from the Drain by threading the Cable Connector (1) counter-clockwise. Fig. A.

Look at the area on the Drain Body where the Cable was attached and locate the component labeled as
“Cam” in the illustration. Fig. B.

Use a small screwdriver to rotate the Cam in the clockwise direction as far as it will go. At this point the
Stopper should be in the UP position. Fig. B, C.

Push DOWN on the Lift-Knob to make sure it is fully down. Fig. C.

Re-attach the Cable to the Drain Body Connection (2) by threading the Cable Connector (1) clockwise onto the
Drain Body Connection (2) and hand-tighten. Fig. A.

STOPPER REMOVAL PROCEDURE

LIFT-KNOB

STOPPER

Fig. C.

5 6 7 8

Fig. A.

2

1

FLAT S IDE O F
GRAY LOCK NUT
MUST FAC E UP

3

WHITE FO AM
GASKET
NOT VISI BLE

DRAIN
FLANGE

Fig. B.

Fig. F.

LOOP TOWARD
REAR OF SINK

Fig. G.

LOGO

DRAIN

LOOP TOWARD
FRONT OF SINK

180˚

LOGO

DRAIN

Fig. H.

2

STOPPER INSTALLATION PROCEDURE

Locked Mode:

Look at the Plastic Loop at the bottom of the Stopper and notice
that the Loop is on one side of the Stopper. Fig. G.

To install the stopper in “Locked” mode, insert the Stopper into
the Drain so that the Plastic Loop is facing toward the rear of the
Sink and the American Standard logo is facing front. Rotate
Stopper slightly if necessary so that the Stopper slides all the
way down.Fig. G.

Re-install the Cam into the Drain, rotating the Cam if necessary
to make sure it is fully inserted. Fig. J.

Re-install the Cam Cap, making sure the guide teeth are facing
outward. If the Cam Cap does not “snap” into place, then rotate
the Cam to make sure it is fully inserted. Fig. K.

Re-attach Cable. See “CABLE ADJUSTMENT PROCEDURE” in
Troubling Shooting Guide to complete installation. Stopper will be
in “Locked” mode and not be removable.

Unlocked Mode:

Look at the Plastic Loop at the bottom of the Stopper and notice
that the Loop is on one side of the Stopper. Fig. H.

To install the stopper in “Unlocked” mode, insert the Stopper into
the Drain so that the Plastic Loop is facing toward the front of the
Sink and the American Standard logo is facing rear. Rotate Stopper
slightly if necessary so that the Stopper slides all the way down.
Fig. H.

Re-install the Cam into the Drain, rotating the Cam if necessary
to make sure it is fully inserted. Fig. J.

Re-install the Cam Cap, making sure the guide teeth are facing
outward. If the Cam Cap does not “snap” into place, then rotate
the Cam to make sure it is fully inserted. Fig. K.

Re-attach Cable. See “CABLE ADJUSTMENT PROCEDURE” in
“Troublingshooting Guide” to complete installation. Stopper will be
in “Unlocked” mode and removable.

Fig. J. Fig. K.

INSTALL
CAM CAP

CAM

INSTALL CAM

The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be
removed) or “Unlock” Mode (Stopper is removable).

Locked Mode

(Vandal Proof)

Fig. A.

2

1

FLAT S IDE O F
GRAY LOCK NUT
MUST FAC E UP

3

WHITE FO AM
GASKET
NOT VISI BLE

DRAIN
FLANGE

Fig. B.

LOOP TOWARD
REAR OF SINK

Fig. G.

LOGO

DRAIN

LOOP TOWARD
FRONT OF SINK

180˚

LOGO

DRAIN

Fig. H.

2

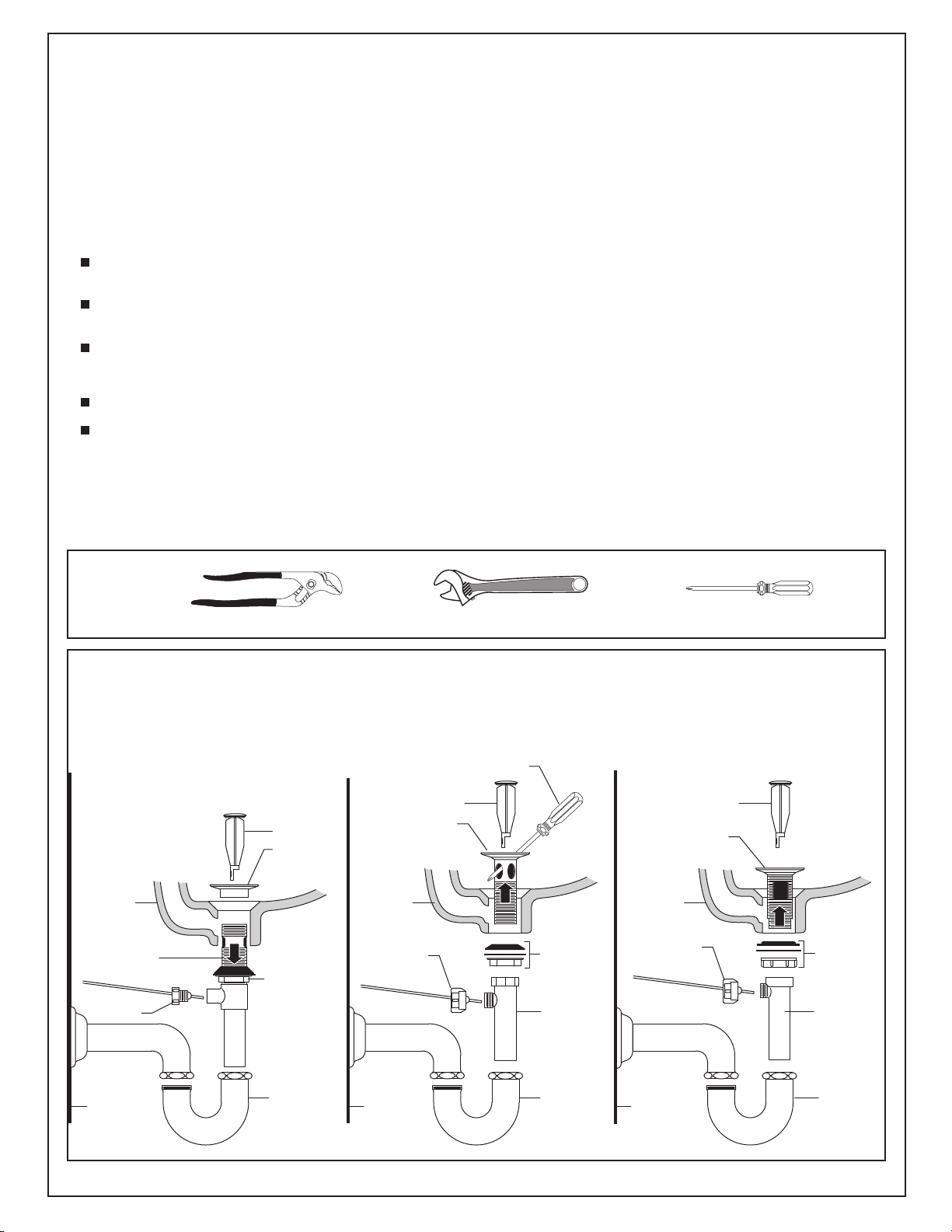

TIPS FOR REMOVING YOUR OLD DRAIN:

Loosen nuts on P-Trap using channel locks. Suggest spraying nuts with spray lubricant to loosen any corrosion or
debris that may have built up. Remove P-Trap half from Tailpiece. Use bucket to catch any residual water in P-trap.

Unthread Pivot Rod Nut from Drain Body and remove. Pull Stopper out from Drain Body.

Loosen Mounting Nut as far down as it will go. Push Drain Body up into Sink and unthread Flange from Drain Body.
Remove Drain Body from below sink.

Unthread Tailpiece from Drain Body.

Loosen and remove Mounting Nut and Gasket on Drain Body using channel locks. Suggest spraying nut with spray
lubricant to loosen any corrosion or debris that may have built up. Push Drain Body up into the Sink and remove.

Note: If Drain body rotates while loosening Mounting Nut, insert a screw driver into overflow hole to prevent Drain
Body from rotating while Mounting Nut is removed.

Adjustable Wrench Phillips ScrewdriverChannel Locks

Required tools

METAL OR PLASTIC TWO PIECE

DRAIN BODY

METAL DRAIN BODY WITH

PLASTIC TAILPIECE

PLASTIC DRAIN BODY

WITH PLASTIC TAILPIECE

UNTHREAD
FLANGE

STOPPER

WHEN DRAIN IS REMOVED FROM ABOVE SINKWHEN DRAIN IS REMOVED

FROM BELOW SINK

MOUNTING
NUT

MOUNTING
NUT and
GASKET

METAL
DRAIN
BODY

PLASTIC

DRAIN BODY

PLASTIC
TAILPIECE

P-TRAP
HALF

PIVOT

ROD NUT

PIVOT

ROD NUT

SINK

STOPPER

SCREWDRIVER

STOPPER

MOUNTING
NUT and
GASKET

METAL OR

PLASTIC

DRAIN BODY

FINISHED
WALL

FINISHED
WALL

FINISHED
WALL

PLASTIC
TAILPIECE

PIVOT

ROD NUT

SINK SINK

P-TRAP
HALF

P-TRAP
HALF

Most existing drains can be removed quickly and easily with only a pair of channel­lock pliers or a wrench. However, there may be situations where it is difficult to
remove your old drain or determine how the drain is disassembled. Depending upon
the existing Drain in your sink, it is either removed from above or below the sink.
The illustrations below show some typical drain installations and how they are
disassembled from the sink.

The following tips can help with some of the more common challenges in drain removal:

For Drains that are removed from below Sink:

For Drains that are removed from above Sink:

2

HAMILTON

Centerset Lavator y Faucet with

EverClean™ Finish & Speed Connect™ Drain

994053-0070A

VALVE

065800-0070A

ATTACHMENT NUT

M923056-0070A

PUTTY PLATE

M916811-YYY0A

HANDLE (LEFT & RIGHT)

066070-YYY0A

AERATOR

918555-0070A

HANDLE SCREW

HOT LINE FOR HELP

For toll-free information and answers to your questions, call:

1 [phone]

Weekdays 8:00 a.m. to 8:00 p.m. EST

IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)

Weekdays 8:00 a.m. to 7:00 p.m. EST

Pr od uct n am es li st ed he re in ar e tr ade ma rk s o f Am er ica n St and ar d Inc .
© Am eri ca n Sta nd ar d Inc . 20 05

M962432-YYY0A

STOPPER
ASSEMBLY

M913208-007A

SPONGE WASHER

M962430-0070A

CAM ASSEMBLY

M962431-0070A

DRAIN MOUNTING KIT

M952430-0070A

CABLE ASSEMBLY

M952410-YYY0A

DRAIN ASSEMBLY

M909610-YYY0A

INDEX BUTTON

M962451-YYY0A

LIFT ROD AND KNOB

7024

918049-0070A

ADAPTER

MODEL NUMBER

CHROME 002

Replace the "YYY" with
appropriate finish code

M 9 6 8 8 6 7 R e v. 1 . 1M 9 6 8 8 6 7 R e v. 1 . 1M 9 6 8 8 6 7 R e v. 1 . 1M 9 6 8 8 6 7 R e v. 1 . 1
