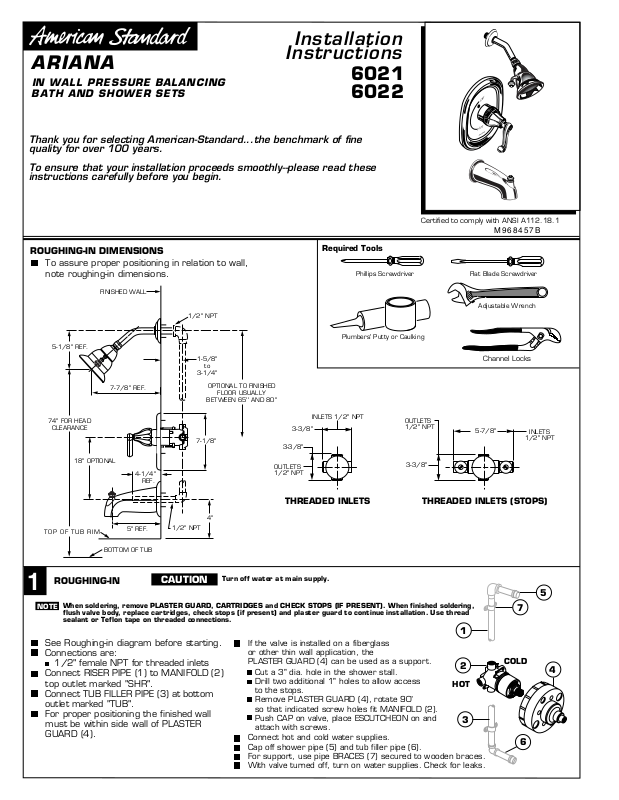

Page 1
Installation
Instructions
ARIANA
IN WALL PRESSURE BALANCING
BATH AND SHOWER SETS
Thank you for selecting American-Standard...the benchmark of fine
quality for over 100 years.
To ensure that your installation proceeds smoothly--please read these
instructions carefully before you begin.
6021
6022
Off
Hot
Certified to comply with ANSI A112.18.1
M968457B
ROUGHING-IN DIMENSIONS
To assure proper positioning in relation to wall,
note roughing-in dimensions.
FINISHED WALL
1/2" NPT
5-1/8" REF.
1-5/8"
to
3-1/4"
OPTIONAL TO FINISHED
BETWEEN 65'' AND 80''
7-1/8"
4"
74" FOR HEAD
CLEARANCE
18" OPTIONAL
TOP OF TUB RIM
7-7/8" REF.
4-1/4"
5" REF.
REF.
1/2" NPT
FLOOR USUALLY
Required Tools
INLETS 1/2" NPT
3-3/8"
3-3/8"
OUTLETS
1/2" NPT
THREADED INLETS
Phillips Screwdriver
Plumbers' Putty or Caulking
OUTLETS
1/2" NPT
3-3/8"
Flat Blade Screwdriver
Adjustable Wrench
Channel Locks
5-7/8"
INLETS
1/2" NPT
THREADED INLETS (STOPS)
BOTTOM OF TUB
ROUGHING-IN
1
NOTE
When soldering, remove PLASTER GUARD, CARTRIDGES and CHECK STOPS (IF PRESENT). When finished soldering,
flush valve body, replace cartridges, check stops (if present) and plaster guard to continue installation. Use thread
sealant or Teflon tape on threaded connections.
CAUTION
See Roughing-in diagram before starting.
Connections are:
1/2" female NPT for threaded inlets
Connect RISER PIPE (1) to MANIFOLD (2)
top outlet marked "SHR".
Connect TUB FILLER PIPE (3) at bottom
outlet marked "TUB".
For proper positioning the finished wall
must be within side wall of PLASTER
GUARD (4).
Turn off water at main supply.
If the valve is installed on a fiberglass
or other thin wall application, the
PLASTER GUARD (4) can be used as a support.
Cut a 3" dia. hole in the shower stall.
Drill two additional 1" holes to allow access
to the stops.
Remove PLASTER GUARD (4), rotate 90˚
so that indicated screw holes fit MANIFOLD (2).
Push CAP on valve, place ESCUTCHEON on and
attach with screws.
Connect hot and cold water supplies.
Cap off shower pipe (5) and tub filler pipe (6).
For support, use pipe BRACES (7) secured to wooden braces.
With valve turned off, turn on water supplies. Check for leaks.
1
2
HOT
5
7
COLD
4
3
6
Page 2
INSTALL TRIM
2
CAUTION: Protect finish on SHOWER ARM,
SHOWER HEAD and TUB SPOUT when installing.
When finished tiling the wall, remove PLASTER GUARD (A)
and turn off water supply.
Push CAP (1) over VALVE CARTRIDGE (2).
INSTALL HANDLE
3
Find correct position of HANDLE (1) and push
HANDLE (1) onto VALVE STEM (4).
Install HANDLE SCREW (2) and push in INDEX
CAP (3).
Mount ESCUTCHEON (3) and gasket to valve body with SCREWS (4).
Remove PIPE CAPS (5) from shower pipe and tub filler pipe.
Install SHOWER ARM with FLANGE (6) and SHOWER HEAD (7).
Install TUB FILLER SPOUT with FLANGE (8).
SHOWER ARM
FLANGE
6
7
5
A
2
1
4
Off
3
Check proper operation of HANDLE (1).
Turn on water supply on and test installed fitting.
Operate valve and diverter spout.
Off
4
1
2
3
Hot
t
Ho
8
SPOUT FLANGE
ADJUST HOT LIMIT STOP
4
5
By restricting HANDLE rotation and limiting the amount of hot
water allowed to mix with the cold, the HOT LIMIT SAFETY
STOP (1) reduces risk of accidental scalding. To set the maximum
hot water temperature of your faucet, all you need to do
is adjust the setting on the HOT LIMIT SAFETY STOP (1).
Turn CARTRIDGE STEM (2) to the OFF position (coldest setting)
before making adjustment to HOT LIMIT STOP (1). Use a
flat blade screwdriver to pry free the HOT LIMIT SAFETY STOP (1).
Pull forward and rotate counterclockwise one number to limit hot
water temperature. Use ARROW (3) on CARTRIDGE (4) and
NUMBERS (5) on HOT LIMIT STOP (1) for indication.
4
(Larger Numbers)
0 1 3 5 7 9 11 13 15
3
1
0
1
5
1
3
1
1
9
7
5
3
1
COLDER
3
9
7
1
5
1
3
1
5
1
5
1
4
2
3
2
HOTTER
(Smaller Numbers)
0 1 3 5 7 9 11 13 15
5
1
5
1
3
1
1
9
7
5
3
1
1
M968457B
Page 3
TO GAIN ACCESS TO VALVE FOR SERVICING
5
Pull INDEX CAP, unscrew HANDLE SCREW and pull HANDLE off valve stem.
Remove two SCREWS holding ESCUTCHEON and remove ESCUTCHEON.
Remove COVER by pulling straight out.
Shut off water supply by either closing off main water supply, or closing off the hot and cold CHECK STOPS on valve.
VALVE LEAKS WHEN SHUT OFF
Remove CARTRIDGE (1) by removing CARTRIDGE SCREWS (2). Remove three SCREWS (3) from FIXATION RING (4) and
pull out PRESSURE BALANCING (5) unit.
Clean SEALS (9) on base of CARTRIDGE (1). Check base of PRESSURE BALANCING UNIT (5) and clean O-RINGS (6). Remove
CAPS (7) and check O-RINGS on inside of CAPS (7). Clean inside sealing surfaces of VALVE BODY (8).
Re-assemble PRESSURE BALANCING UNIT (5) and CARTRIDGE (1). Tighten all screws.
Turn on water supply and see above for installing TRIM and HANDLE.
UNABLE TO MAINTAIN CONSTANT TEMPERATURE
Remove PRESSURE BALANCE UNIT (5).
Remove CAPS (7) and clean valve thoroughly.
Examine balancing unit and check condition of O-ring on end of piston. Piston should move back and forth. Order Repair
Part M952100-0070A if balancing unit is defective.
Replace CAPS (7) and install PRESSURE BALANCE UNIT (5). Make sure inlets line up with two holes in bottom of casting.
Top flange should butt-up against top of casting.
BACK TO BACK INSTALLATION
Remove PRESSURE BALANCE UNIT (5). Rotate PRESSURE BALANCE UNIT (5) 180˚ so that the inlets face up and the
large outlet port faces down.
Push PRESSURE BALANCE UNIT (5) in casting make sure inlets line up with holes in bottom of casting. Top flange should
butt up against top of casting.
Reassemble FIXATION RING (4) and CARTRIDGE (1).
6
4
1
8
7
5
3
9
2
LARGE OUTLET
5
INLETS
ROTATE 180
BACK TO BACK INSTALLATION
˚
CARE INSTRUCTIONS:
6
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A CLOTH WITH
A COARSE SURFACE.
M968457B
Page 4
M962286-YYY0A
SHOWER ARM AND ESCUTCHEON
WITH SEALS
M952100-0070A
PRESSURE BALANCING UNIT
M961854-0070A
FIXATION RING WITH SCREWS
ARIANA
PRESSURE BALANCING
BATH AND SHOWER SETS
MODEL NUMBER
6021
6022
M953567-YYY0A
SHOWER HEAD
Replace the "YYY" with
appropriate finish code
CHROME 002
BRUSHED BRASS 275
SATIN 295
A923611-0070A
HOT LIMIT STOP
027816-0070A
1/2" NPT PLUG
A954440-0070A
M909732-YYY0A
SPOUT ESCUTCHEON
CARTRIDGE
023603-0070A
CARTRIDGE SCREWS
M907051-YYY0A
CARTRIDGE CAP
1
5
1
3
1
1
9
7
5
3
1
078016-YYY0A
ESCUTCHEON SCREWS
M962293-YYY0A
ESCUTCHEON KIT
Off
WITH SCREWS
M916529-YYY0A
LEVER HANDLE
Hot
M950225-YYY0A
DIVERTER SPOUT (IPS)
A918657-0070A
HANDLE SCREW
M907024-YYY2A
INDEX BUTTON (ARROW)
M968457B
For toll-free information and answers to your questions, call:
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Product names listed herein are trademarks of American Standard Inc.
© American Standard Inc. 2004
HOT LINE FOR HELP
1 (800) 442-1902
Weekdays 8:00 a.m. to 8:00 p.m. EST
Weekdays 8:00 a.m. to 7:00 p.m. EST
