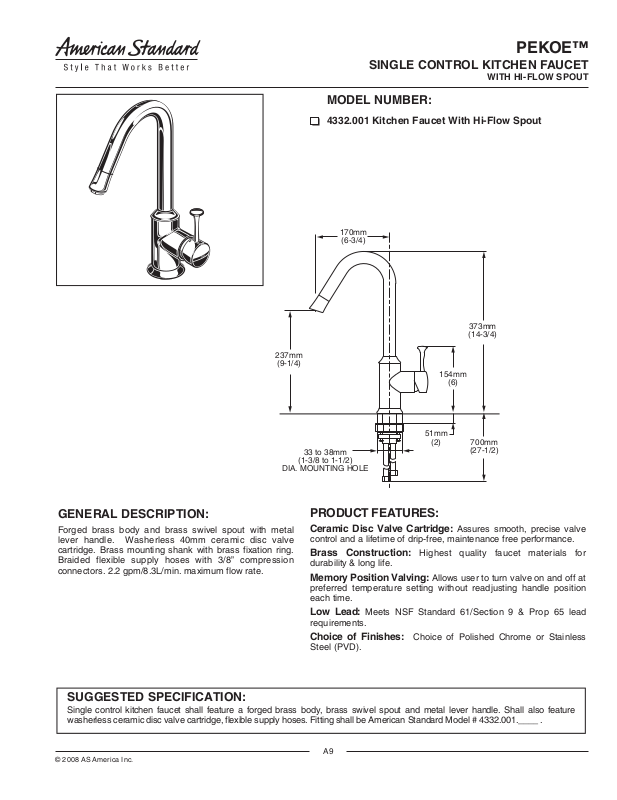

American Standard 4332.001 User Manual

SINGLE CONTROL KITCHEN FAUCET

MODEL NUMBER:

4332.001 Kitchen Faucet With Hi-Flow Spout

GENERAL DESCRIPTION:

Forged brass body and brass swivel spout with metal lever handle. Washerless 40mm ceramic disc valve cartridge. Brass mounting shank with brass fixation ring. Braided flexible supply hoses with 3/8” compression connectors. 2.2 gpm/8.3L/min. maximum flow rate.

SUGGESTED SPECIFICATION:

Single control kitchen faucet shall feature a forged brass body, brass swivel spout and metal lever handle. Shall also feature washerless ceramic disc valve cartridge, flexible supply hoses. Fitting shall be American Standard Model # 4332.001.____ .

PRODUCT FEATURES:

Ceramic Disc Valve Cartridge: Assures smooth, precise valve

control and a lifetime of drip-free, maintenance free performance.

Brass Construction: Highest quality faucet materials for

durability & long life.

Memory Position Valving:

Allows user to turn valve on and off at preferred temperature setting without readjusting handle position each time.

Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead

requirements.

Choice of Finishes: Choice of Polished Chrome or Stainless

Steel (PVD).

373mm

(14-3/4)

154mm

(6)

237mm

(9-1/4)

170mm

(6-3/4)

700mm

(27-1/2)

51mm

(2)

33 to 38mm

(1-3/8 to 1-1/2)

DIA. MOUNTING HOLE

PEKOE™

WITH HI -FLOW SPOUT

PEKOE™

4332.001

CODES AND STANDARDS

These products meet or exceed the following codes and standards:

ANSI A117.1 ASME A112.18.1 NSF 61/Section 9 CSA B125

FLOW RATE*

GALLONS PER MINUTE

I N L E T P R ES S U R E ( P S I )

*Flow rates shown are for mixed hot and cold.

0.0

0.5

1.0

1.5

2.0

2.5

3.0

10080604020

Product Number

Description

Finish Options

PVD

Stainless

Steel

075

Polished

Chrome

002

Meets the American Disabilities Act Guidelines and ANSI A117.1 Requirements for the physically challenged.

Hi-Flow Kitchen Faucet.

SINGLE CONTROL KITCHEN FAUCET

WITH HI -FLOW SPOUT
