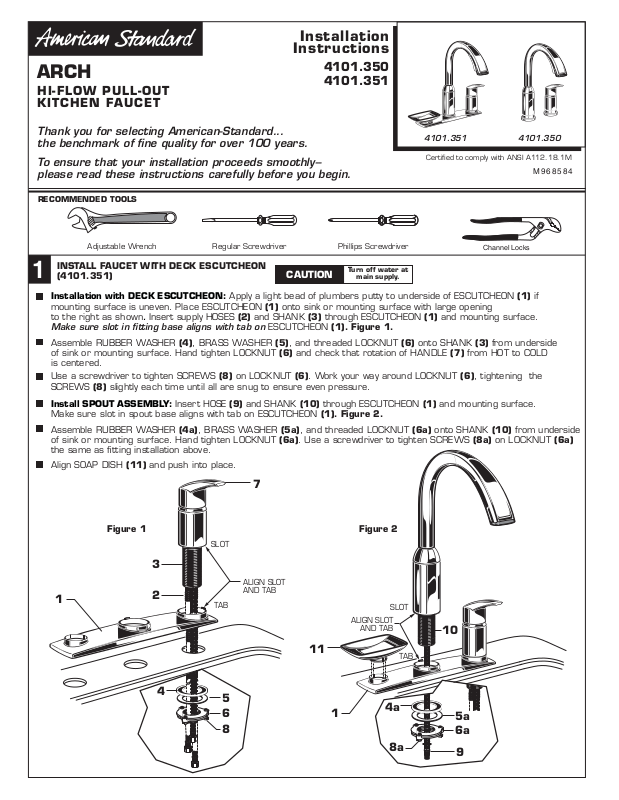

Page 1
Installation
Instructions
ARCH
4101.350
4101.351
HI-FLOW PULL-OUT
KITCHEN FAUCET
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
RECOMMENDED TOOLS
Adjustable Wrench Regular Screwdriver Phillips Screwdriver
INSTALL FAUCET WITH DECK ESCUTCHEON
1
(4101.351)
Installation with DECK ESCUTCHEON: Apply a light bead of plumbers putty to underside of ESCUTCHEON (1) if
mounting surface is uneven. Place ESCUTCHEON (1) onto sink or mounting surface with large opening
to the right as shown. Insert supply HOSES (2) and SHANK (3) through ESCUTCHEON (1) and mounting surface.
Make sure slot in fitting base aligns with tab on ESCUTCHEON (1). Figure 1.
Assemble RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6) onto SHANK (3) from underside
of sink or mounting surface. Hand tighten LOCKNUT (6) and check that rotation of HANDLE (7) from HOT to COLD
is centered.
Use a screwdriver to tighten SCREWS (8) on LOCKNUT (6). Work your way around LOCKNUT (6), tightening the
SCREWS (8) slightly each time until all are snug to ensure even pressure.
Install SPOUT ASSEMBLY: Insert HOSE (9) and SHANK (10) through ESCUTCHEON (1) and mounting surface.
Make sure slot in spout base aligns with tab on ESCUTCHEON (1). Figure 2.
Assemble RUBBER WASHER (4a), BRASS WASHER (5a), and threaded LOCKNUT (6a) onto SHANK (10) from underside
of sink or mounting surface. Hand tighten LOCKNUT (6a). Use a screwdriver to tighten SCREWS (8a) on LOCKNUT (6a)
the same as fitting installation above.
Align SOAP DISH (11) and push into place.
CAUTION
Turn off water at
main supply.
4101.351 4101.350
Certified to comply with ANSI A112.18.1M
M968584
Channel Locks
7
Figure 1 Figure 2
SLOT
3
ALIGN SLOT
1
2
4
TAB
5
6
8
AND TAB
11
1
ALIGN SLOT
AND TAB
4a
SLOT
TAB
8a
10
5a
6a
9
Page 2
1a
INSTALL FAUCET WITHOUT ESCUTCHEON PLATE
(4101.115 with soap dish) (4101.350 less soap dish)
Insert SEAL WASHER (1) into ESCUTCHEON (2). Place ESCUTCHEON (2) onto sink or mounting surface. Insert supply
HOSES (3) and SHANK (4) through ESCUTCHEON (2) and mounting surface.Make sure slot in fitting base aligns with
tab on ESCUTCHEON (2). Figure 1.
Assemble RUBBER WASHER (5), BRASS WASHER (6) and threaded LOCKNUT (7) onto SHANK (4) from underside
of sink or mounting surface. Hand tighten LOCKNUT (7) and check that rotation of HANDLE (8) from HOT to COLD
is centered.
Use a screwdriver to tighten SCREWS (9) on LOCKNUT (7). Work your way around LOCKNUT (7), tightening the
SCREWS (9) slightly each time until all are snug to ensure even pressure.
Install SPOUT ASSEMBLY: Insert SEAL WASHER (1a) into ESCUTCHEON (2a). Insert HOSE (10) and SHANK (11)
through ESCUTCHEON (2a) and mounting surface. Make sure slot in spout base aligns with tab on ESCUTCHEON (2a).
Figure 2.
Assemble RUBBER WASHER (5a), BRASS WASHER (6a), and threaded LOCKNUT (7a) onto SHANK (11) from underside
of sink or mounting surface. Hand tighten LOCKNUT (7a). Use a screwdriver to tighten SCREWS (9a) on LOCKNUT (7a)
the same as fitting installation above.
(4101.115 with soap dish) Push SOAP DISH (11) into SOAP DISH SHANK (12). Insert SOAP DISH ASSEMBLY into
mount hole. From underside of counter assembly LOCKNUT (13) onto SOAP DISH SHANK (12).
Align SOAP DISH (11) and tighten LOCKNUT (13).
8
Figure 1
4
3
2
1
Figure 2
SLOT
ALIGN SLOT
AND TAB
TAB
ALIGN SLOT
AND TAB
SLOT
11
11
TAB
12
5
6
1a
2a
7
9
13
5a
9a
6a
7a
10
MAKE WATER SUPPLY CONNECTIONS
2
Turn off hot and cold water supplies before beginning.
Connect FLEXIBLE SUPPLIES (1, 2) directly to wall supplies. Connection on fitting
supplies are 3/8" compression. Connect left supply (Marked with a Red Stripe)
to Hot and right supply (Marked with Blue Stripe) to Cold wall supply. Use adjustable
wrench to tighten connections. Do not over tighten.
Faucet supplies are 21" long from faucet base.
Note: If additional supply length is required, installer must purchase
those parts separately.
Important: If SUPPLY HOSES (1, 2) are too long, loop as illustrated to avoid kinking.
2
1
HOT
COLD
M968584
Page 3

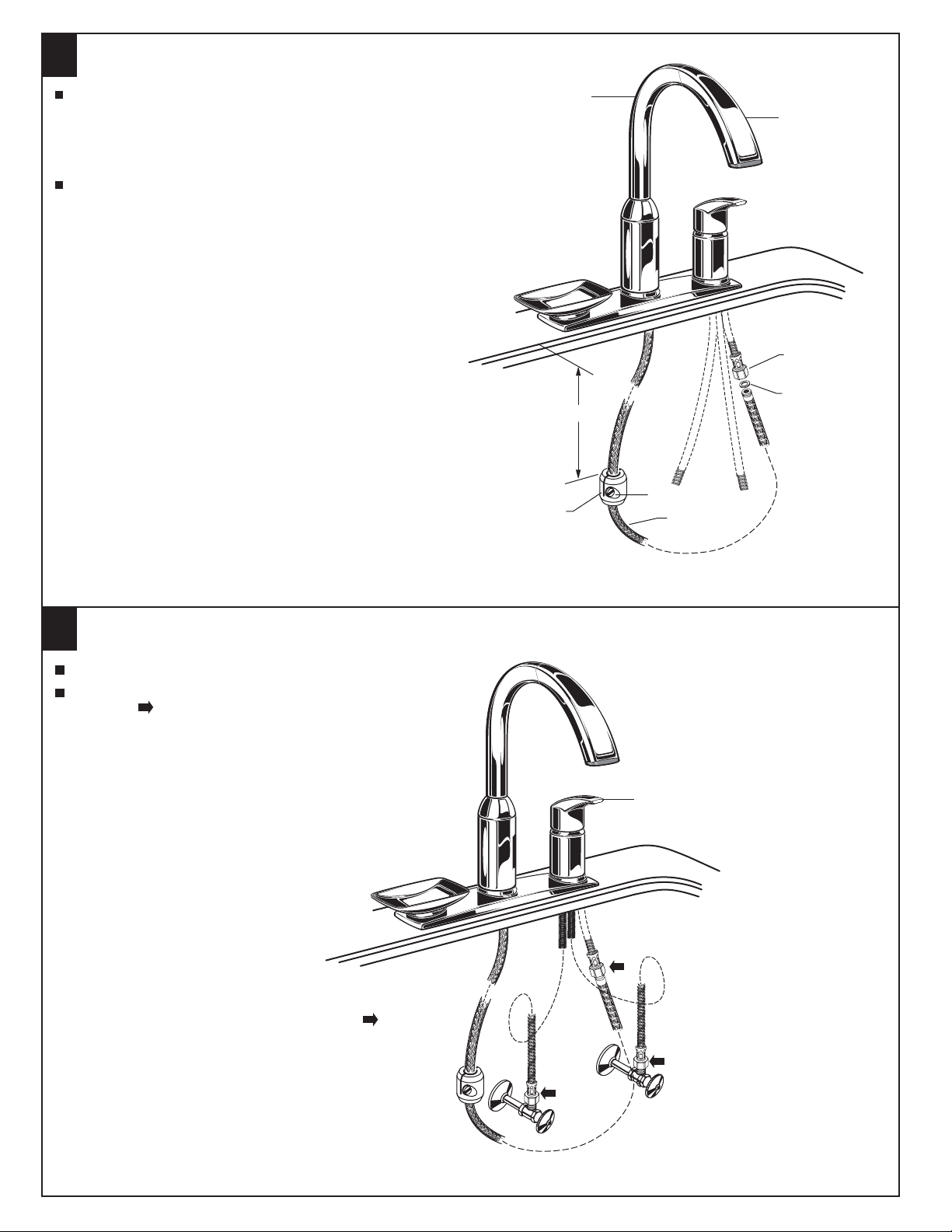

CONNECT SPRAY HOSE AND INSTALL WEIGHTS
3
With PULL-OUT SPRAY (1) seated in SPOUT (2),
install WEIGHTS (3) onto HOSE (4) using two
SCREWS (5). Locate the WEIGHTS (3) two feet (2')
from the underside of the sink deck.
Tighten SCREWS (5) firmly.
Make sure SEAL WASHER (7) is installed in COUPLING
NUT (6). Connect threaded end of HOSE (4) to SPRAY HOSE
COUPLING NUT (6) from fitting. Use wrench to tighten.
3
2
1
6
7
24"
5
4
CHECK CONNECTIONS FOR LEAKS.
4
Move HANDLE (1) down into "off" position.
Turn on water supplies and check connections
for leaks
.
CHECK CONNECTIONS
FOR LEAKS
1
M968584
Page 4

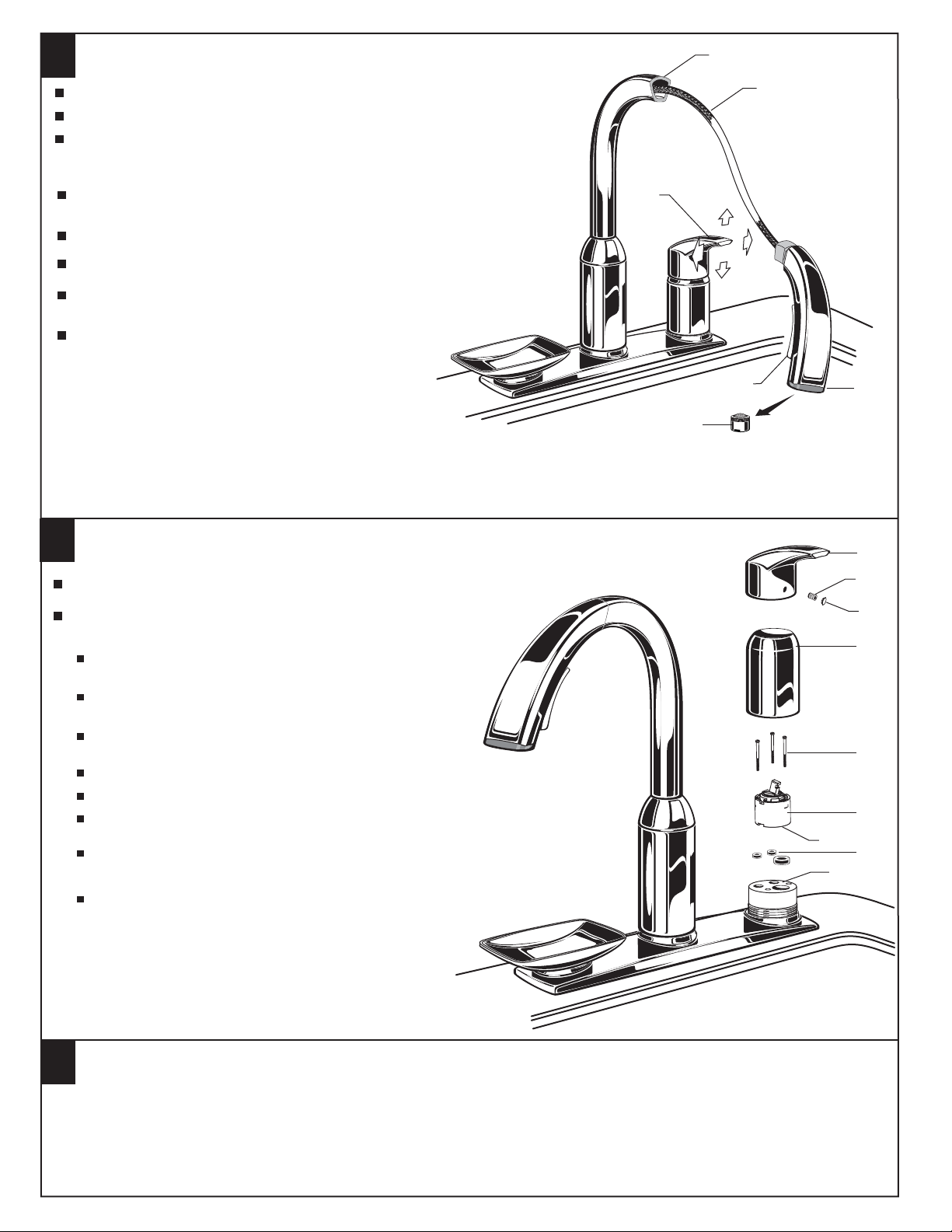

TEST INSTALLED FAUCET
5
4
Move HANDLE (1) down into "off" position.
Remove AERATOR (2).
With HANDLE (1) down in "off" position, pull HAND SPRAY (3)
from SPOUT (4). SPRAY (HOSE (5) should pull approximately 2 feet
and direct open SPRAY END (3) into sink.
Operate handle up and down, in COLD and HOT positions,
to flush water lines thoroughly.
Replace AERATOR (2). Place HAND SPRAY (3) back into FAUCET (4).
Check HAND SPRAY (3) operation:
With faucet on push BUTTON (6) for a broad cleansing
spray. BUTTON (6) will lock into this position.
To unlock push opposite end of BUTTON (6). Faucet will
return to standard spray.
SERVICE
6
If faucet drips, operate HANDLE several times from "off" to "on." Do not
apply excessive force.
Clogged CARTRIDGE outlets or inlets may cause reduced flow.
To clean, first turn off water supply then:
Remove INDEX BUTTON (1), loosen HANDLE SCREW (2)
and remove HANDLE (3).
Unthread ESCUTCHEON CAP (4). Unthread three
MOUNTING SCREWS (5).
Lift CARTRIDGE (6) off MANIFOLD (7) and remove
CARTRIDGE SEALS (8).
Clean MANIFOLD (7), CARTRIDGE (6) ports and SEALS (8).
Place SEALS (8) into CARTRIDGE PORTS (6a).
Place CARTRIDGE (6) onto MANIFOLD (7) and tighten MOUNTING
SCREWS (5) alternately.
Replace ESCUTCHEON CAP (4), HANDLE (3), tighten HANDLE
SCREW (1) and install INDEX BUTTON (2).
Test fitting.
5
1
6
3
2
3
2
1
4
5
6
6a
8
7
CARE INSTRUCTIONS:
7
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
M968584
Page 5

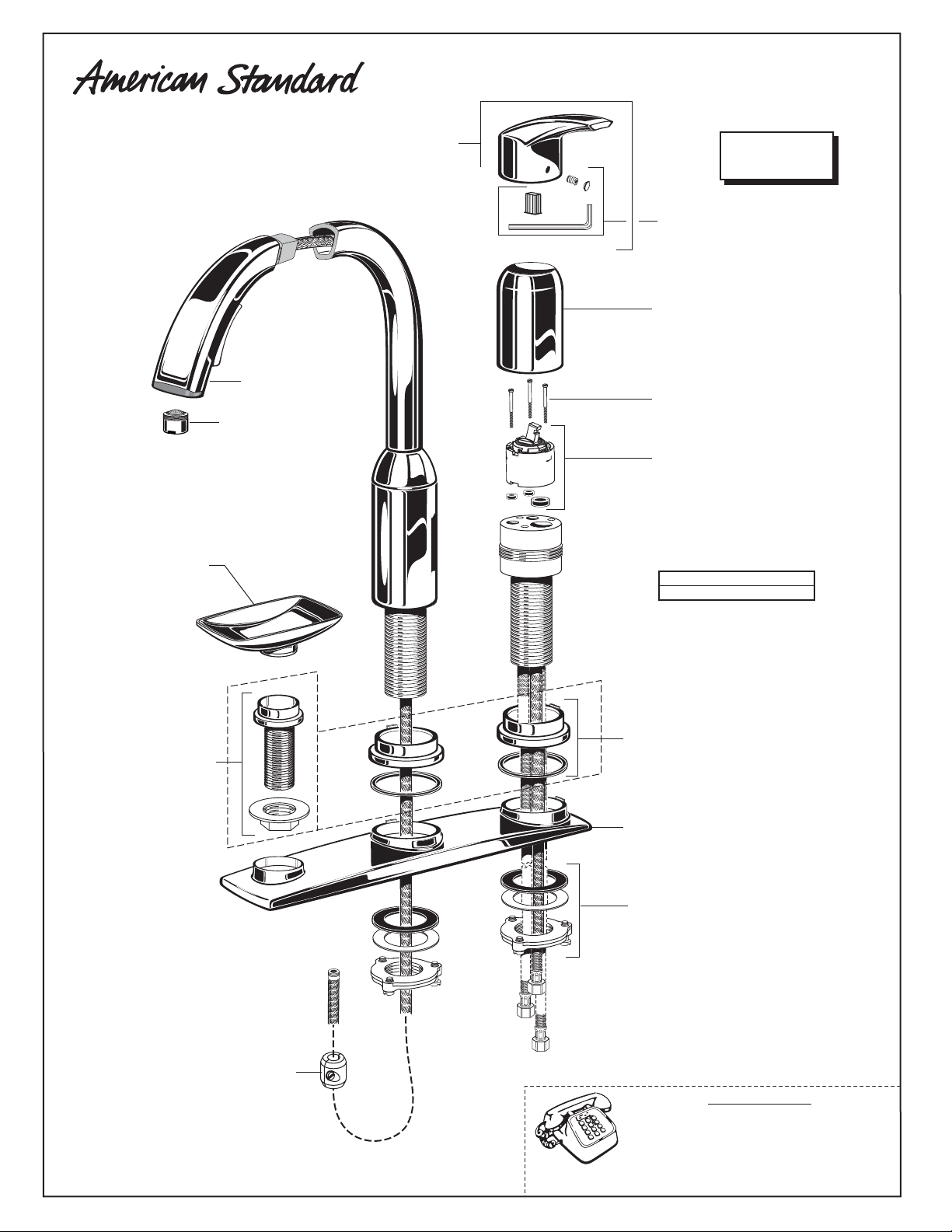

M953173-YYY0A
SPRAY
M962715-YYY0A
AERATOR
M962717-YYY0A
HANDLE KIT
ARCH
HI-FLOW PULL-OUT
KITCHEN FAUCET
MODEL NUMBERS
4101.350
4101.351
M962716-0070A
BUTTON AND
SCREW KIT
M907305-YYY0A
CARTRIDGE COVER
M918521-0070A
CARTRIDGE SCREWS
A951470-0070A
CARTRIDGE
M962723-0070A
SOAP DISH
M962724-YYY0A
SOAP DISH HOLDER
(4101.115 ONLY)
Replace the "YYY" with
appropriate finish code
CHROME
STAINLESS STEEL
M962725-YYY0A
ESCUTCHEON KIT
(4101.115, 4101.350)
M962726-YYY0A
ESCUTCHEON KIT
WITH PUTTY PLATE
(4101.351)
060467-0070A
MOUNTING KIT
002
075
M968584
050448-0070A
WEIGHTS
For toll-free information and answers to your questions, call:
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Product names listed herein are trademarks of American Standard Inc.
© AS America, Inc. 2008
HOT LINE FOR HELP
1-800-442-1902
Weekdays 8:00 a.m. to 6:00 p.m. EST
Weekdays 8:00 a.m. to 7:00 p.m. EST
IN MEXICO 01-800-839-12-00
