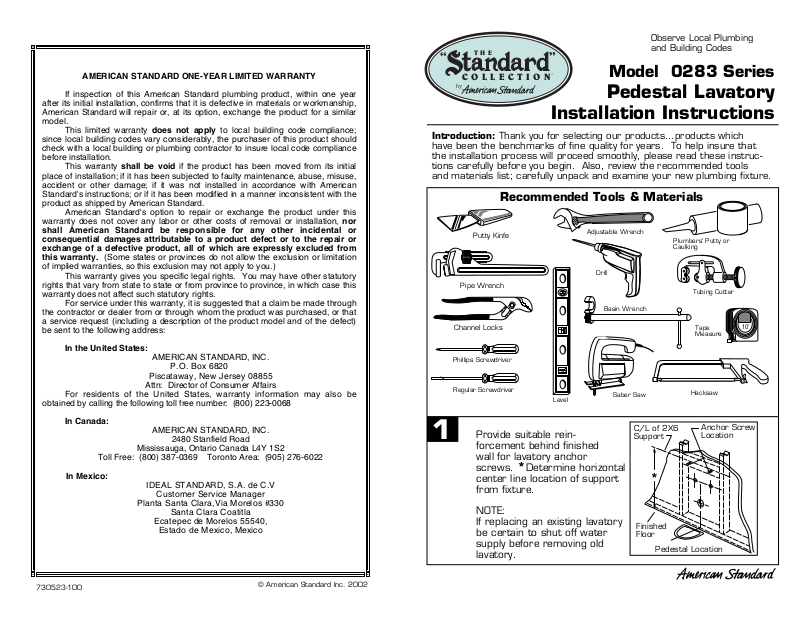

Model 0283 Series

and Building Codes

Pedestal Lavatory

Installation Instructions

Introduction: Thank you for selecting our products...products which

have been the benchmarks of fine quality for years. To help insure that
the installation process will proceed smoothly, please read these instruc­tions carefully before you begin. Also, review the recommended tools
and materials list; carefully unpack and examine your new plumbing fixture.

Recommended Tools & Materials

Putty Kinfe

Pipe Wrench

Channel Locks

Phillips Screwdriver

Regular Screwdriver

Level

Adjustable Wrench

Drill

Basin Wrench

Saber Saw

Plumbers' Putty or
Caulking

Tubing Cutter

Tape
Measure

Hacksaw

10'

In Canada:

In Mexico:

730523-100

AMERICAN STANDARD, INC.

2480 Stanfield Road

Mississauga, Ontario Canada L4Y 1S2

Toll Free: [phone] Toronto Area: [phone]

IDEAL STANDARD, S.A. de C.V

Customer Service Manager

Planta Santa Clara,Via Morelos #330

Santa Clara Coatitla

Ecatepec de Morelos 55540,

Estado de Mexico, Mexico

© American Standard Inc. 2002

1

Provide suitable rein­forcement behind finished
wall for lavatory anchor
screws. *Determine horizontal
center line location of support
from fixture.

NOTE:
If replacing an existing lavatory
be certain to shut off water
supply before removing old
lavatory.

C/L of 2X6
Support

*

Finished
Floor

Pedestal Location

Anchor Screw
Location

2

3

4

Place lavatory and pedestal into installed position. Level and
square the lavatory and pedestal assembly. Mark lavatory and
pedestal screw locations through the mounting holes.

Remove lavatory and pedestal from
installed position. Drill pilot holes
for lavatory and pedestal anchor
screws.

Use the kit provided for lavatory
and pedestal installation.

ANCHOR SCREW INSTALLATION

Install lavatory anchor
screws leaving 1-7/8"
threaded end exposed
as illustrated.

IMPORTANT: Final assembly
of nut and washer method
shown for reference only.
(See steps 7 and 8).

Lavatory

Anchor
Screw

Nut

Washer

1-7/8"

6

7

Return the fitted lava­tory and pedestal to the
installed position. Con­nect trap to drain assem­bly hand tight to check
alignment. It may be ne­cessary to cut off part
of the tailpiece (area "B")
and/or part of the drain
elbow of the trap (area "C").

Secure lavatory to wall as
shown in Step 4. Install
washers and hand tighten
nuts or lag bolts.
Level and square the unit.
Connect hot and cold supply
lines to the shut-off valves.
Tighten trap joints for water­tight assembly.

C

B

Shut-off
Valves

5

730523-100

Following manufacturer's
instructions, install faucet
and drain assembly (not
included). Be certain to
apply a bead of sealing putty
on the underside of the drain
(area "A") in order to ensure
a watertight seal between the
lavatory and drain. Remove
excess putty after installing
drain on lavatory.

A

8

Install pedestal screw.
Securely tighten lavatory
anchor nuts.

Note: Space constraints may
dictate method of fastening
pedestal to floor.

Rear
View

Pedestal

Screw
