ROUND FRONT 14" ROUGH-IN TOILET
356m m
(14)
749m m
(29- 1/2)
C/L OF OUT LET
133m m
(5-1 /4)
FINI SHED W ALL
279m m
(11)
19mm ± 6mm
(3/4 ± 1/4 )
381m m
(15)
419m m
(16- 1/2)
C/L OF SEA T POST HOLES
140m m (5-1 /2 CEN TERS)
305m m
(12)
178mm
(7)
16mm
(5/8 )
FINI SHED
FLOO R
762m m
(30)
241m m
(9-1 /2)
152m m
(6)
495m m
(19- 1/2)
222m m
(8-3 /4)
SUPP LY
AS
REQ' D
381m m
(15)
*

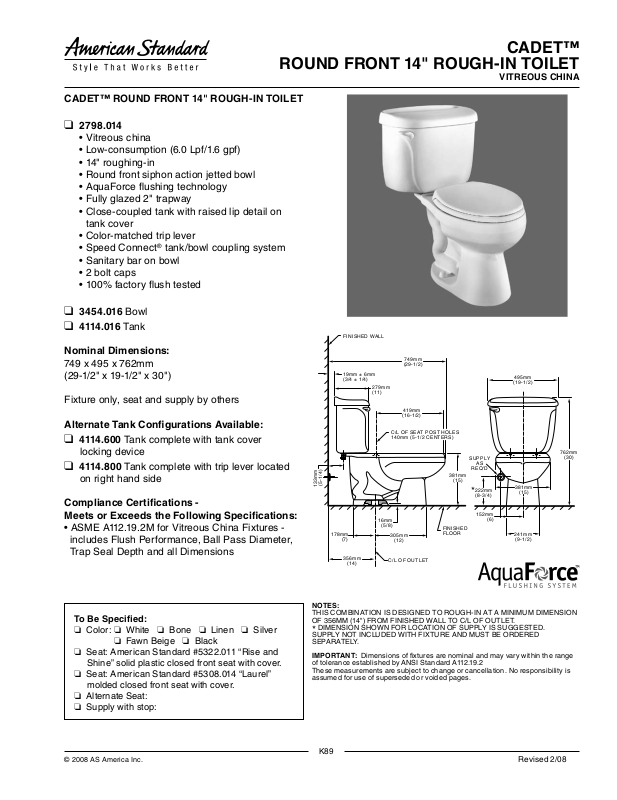

CADET™ ROUND FRONT 14" ROUGH-IN TOILET
❑ 2798.014
• Vitreous china
• Low-consumption (6.0 Lpf/1.6 gpf)
• 14" roughing-in
• Round front siphon action jetted bowl
• AquaForce ushing technology
• Fully glazed 2" trapway
• Close-coupled tank with raised lip detail on
tank cover
• Color-matched trip lever
• Speed Connect® tank/bowl coupling system
• Sanitary bar on bowl
• 2 bolt caps
• 100% factory ush tested
❑ 3454.016 Bowl
❑ 4114.016 Tank
CADET™
VITREOUS CHINA
Nominal Dimensions:
749 x 495 x 762mm
(29-1/2" x 19-1/2" x 30")
Fixture only, seat and supply by others
Alternate Tank Congurations Available:
❑ 4114.600 Tank complete with tank cover
locking device
❑ 4114.800 Tank complete with trip lever located
on right hand side
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2M for Vitreous China Fixtures includes Flush Performance, Ball Pass Diameter,
Trap Seal Depth and all Dimensions
To Be Specied:
❏ Color: ❏ White ❏ Bone ❏ Linen ❏ Silver
❏ Fawn Beige ❏ Black
❏ Seat: American Standard #5322.011 “Rise and
Shine” solid plastic closed front seat with cover.
❏ Seat: American Standard #5308.014 “Laurel”
molded closed front seat with cover.
❏ Alternate Seat:
❏ Supply with stop:
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION
OF 356MM (14") FROM FINISHED WALL TO C/L OF OUTLET.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
SUPPLY NOT INCLUDED WITH FIX TURE AND MUST BE ORDERED
SEPARATELY.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range
of tolerance established by ANSI Standard A112.19.2
These measurements are subject to c hange or cancellation. No responsibility is
assumed for use of superseded or voided pages.
© 2008 AS America Inc.
K89
Revised 2/08
