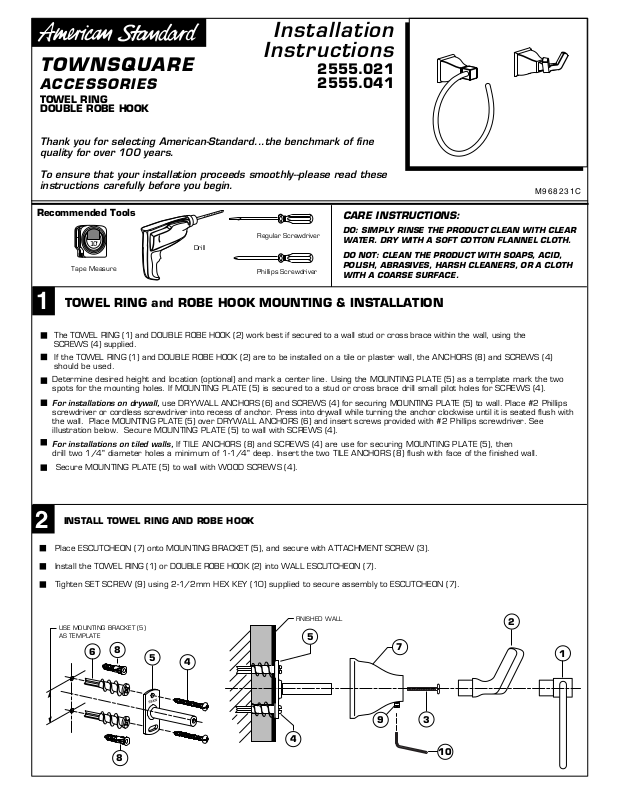

American Standard 2555.021, 2555.041 User Manual

Installation

Instructions

TOWNSQUARE

ACCESSORIES

TOWEL RING DOUBLE ROBE HOOK

Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years.

To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin.

2555.021

2555.041

M968231C

Recommended Tools

10'

Tape Measure

TOWEL RING and ROBE HOOK MOUNTING & INSTALLATION

The TOWEL RING (1) and DOUBLE ROBE HOOK (2) work best if secured to a wall stud or cross brace within the wall, using the SCREWS (4) supplied.

If the TOWEL RING (1) and DOUBLE ROBE HOOK (2) are to be installed on a tile or plaster wall, the ANCHORS (8) and SCREWS (4) should be used.

Determine desired height and location (optional) and mark a center line. Using the MOUNTING PLATE (5) as a template mark the two spots for the mounting holes. If MOUNTING PLATE (5) is secured to a stud or cross brace drill small pilot holes for SCREWS (4).

For installations on drywall,

screwdriver or cordless screwdriver into recess of anchor. Press into drywall while turning the anchor clockwise until it is seated flush with the wall. Place MOUNTING PLATE (5) over DRYWALL ANCHORS (6) and insert screws provided with #2 Phillips screwdriver. See illustration below. Secure MOUNTING PLATE (5) to wall with SCREWS (4).

For installations on tiled walls,

drill two 1/4" diameter holes a minimum of 1-1/4" deep. Insert the two TILE ANCHORS (8) flush with face of the finished wall.

Secure MOUNTING PLATE (5) to wall with WOOD SCREWS (4).

use DRYWALL ANCHORS (6) and SCREWS (4) for securing MOUNTING PLATE (5) to wall. Place #2 Phillips

Drill

If TILE ANCHORS (8) and SCREWS (4) are use for securing MOUNTING PLATE (5), then

Regular Screwdriver

Phillips Screwdriver

CARE INSTRUCTIONS:

DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.

DO NOT: CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A CLOTH WITH A COARSE SURFACE.

INSTALL TOWEL RING AND ROBE HOOK

Place ESCUTCHEON (7) onto MOUNTING BRACKET (5), and secure with ATTACHMENT SCREW (3).

Install the TOWEL RING (1) or DOUBLE ROBE HOOK (2) into WALL ESCUTCHEON (7).

Tighten SET SCREW (9) using 2-1/2mm HEX KEY (10) supplied to secure assembly to ESCUTCHEON (7).

USE MOUNTING BRACKET (5) AS TEMPLATE

FINISHED WALL

TOWNSQUARE

ACCESSORIES

TOWEL RING

DOUBLE ROBE HOOK

M962116-YYY0A

ROBE HOOK

TOWEL RING

A918486-0070A

ATTACHMENT SCREW

2555.021

2555.041

M962118-0070A

MOUNTING BRACKET

M962117-YYY0A

ESCUTCHEON

M962115-YYY0A

TOWEL RING

Replace the "YYY" with appropriate finish code

CHROME POLISHED BRASS (PVD) SATIN (PVD)

For toll-free information and answers to your questions, call:

IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)

HOT LINE FOR HELP

1-800 442-1902

Weekdays 8:00 a.m. to 8:00 p.m. EST

Weekdays 8:00 a.m. to 7:00 p.m. EST

002 099 295

M968231C
