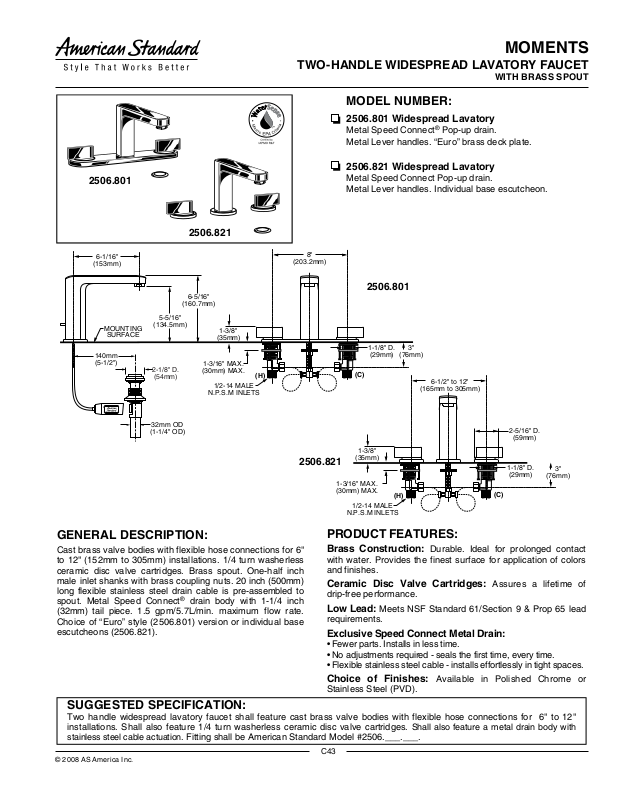

American Standard 2506.821 User Manual

GENERAL DESCRIPTION:

Cast brass valve bodies with flexible hose connections for 6" to 12" (152mm to 305mm) installations. 1/4 turn washerless ceramic disc valve cartridges. Brass spout. One-half inch male inlet shanks with brass coupling nuts. 20 inch (500mm) long flexible stainless steel drain cable is pre-assembled to spout. Metal Speed Connect® drain body with 1-1/4 inch (32mm) tail piece. 1.5 gpm/5.7L/min. maximum flow rate. Choice of “Euro” style (2506.801) version or individual base escutcheons (2506.821).

PRODUCT FEATURES:

Brass Construction: Durable. Ideal for prolonged contact

with water. Provides the finest surface for application of colors and finishes.

Ceramic Disc Valve Cartridges: Assures a lifetime of

drip-free performance.

Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead

requirements.

Exclusive Speed Connect Metal Drain:

• Fewer parts. Installs in less time.

• No adjustments required - seals the first time, every time.

• Flexible stainless steel cable - installs effortlessly in tight spaces.

Choice of Finishes: Available in Polished Chrome or

Stainless Steel (PVD).

MODEL NUMBER:

2506.801 Widespread Lavatory

Metal Speed Connect® Pop-up drain. Metal Lever handles. “Euro” brass deck plate.

2506.821 Widespread Lavatory

Metal Speed Connect Pop-up drain. Metal Lever handles. Individual base escutcheon.

2506.801

2506.821

SUGGESTED SPECIFICATION:

Two handle widespread lavatory faucet shall feature cast brass valve bodies with flexible hose connections for 6" to 12" installations. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Shall also feature a metal drain body with

stainless steel cable actuation. Fitting shall be American Standard Model #2506.___.___.

(203.2mm)

MOUNTING

SURFACE

5-5/16"

(134.5mm)

6-1/16"

(153mm)

6-5/16"

(160.7mm)

1-3/8"

(35mm)

1-3/16" MAX.

(30mm) MAX.

(76mm)

(H)

(C)

1-1/8" D.

(29mm)

1/2-14 MALE

N.P.S.M INLETS

140mm (5-1/2")

32mm OD

(1-1/4" OD)

2-1/8" D.

(54mm)

6-1/2" to 12"

(165mm to 305mm)

1-3/8"

(35mm)

1-3/16" MAX.

(30mm) MAX.

(76mm)

(H)

(C)

1-1/8" D.

(29mm)

2-5/16" D.

(59mm)

1/2-14 MALE

N.P.S.M INLETS

MOMENTS

TWO-HANDLE WIDESPREAD LAVATORY FAUCET

WITH BRASS SPOUT

C43

MOMENTS

CODES AND STANDARDS

These products meet or exceed the following codes and standards:

ANSI A117.1 ASME A112.18.1 CSA B 125 NSF 61/Section 9

Product Number

Description

2506.801

Lavatory faucet with Metal Speed Connect® Pop-up drain. Metal Lever handles. “Euro” style deck plate.

2506.821

Same as ABOVE with individual base escutcheons.

Finish Options

Polished

Chrome

002

075

Stainless

Steel

(PVD)

Meets the American Disabilities Act Guidelines and ANSI A117.1 Requirements for the physically challenged.

FLOW RATE*

GALLONS PER MINUTE

I N L E T P R ES S U R E ( P S I )

*Flow rates shown are for mixed hot and cold.

0.0

0.5

1.0

1.5

2.0

10080604020

TWO-HANDLE WIDESPREAD LAVATORY FAUCET

WITH BRASS SPOUT

C44
