M42
© 2008 AS America Inc.
Revised 2/08
To Be Specied:
❏ Color: ❏ White ❏ Bone ❏ Linen
❏ Silver ❏ Fawn Beige ❏ Black
❏ Seat: American Standard #5324.019
Elongated “Rise and Shine” (with easy to clean
lift-off hinge system) solid plastic closed front
seat with cover.
❏ Seat: American Standard #5325.024
Elongated “Rise and Shine” (with easy to clean
lift-off hinge system) solid plastic open front
seat with cover.
❏ Alternate Seat:
❏ Supply with Stop:
* Flushmate III tank system by Flushmate® Div. of Sloan Valve Co

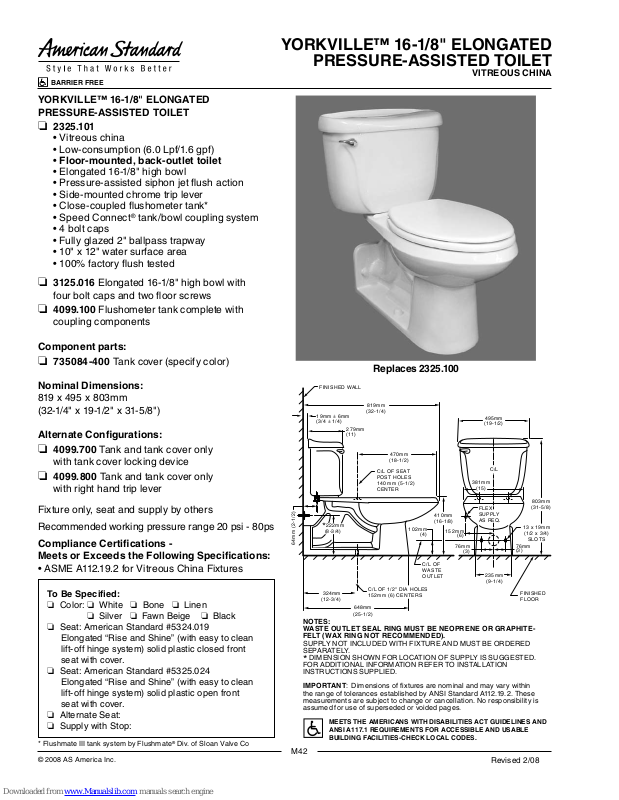

YORKVILLE™ 16-1/8" ELONGATED
PRESSURE-ASSISTED TOILET
VITREOUS CHINA
YORKVILLE™ 16-1/8" ELONGATED
PRESSURE-ASSISTED TOILET
❏ 2325.101
• Vitreous china
• Low-consumption (6.0 Lpf/1.6 gpf)
• Floor-mounted, back-outlet toilet
• Elongated 16-1/8" high bowl
• Pressure-assisted siphon jet ush action
• Side-mounted chrome trip lever
• Close-coupled ushometer tank*
• Speed Connect® tank/bowl coupling system
• 4 bolt caps
• Fully glazed 2" ballpass trapway
• 10" x 12" water surface area
• 100% factory ush tested
❏ 3125.016 Elongated 16-1/8" high bowl with
four bolt caps and two oor screws
❏ 4099.100 Flushometer tank complete with
coupling components
Component parts:
❏ 735084-400 Tank cover (specify color)
Nominal Dimensions:
819 x 495 x 803mm
(32-1/4" x 19-1/2" x 31-5/8")
Alternate Congurations:
❏ 4099.700 Tank and tank cover only
with tank cover locking device
❏ 4099.800 Tank and tank cover only
with right hand trip lever
Fixture only, seat and supply by others
Recommended working pressure range 20 psi - 80ps
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2 for Vitreous China Fixtures
NOTES:
WASTE OUTLET SEAL RING MUST BE NEOPRENE OR GRAPHITEFELT (WAX RING NOT RECOMMENDED) .
SUPPLY NOT INCLUDED WITH FIX TURE AND MUST BE ORDERED
SEPARATELY.
*
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
FOR ADDITIONAL INFORMATION REFER TO INSTALLATION
INSTRUCTIONS SUPPLIED.
IMPORTANT: Dimensions of xtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibilit y is
assumed for use of superseded or voided pages.
803 mm
(31 -5/8)
235 mm
(9- 1/4)
410 mm
(16 -1/8)
381 mm
(15 )
470 mm
(18 -1/2)
648 mm
(25 -1/2)
819 mm
(32 -1/4)
C/L OF SE AT
POS T HOLE S
140 mm (5 -1/2)
CEN TER
FIN ISHED WALL
FIN ISHED
FLO OR
152 mm
(6)
64m m (2-1 /2)
32 4mm
(12 -3/4)
C/L OF 1/ 2" DI A H OLES
152 mm (6) CENT ERS
76m m
(3)
76m m
(3)
102 mm
(4)
C/L OF
WAS TE
OUT LET
13 x 19mm
(1/ 2 x 3/ 4)
SLO TS
FLE X
SUP PLY
AS REQ.
C/L
*
222 mm
(8- 3/4)
19m m ± 6mm
(3/ 4 ± 1/4)
495 mm
(19 -1/2 )
279 mm
(11 )
Replaces 2325.100
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES AND
ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
BUILDING FACILITIES-CHECK LOCAL CODES.
BARRIER FREE
