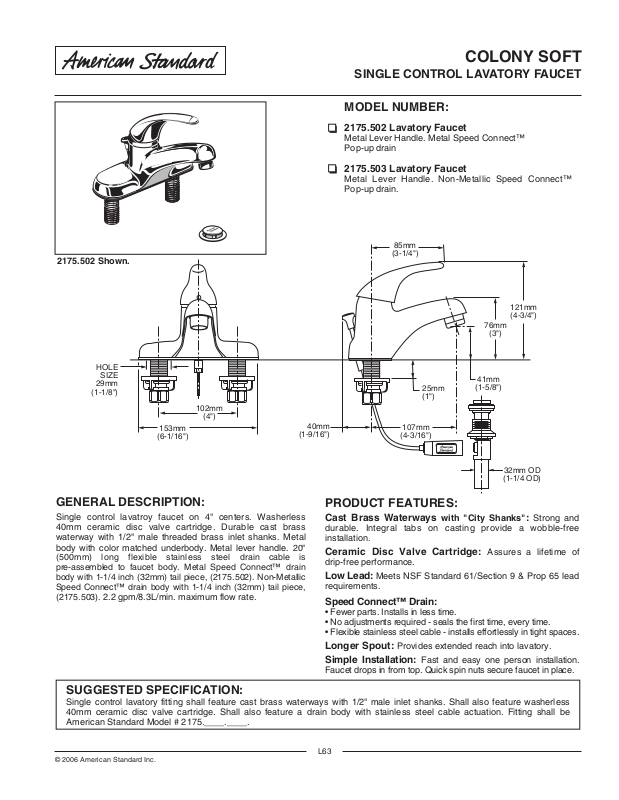

COLONY SOFT

SINGLE CONTROL LAVATORY FAUCET

MODEL NUMBER:

2175.502 Lavatory Faucet

Metal Lever Handle. Metal Speed Connect™ Pop-up drain

2175.503 Lavatory Faucet

Metal Lever Handle. Non-Metallic Speed Connect™ Pop-up drain.

85mm

(3-1/4")

121mm (4-3/4")

76mm

(3")

HOLE

SIZE

29mm

(1-1/8")

102mm

(4")

153mm

(6-1/16")

(1-9/16")

GENERAL DESCRIPTION:

Single control lavatroy faucet on 4" centers. Washerless 40mm ceramic disc valve cartridge. Durable cast brass waterway with 1/2" male threaded brass inlet shanks. Metal body with color matched underbody. Metal lever handle.

(500mm) long flexible stainless steel drain cable is pre-assembled to faucet body. body with 1-1/4 inch (32mm) tail piece, (2175.502). Non-Metallic Speed Connect™ drain body with 1-1/4 inch (32mm) tail piece, (2175.503).

2.2 gpm/8.3L/min. maximum flow rate.

Metal Speed Connect™ drain

20"

41mm

(1-5/8")

32mm OD

(1-1/4 OD)

40mm

25mm (1")

107mm

(4-3/16")

PRODUCT FEATURES:

Cast Brass Waterways with "City Shanks": Strong and

durable. Integral tabs on casting provide a wobble-free installation.

Ceramic Disc Valve Cartridge: Assures a lifetime of

drip-free performance.

Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead

requirements.

Speed Connect™ Drain:

• Fewer parts. Installs in less time.

• No adjustments required - seals the first time, every time.

• Flexible stainless steel cable - installs effortlessly in tight spaces.

Longer Spout: Provides extended reach into lavatory. Simple Installation:

Faucet drops in from top. Quick spin nuts secure faucet in place.

Fast and easy one person installation.

SUGGESTED SPECIFICATION:

Single control lavatory fitting shall feature cast brass waterways with 1/2" male inlet shanks. Shall also feature washerless 40mm ceramic disc valve cartridge. Shall also feature a drain body with stainless steel cable actuation. Fitting shall be American Standard Model # 2175.____.____.

L63

COLONY SOFT

SINGLE CONTROL LAVATORY FAUCET

CODES AND STANDARDS

These products meet or exceed the following codes and standards:

ANSI A117.1 ASME A112.18.1 NSF 61/Section 9 CSA B 125

Product Number

Description

FLOW RATE*

3.0

2.5

2.0

1.5

1.0

0.5

GALLONS PER MINUTE

0.0

*Flow rates shown are for mixed hot and cold.

INLET PRESSURE (PSI)

Finish Options

Polished

Chrome

002

10080604020

PVD

Polished

Brass

099

2175.502

2175.503

Lavatory faucet. Metal Speed Connect™ Pop-up drain.

Lavatory faucet. Non-Metallic Speed Connect™ Pop-up drain.

N/A = NOT AVAILABLE

Meets the American Disabilities Act Guidelines and ANSI A117.1 Requirements for the physically challenged.
