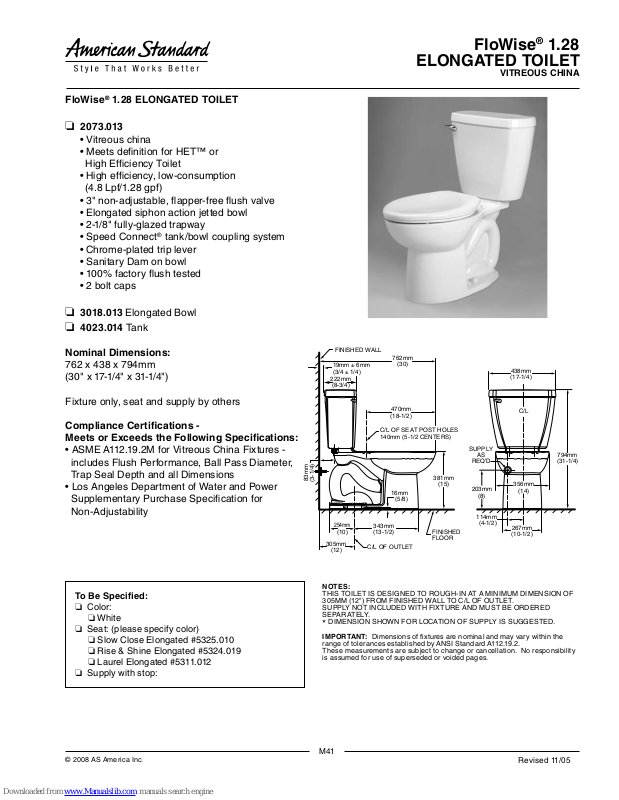

American Standard 2073.013 Specification Sheet
M41
© 2008 AS America Inc.
FloWise® 1.28
ELONGATED TOILET
VITREOUS CHINA
Revised 11/05
FloWise® 1.28 ELONGATED TOILET
❏ 2073.013
• Vitreous china
• Meets denition for HET™ or
High Efciency Toilet
• High efciency, low-consumption
(4.8 Lpf/1.28 gpf)
• 3" non-adjustable, apper-free ush valve
• Elongated siphon action jetted bowl
• 2-1/8" fully-glazed trapway
• Speed Connect® tank/bowl coupling system
• Chrome-plated trip lever
• Sanitary Dam on bowl
• 100% factory ush tested
• 2 bolt caps
❏ 3018.013 Elongated Bowl
❏ 4023.014 Tank
Nominal Dimensions:
762 x 438 x 794mm
(30" x 17-1/4" x 31-1/4")
Fixture only, seat and supply by others
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2M for Vitreous China Fixtures includes Flush Performance, Ball Pass Diameter,
Trap Seal Depth and all Dimensions
• Los Angeles Department of Water and Power
Supplementary Purchase Specication for
Non-Adjustability
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF
305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIX TURE AND MUST BE ORDERED
SEPARATELY.
*
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
305mm
(12)
762mm
(30)
222mm
(8-3/4)
C/L OF OUTLET
FINISHED WALL
19mm ± 6mm
(3/4 ± 1/4)
381mm
(15)
C/L
470mm
(18-1/2)
C/L OF SEAT POST HOLES
140mm (5-1/2 CENTERS)
254mm
(10)
FINISHED
FLOOR
794mm
(31-1/4)
267mm
(10-1/2)
114mm
(4-1/2)
438mm
(17-1/4)
203mm
(8)
356mm
(14)
83mm
(3-1/4)
SUPPLY
AS
REQ'D
16mm
(5/8)
343mm
(13-1/2)
To Be Specied:
❏ Color:
❏ White
❏ Seat: (please specify color)
❏ Slow Close Elongated #5325.010
❏ Rise & Shine Elongated #5324.019
❏ Laurel Elongated #5311.012
❏ Supply with stop:
