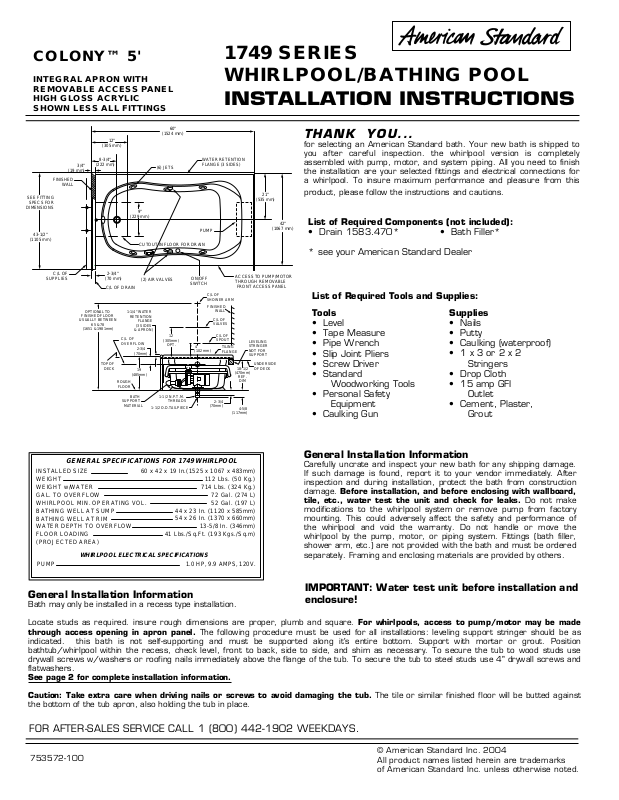

American Standard 1749 User Manual

COLONY™ 5'

1749 SERIES

INTEGRAL APRON WITH REMOVABLE ACCESS PANEL HIGH GLOSS ACRYLIC SHOWN LESS ALL FITTINGS

12"

(305 mm)

8-3/4"

(222 mm)

3/4"

(19 mm)

FINISHED

WALL

SEE FITTING

SPECS FOR

DIMENSIONS

43-1/2"

(1105 mm)

C/L OF

SUPPLIES

2-3/4" (70 mm)

C/L OF DRAIN

OPTIONAL TO

FINISHED FLOOR

USUALLY BETWEEN

65 & 78

(1651 & 1981mm)

TOP OF

DECK

1-1/4" WATER

C/L OF OVERFLOW

ROUGH

FLOOR

SUPPORT

MATERIAL

60"

(1524 mm)

(6) JETS

(229 mm)

CUTOUT IN FLOOR FOR DRAIN

(2) AIR VALVES

RETENTION

FLANGE

(3 SIDES

& APRON)

(70mm)

(485mm)

BATH

2-3/4

(305mm)

OPT.

1-1/2 N.P.T.M.

THREADS

1-1/2 O.D.TAILPIECE

WATER RETENTION FLANGE (3 SIDES)

PUMP

ON/OFF SWITCH

C/L OF SHOWER ARM

FINISHED

WALL

C/L OF VALVES

4 (102 mm)

2-3/4

(70mm)

WHIRLPOOL/BATHING POOL

INSTALLATION INSTRUCTIONS

THANK YOU...

for selecting an American Standard bath. Your new bath is shipped to you after careful inspection. the whirlpool version is completely assembled with pump, motor, and system piping. All you need to finish the installation are your selected fittings and electrical connections for a whirlpool. To insure maximum performance and pleasure from this

product, please follow the instructions and cautions.

List of Required Components (not included):

42"

• Drain 1583.470* • Bath Filler*

* see your American Standard Dealer

List of Required Tools and Supplies: Tools

• Level

• Tape Measure

• Pipe Wrench

• Slip Joint Pliers

• Screw Driver

• Standard Woodworking Tools

• Personal Safety Equipment

• Caulking Gun

Supplies

• Nails

• Putty

• Caulking (waterproof)

• 1 x 3 or 2 x 2 Stringers

• Drop Cloth

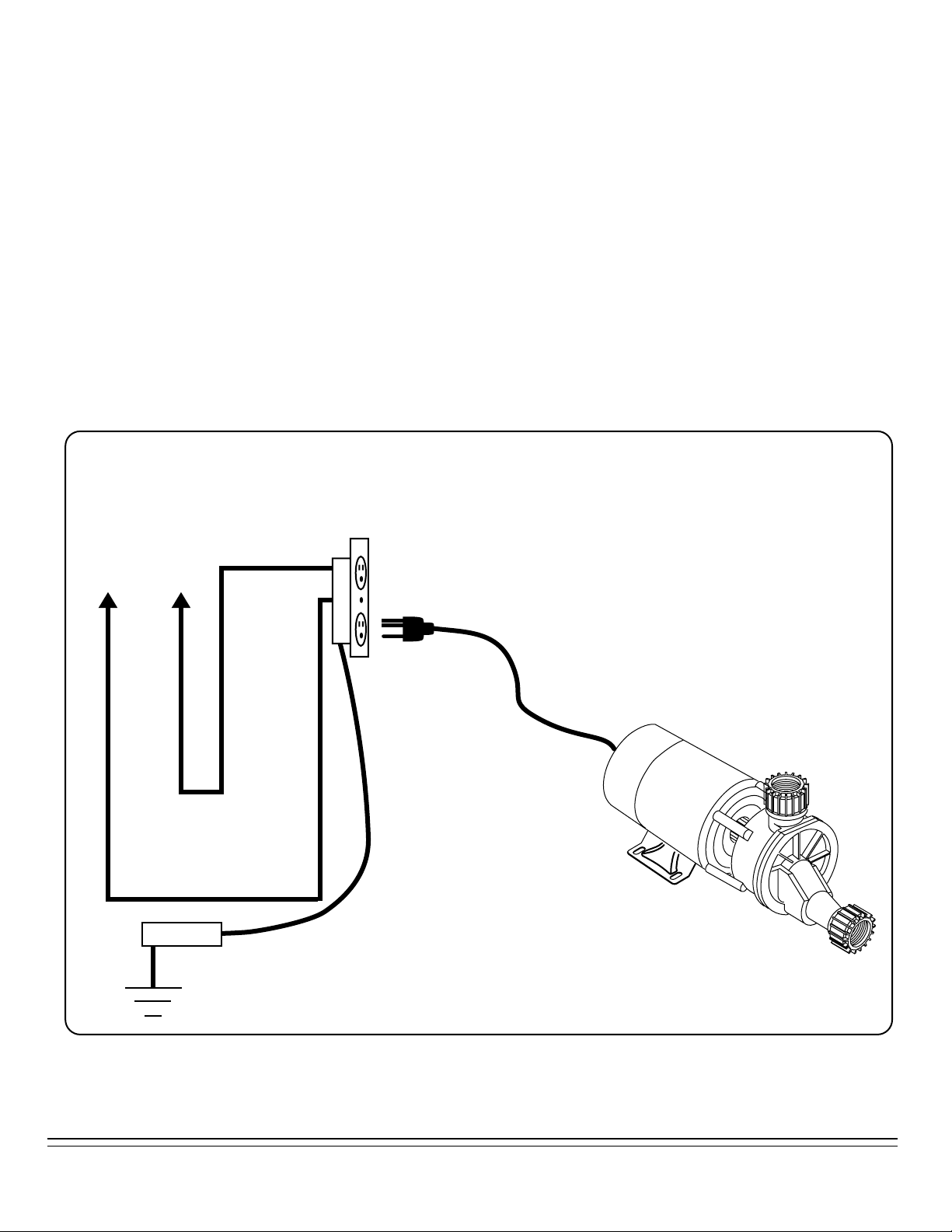

• 15 amp GFI Outlet

• Cement, Plaster, Grout

ACCESS TO PUMP/MOTOR THROUGH REMOVABLE FRONT ACCESS PANEL

C/L OF SPOUT

TILING FLANGE

18-1/2

(470mm)

REF.

DIM

4-5/8

(117mm)

(535 mm)

LEVELING STRINGER NOT FOR SUPPORT

UNDERSIDE OF DECK

21"

(1067 mm)

GENERAL SPECIFICATIONS FOR 1749 WHIRLPOOL

INSTALLED SIZE WEIGHT WEIGHT w/WATER GAL. TO OVERFLOW WHIRLPOOL MIN. OPERATING VOL. BATHING WELL AT SUMP BATHING WELL AT RIM WATER DEPTH TO OVERFLOW FLOOR LOADING (PROJECTED AREA)

WHIRLPOOL ELECTRICAL SPECIFICATIONS

60 x 42 x 19 In.(1525 x 1067 x 483mm)

41 Lbs./Sq.Ft. (193 Kgs./Sq.m)

112 Lbs. (50 Kg.)

714 Lbs. (324 Kg.)

72 Gal. (274 L)

44 x 23 In. (1120 x 585mm) 54 x 26 In. (1370 x 660mm)

52 Gal. (197 L)

13-5/8 In. (346mm)

1.0 HP, 9.9 AMPS, 120V.PUMP

General Installation Information

Bath may only be installed in a recess type installation.

General Installation Information

Carefully uncrate and inspect your new bath for any shipping damage. If such damage is found, report it to your vendor immediately. After inspection and during installation, protect the bath from construction damage. Before installation, and before enclosing with wallboard, tile, etc., water test the unit and check for leaks. Do not make modifications to the whirlpool system or remove pump from factory mounting. This could adversely affect the safety and performance of the whirlpool and void the warranty. Do not handle or move the whirlpool by the pump, motor, or piping system. Fittings (bath filler, shower arm, etc.) are not provided with the bath and must be ordered separately. Framing and enclosing materials are provided by others.

IMPORTANT: Water test unit before installation and enclosure!

Locate studs as required. insure rough dimensions are proper, plumb and square. For whirlpools, access to pump/motor may be made through access opening in apron panel. The following procedure must be used for all installations: leveling support stringer should be as

indicated. this bath is not self-supporting and must be supported along it's entire bottom. Support with mortar or grout. Position bathtub/whirlpool within the recess, check level, front to back, side to side, and shim as necessary. To secure the tub to wood studs use drywall screws w/washers or roofing nails immediately above the flange of the tub. To secure the tub to steel studs use 4" drywall screws and flatwashers.

See page 2 for complete installation information.

Caution: Take extra care when driving nails or screws to avoid damaging the tub. The tile or similar finished floor will be butted against

the bottom of the tub apron, also holding the tub in place.

FOR AFTER-SALES SERVICE CALL 1 (800) 442-1902 WEEKDAYS.

753572-100

INSTALLATION AND FRAMING INSTRUCTIONS

Locate studs as required. Ensure roughing-in dimensions are proper, plumb and square. Access to Pump/Motor may be made through the access opening in the apron panel. It is strongly recommended that an additional opening be provided for access to the drain components.

NOTE: The apron may be used as the primary access opening.

1. As shown in Fig. 1, mark the position of the underside of the deck by tracing a line onto the studs, using a level or other suitable straight edge.

2. With the top of the stringer touching the traced line, attach the stringer to the studs.

3. Install drain components to the whirlpool or bath following the manufacturers instructions. See the roughing-in drawing for suggested opening size and location dimensions.

4. THIS BATH MUST BE SUPPORTED ALONG ITS ENTIRE BOTTOM. We recommend the use of mortar as bedding material (sand is not recommended). Apply enough bedding to support the complete bottom of the bath. After the bedding has been poured, and before it sets, position whirlpool or bath within recess until the rim is leveled against the leveling stringers (see "Typical Recess Installation") shown below. The rim of the bath MUST NOT support weight. Allow the bedding material to completely harden before applying weight to the rim or bottom of the bath. Any finish material such as tile or wall board must be self-supporting if it contacts the deck of the bath.

FIG. 1

SUGGESTED WHIRLPOOL/BATH INSTALLATION METHOD

WOOD STUDS

STUD

18-1/2

(470mm)

TYPICAL RECESS INSTALLATION

18-1/2

(470mm)

60-1/8

(1527mm)

(990mm)

43-1/2

(1105mm)

TUB WIDTH

WATERPROOF DRYWALL OR CEMENT BOARD

ROOFING NAIL

SEALANT

TUB

STEEL

STUD

WATERPROOF DRYWALL OR CEMENT BOARD

TILE

SEALANT

TUB

1 x 3 (25 x 76mm) WOOD

STRINGER FULL LENGTH

TILE

1 x 3 (25 x 76mm) WOOD

STRINGER FULL LENGTH

STEEL STUDS

WASHER

4" (102mm) DRYWALL SCREW

ALLOW OPEN FRAMING ON PUMP/MOTOR END OF WHIRLPOOL FOR PUMP CLEARANCE MIN. 12 X 18

753572-100 (2)
