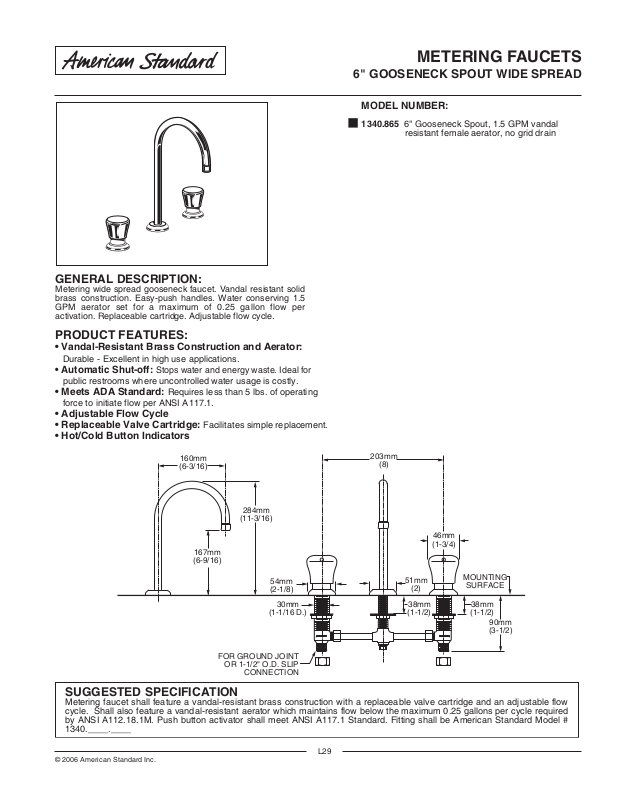

American Standard 1340.865 User Manual

GENERAL DESCRIPTION:

Metering wide spread gooseneck faucet. Vandal resistant solid brass construction. Easy-push handles. Water conserving 1.5 GPM aerator set for a maximum of 0.25 gallon flow per activation. Replaceable cartridge. Adjustable flow cycle.

PRODUCT FEATURES:

• Vandal-Resistant Brass Construction and Aerator:

Durable - Excellent in high use applications.

• Automatic Shut-off:

public restrooms where uncontrolled water usage is costly.

• Meets ADA Standard: Requires less than 5 lbs. of operating

force to initiate flow per ANSI A117.1.

• Adjustable Flow Cycle

• Replaceable Valve Cartridge: Facilitates simple replacement.

• Hot/Cold Button Indicators

Stops water and energy waste. Ideal for

METERING FAUCETS

6" GOOSENECK SPOUT WIDE SPREAD

MODEL NUMBER:

1340.865 6" Gooseneck Spout, 1.5 GPM vandal

resistant female aerator, no grid drain

160mm

(6-3/16)

284mm

(11-3/16)

167mm

(6-9/16)

54mm

(2-1/8)

30mm

(1-1/16 D.)

FOR GROUND JOINT

OR 1-1/2" O.D. SLIP

CONNECTION

203mm

(8)

51mm

(2)

38mm

(1-1/2)

46mm

(1-3/4)

MOUNTING

SURFACE

38mm

(1-1/2)

90mm

(3-1/2)

SUGGESTED SPECIFICATION

Metering faucet shall feature a vandal-resistant brass construction with a replaceable valve cartridge and an adjustable flow cycle. Shall also feature a vandal-resistant aerator which maintains flow below the maximum 0.25 gallons per cycle required by ANSI A112.18.1M. Push button activator shall meet ANSI A117.1 Standard. Fitting shall be American Standard Model #

1340.____.____

L29

METERING FAUCETS

6" GOOSENECK SPOUT WIDE SPREAD

CODES AND STANDARDS

These products meet or exceed the following codes and standards:

ANSI A117.1 ASME A112.18.1 CSA B 125 NSF 61/Section 9

Meets the American Disabilities Act Guidelines and ANSI A117.1 Requirements for the physically challenged.

FLOW RATE*

0.25

0.20

0.15

0.10

0.05

VOLUME PER CYCLE (GAL)

0.00 20 40 8060

PRESSURE (PSI)

L30
