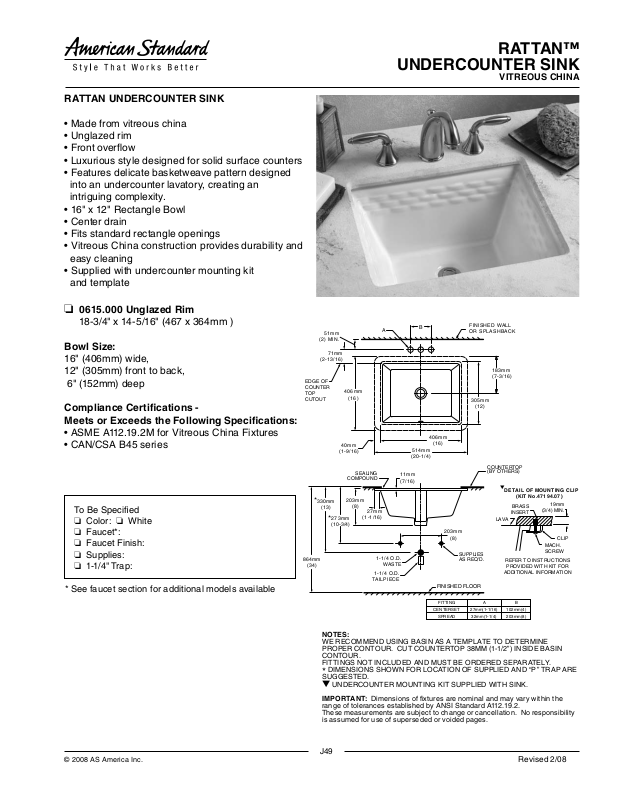

American Standard 0615.000 User Manual
RATTAN UNDERCOUNTER SINK
51m m
(2) MIN.
71m m
(2- 13/16)
FIN ISHED WALL
OR SPLASH BACK
183 mm
(7- 3/16)
EDGE OF
COUNTER
TOP
CUTOUT
A
B
40m m
(1- 9/16)
514 mm
(20 -1/4)
406 mm
(16 )
▼
DET AIL OF MOUN TING C LIP
(KI T No.4 7194. 07)
LAVA
BRASS
INSERT
19mm
(3/4) MIN.
REFER TO INSTRUCTIONS
PROVIDED WITH KIT FOR
ADDITIONAL INFORMATION
CLIP
MACH.
SCREW
1-1 /4 O.D .
TAI LPIECE
1-1 /4 O.D .
WAS TE
203 mm
(8)
330 mm
(13 )
273 mm
(10 -3/4)
11m m
(7/ 16)
203 mm
(8)
SUPPLIES
AS REQ'D.
COUNTERTOP
(BY OTHERS)
SEALING
COMPOUND
864 mm
(34 )
*
*
FINISHED FLOOR
27m m
(1- 1/16)
FITTING
CENTERSE T
SPREAD
A
27mm(1-1 /16)
32mm(1-1 /4)
B
102mm(4)
203mm(8)
406 mm
(16 )
305 mm
(12 )
• Made from vitreous china
• Unglazed rim
• Front overow
• Luxurious style designed for solid surface counters
• Features delicate basketweave pattern designed
into an undercounter lavatory, creating an
intriguing complexity.
• 16" x 12" Rectangle Bowl
• Center drain
• Fits standard rectangle openings
• Vitreous China construction provides durability and
easy cleaning
• Supplied with undercounter mounting kit
and template
❏ 0615.000 Unglazed Rim
18-3/4" x 14-5/16" (467 x 364mm )
RATTAN™
UNDERCOUNTER SINK
VITREOUS CHINA
Bowl Size:
16" (406mm) wide,
12" (305mm) front to back,
6" (152mm) deep
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2M for Vitreous China Fixtures
• CAN/CSA B45 series
To Be Specied
❏ Color: ❏ White
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
© 2008 AS America Inc.
NOTES:
WE RECOMMEND USING BASIN AS A TEMPLATE TO DETERMINE
PROPER CONTOUR. CUT COUNTERTOP 38MM (1-1/2”) INSIDE BASIN
CONTOUR.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIED AND “P” TRAP ARE
*
SUGGESTED.
▼ UNDERCOUNTER MOUNTING KIT SUPPLIED WITH SINK.
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to c hange or cancellation. No responsibility
is assumed for use of superseded or voided pages.
J49
Revised 2/08
