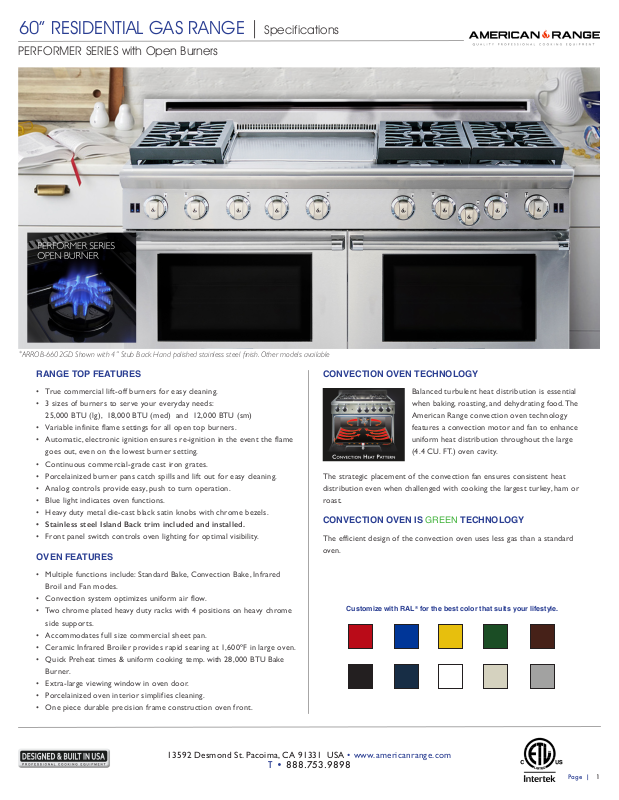

Page 1
60” RESIDENTIAL GAS RANGE | Specifications
PERFORMER SERIES with Open Burners
*

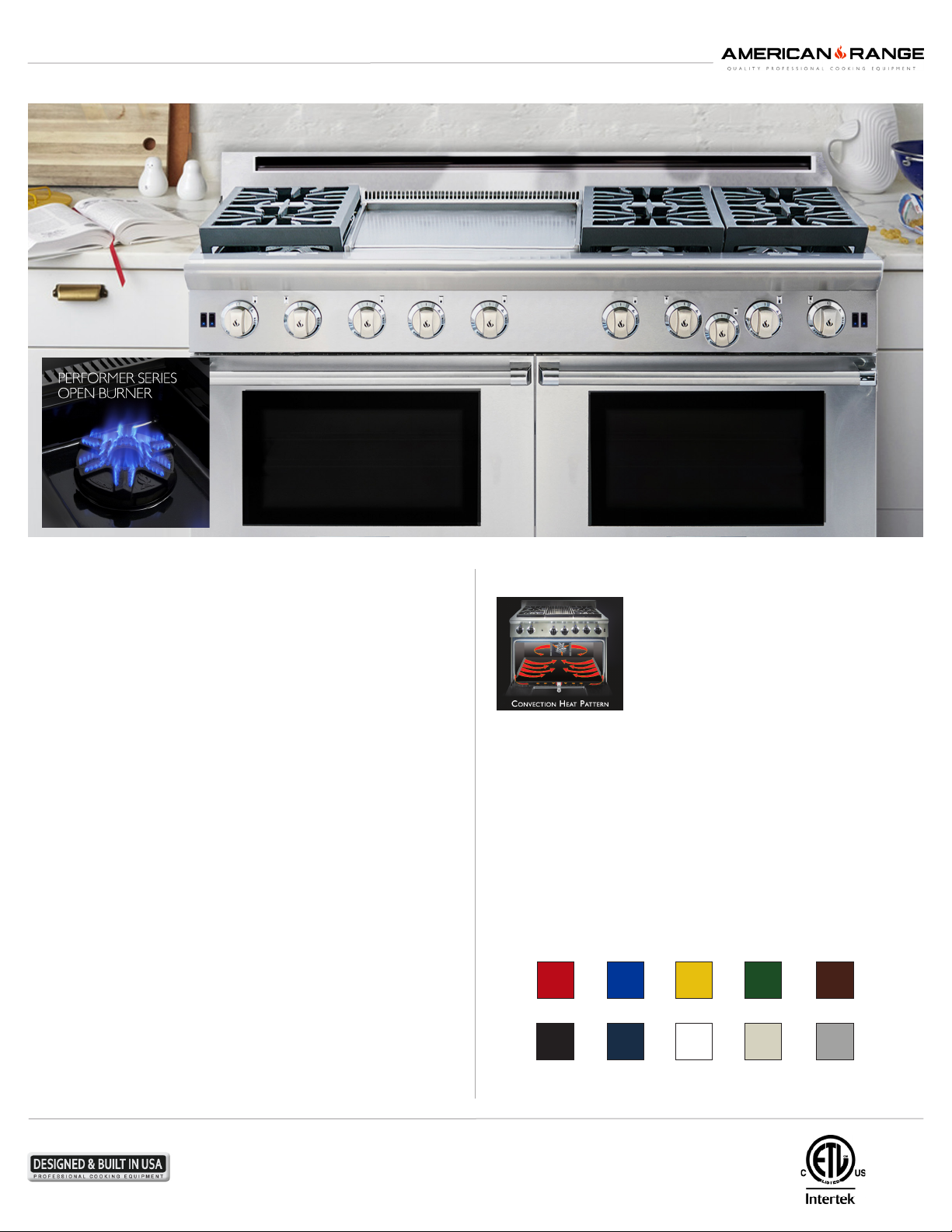

ARROB-6602GD Shown with 4” Stub Back Hand polished stainless steel nish. Other models available
RANGE TOP FEATURES
• True commercial lift-off burners for easy cleaning.
• 3 sizes of burners to serve your everyday needs:
25,000 BTU (lg), 18,000 BTU (med) and 12,000 BTU (sm)
• Variable infinite flame settings for all open top burners.
• Automatic, electronic ignition ensures re-ignition in the event the flame
goes out, even on the lowest burner setting.
• Continuous commercial-grade cast iron grates.
• Porcelainized burner pans catch spills and lift out for easy cleaning.
• Analog controls provide easy, push to turn operation.
• Blue light indicates oven functions.
• Heavy duty metal die-cast black satin knobs with chrome bezels.
• Stainless steel Island Back trim included and installed.
• Front panel switch controls oven lighting for optimal visibility.
OVEN FEATURES
• Multiple functions include: Standard Bake, Convection Bake, Infrared
Broil and Fan modes.
• Convection system optimizes uniform air flow.
• Two chrome plated heavy duty racks with 4 positions on heavy chrome
side supports.
• Accommodates full size commercial sheet pan.
• Ceramic Infrared Broiler provides rapid searing at 1,600ºF in large oven.
• Quick Preheat times & uniform cooking temp. with 28,000 BTU Bake
Burner.
• Extra-large viewing window in oven door.
• Porcelainized oven interior simplifies cleaning.
• One piece durable precision frame construction oven front.
CONVECTION OVEN TECHNOLOGY
Balanced turbulent heat distribution is essential
when baking, roasting, and dehydrating food. The
American Range convection oven technology
features a convection motor and fan to enhance
uniform heat distribution throughout the large
(4.4 CU. FT.) oven cavity.
The strategic placement of the convection fan ensures consistent heat
distribution even when challenged with cooking the largest turkey, ham or
roast.
CONVECTION OVEN IS GREEN TECHNOLOGY
The efficient design of the convection oven uses less gas than a standard
oven.
Customize with RAL® for the best color that suits your lifestyle.
13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com
T • 888.753.9898
Page |
1
Page 2

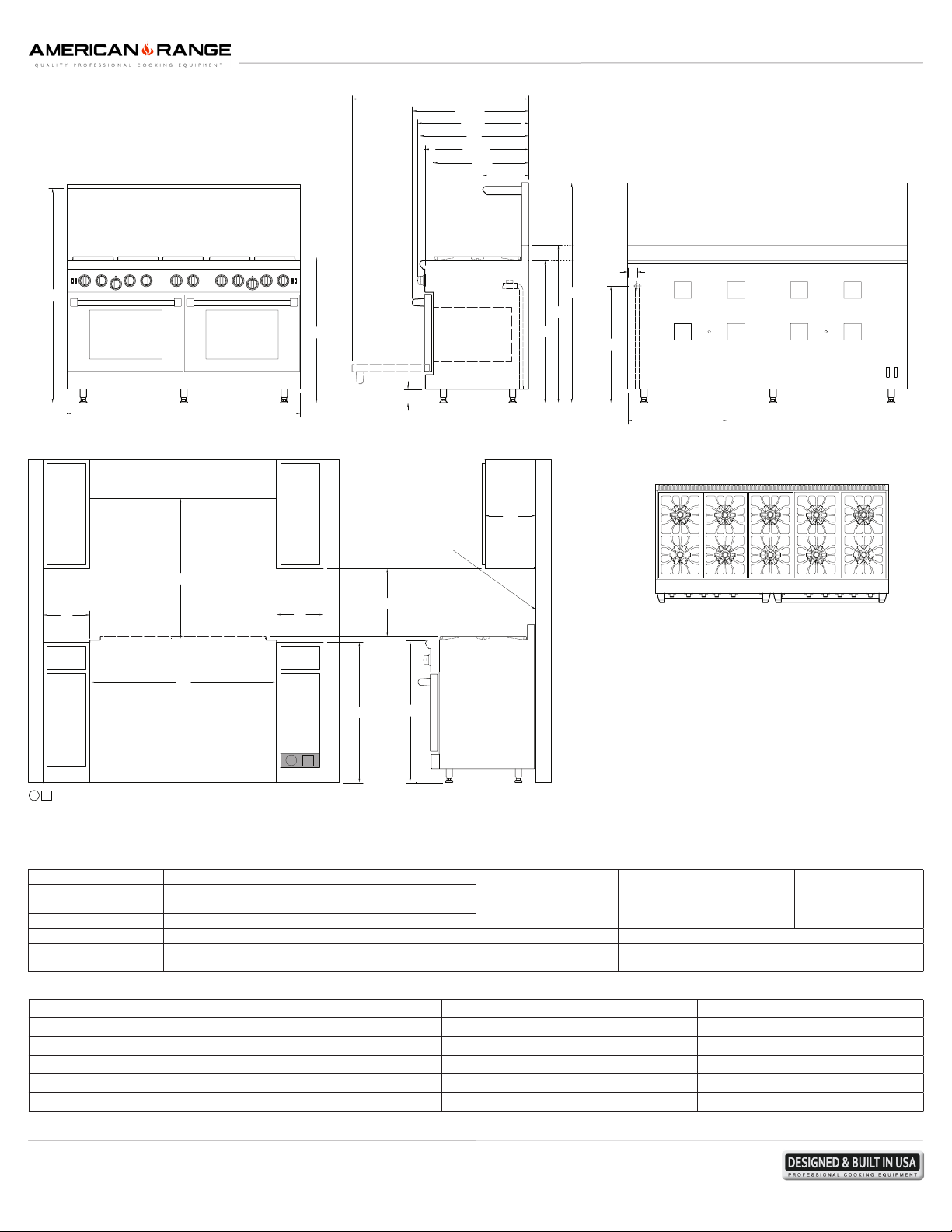

Specifications | 60” RESIDENTIAL GAS RANGE
45
"
DEPTH TO OVEN DOOR
RECOMMENDED LOC
ISLAND OR PENINSULA INST
THIS
AND COMBUSTION PR
SCALE: NOT TO SCALE
PLATE
SHELF
55"
30" TO VENTILLATION HOOD
36" MIN COOKING
SURFACE TO
COMBUSTIBLE
MATERIAL OR
30" to BOTTOM OF
VENTILATION HOOD
MIN COMBUSTIBLE
MATERIAL
6"
7/8
59
"
OVERALL WIDTH
FRONT VIEW
COMBUSTIBLE MATERIAL
36"
COOKING SURFACE
37
MIN COMBUSTIBLE
MATERIAL
6"
1/2
"
OVERALL HEIGHT COOKING SURFACE
REQUIRES 10" MINIMUM
DISTANCE FROM REAR
COMBUSTIBLE WALL
3/8
29
2 x 4.4 C.F.
7/16
3
"
LEGS ALLOW +1" ADJUSTMENT
ISLAND TRIM
IN. MIN COMBUSTIBLE
18"
TO COOKING SURFACE
15/16
"
1/2
28
"
28"
11/16
"
26
1/2
"
24
11
SIDE VIEW
CABINET DEPTH
DEPTH TO HANDLE
DEPTH TO KNOB
DEPTH TO BULL-NOSE
DEPTH TO CONTROL PANEL
DEPTH TO COOKTO P
13/16
DEPTH TO SHELF
"
WITH
20" RISER
WITH 4" RISER
ISLAND BACK
BULL-NOSE
1/2
56
"
1/2
40
"
1/2
36
"
13"
PERFORMER SERIES with Open Burners
3/8
2
"
GAS
INLET
30"
ELECTRIC
1/2
25
CORD
"
BACK VIEW
ARROB-1060
TOP VIEW
FINISHED OPENING WIDTH
60"
36"
1/2
36
"
A manual gas shut-off valve must be installed external to the appliance, in a location
accessible from the front, for the purpose of shutting off the gas supply. This is a vented
* ADJUSTABLE + 1”
appliance. To be used in conjunction with a suitable vent hood only.
E
G
G
E
APPLIANCE SHOULD NOT BE INSTALLED WITH AN AIR CURTAIN OR OTHER TYPE OF VENTILAT ION SYSTEM THAT BLOWS AIR DOWNWARD TOWARD THE RANGE. SUCH TYPE OF VENTILATION SYSTEM MAY CAUSE IGNITION
ATION OF GAS AND ELECTRICAL SUPPLY
ALLATIONS 10" MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE SURFACE. ISLAND TRIM 0 IN. CLEARANCE TO NON COMBUSTIBLE SURFACE. NO SIDE WALL ABOVE COOKING SURFACE
OBLEMS WITH THE GAS COOKING APPLIANCE RESULTING IN PERSONAL INJURY OR UNINTENDED OPERAT ION.
BULL-NOSE
COUNTERTOP
*ELECTRICAL REQUIREMENTS
A grounded three prong plug with proper polarity must be used.
TECHNICAL SPECIFICATIONS
Overall Oven Capacity 4.4 CU. FT. each oven
Oven Dimensions 26-1/2” W x 19” D x 15” H each oven
Surface Burner Rating 25,000 BTU (lg) - 18,000 BTU (md) - 12,000 BTU (sm)
Total Gas Connection Rating
per model #
Griddle Burner Rating 20,000 BTU for every 11” section
Grill Burner Rating 18,000 BTU for every 11” section Gas Supply 7” W.C. Natural, 11” W.C . Propane
Infrared Broiler 17,000 BTU each oven Electrical Supply 120 VAC 15 AMP 60 Hz Single Phase
Oven Bake Burner 28,000 BTU each oven Shipping Weight 780 Lbs
ARROB-1060
ARROB-6602GD
ARROB-660GDGR
ARROB-660X2GR
259,000 BTU
219,000 BTU
217,000 BTU
215,000 BTU
10 burners
6 burners & double griddle
6 burners, griddle & grill
6 burners & double grill
ACCESSORIES AND OPTIONS
Island back (standard) ARR60SIB-P 12" Cutting Board ARRCUTB12-P 24" Grill Cover ARRGRCOV24-P 22" Chrome Griddle w/ Separator MC22-SP-P
Island back (welded) ARR60IB-P 12" Griddle Cover ARRGDSCOV12-P 11" Chrome Flat Griddle Plate MC11FS-P Porcelainized Broiler Pan R31005
4" Stub Back ARR604SB-P 12" Grill Cover ARRGRCOV12-P 11" Chrome Grooved Griddle Plate MC11-GG-P Wok Adapter ARRWOK-P
21" High back w/ Shelf ARR6021HBS-P 12" Griddle Plate ARRPGP12-P 22" Chrome Flat Griddle Plate MC22FSP Extra Oven Rack 30” Oven R31013
S/S Curb base ARR60CB-P 24" Griddle Plate ARRPGP24-P 22" Chrome L- Flat R - Grooved Griddle MC22HGP
Stainless Steel Leg Caps (3) ARR3LC-P 24" Griddle Cover ARRGDCOV24S-P 22" Chrome Grooved Griddle MC22-GG-P
**The American Range Company continually improves its products and reserves the right to change materials, specications and dimensions without notice. This unit is manufactured for residential use only.
Range Slide Rack 60” ARR-SR-60-P
2
| Page
13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com
T • 888.753.9898
Page 3
60” RESIDENTIAL GAS RANGE | Specifications
PERFORMER SERIES with Open Burners

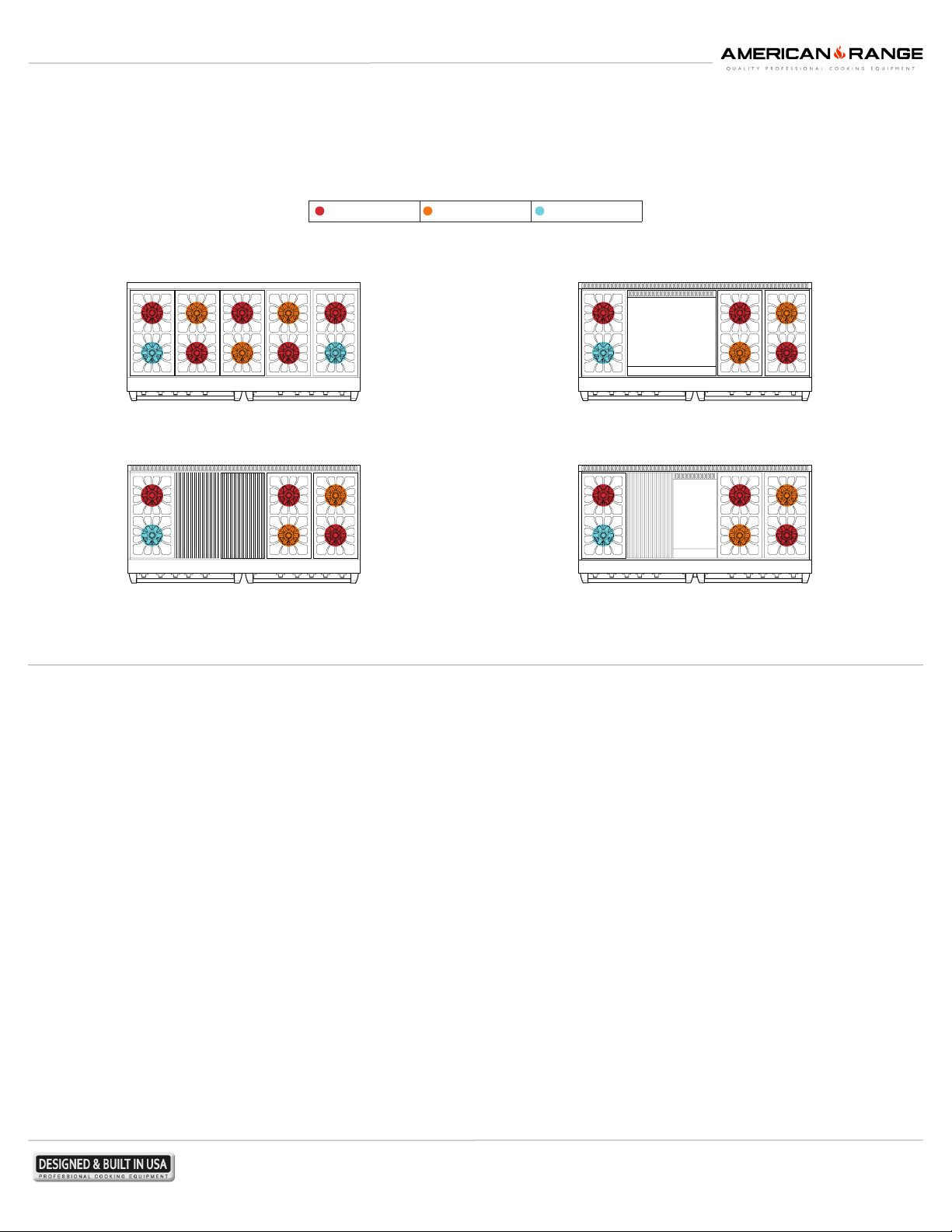

BURNER CONFIGURATIONS
25,000 BTU (lg) 18,000 BTU (md) 12,000 BTU (sm)
ARROB-1060 ARROB-6602GD
ARROB-6602GR ARROB-660GDGR
SCALE: NOT TO SCALE
MUST SHIP FROM FACTORY WITH PROPER GAS TYPE
N=Natural gas L= LP Gas. Must provide N or L after model number for type of gas needed. Example: ARROB-1060-L. Must specify elevation if over 2000 ft.
when ordering.
13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com
T • 888.753.9898
09042018 REV A
R70426
Page |
3
