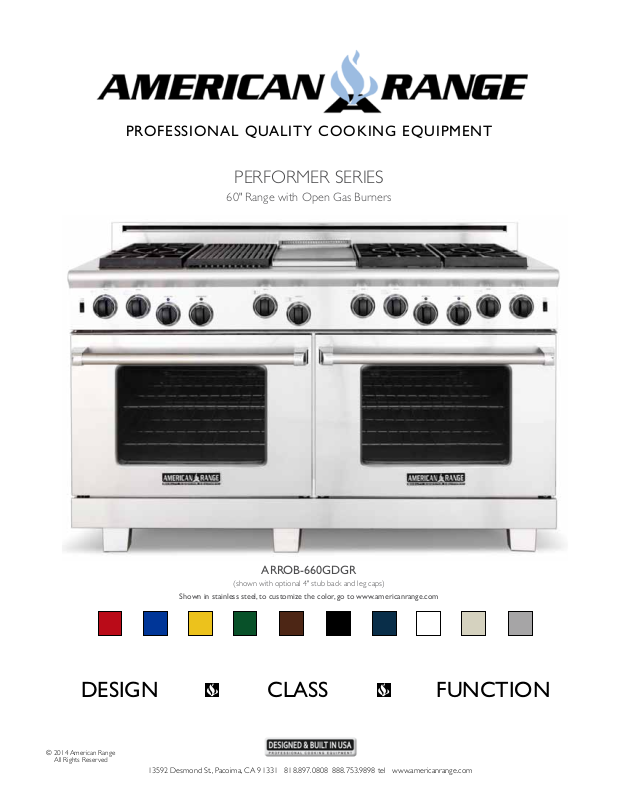

PROFESSIONAL QUALITY COOKING EQUIPMENT
DESIGN CLASS FUNCTION
PERFORMER SERIES

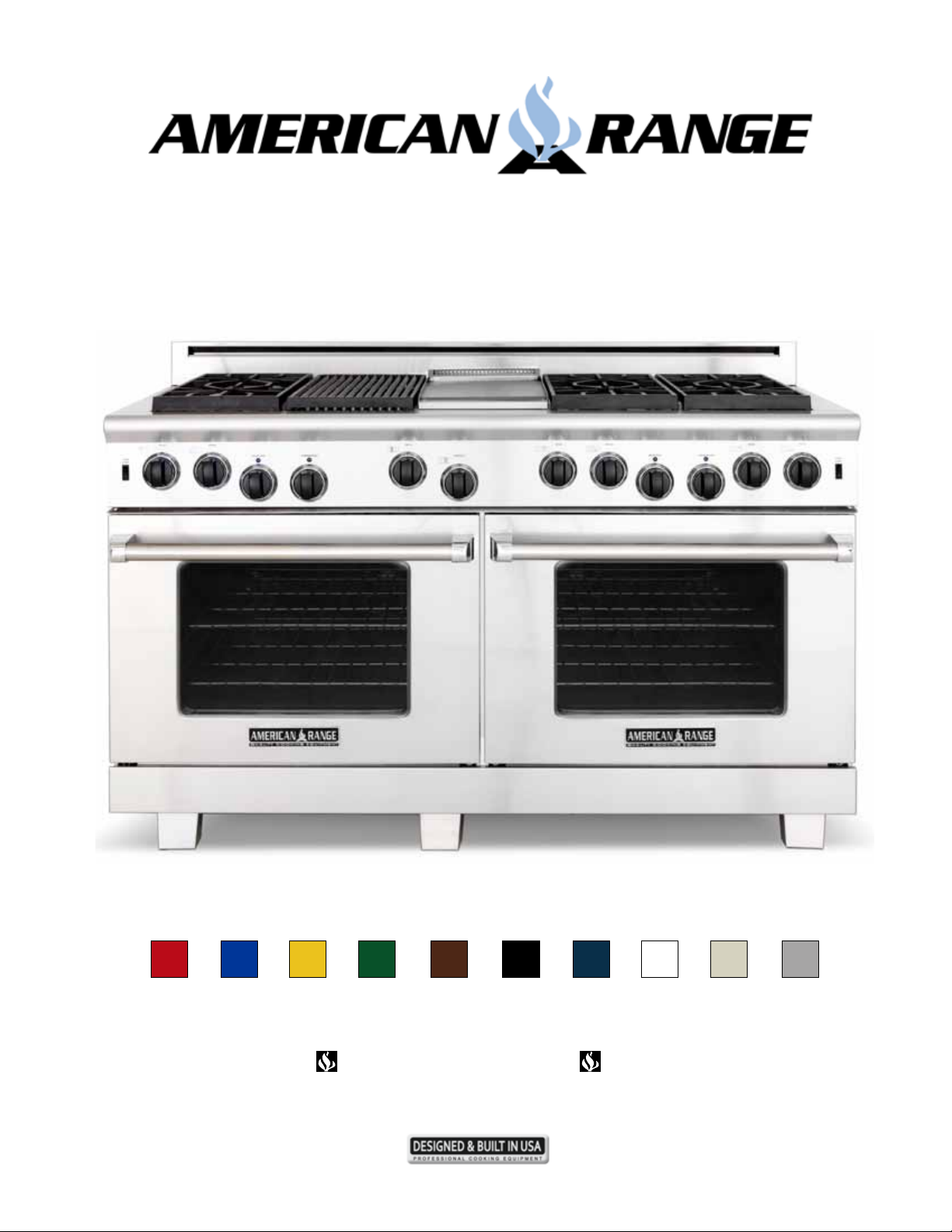

60" Range with Open Gas Burners
ARROB-660GDGR
(shown with optional 4" stub back and leg caps)
Shown in stainless steel, to customize the color, go to www.americanrange.com
© 2014 American Range
All Rights Reserved
13592 Desmond St., Pacoima, CA 91331 818.897.0808 888.753.9898 tel www.americanrange.com
Page 2

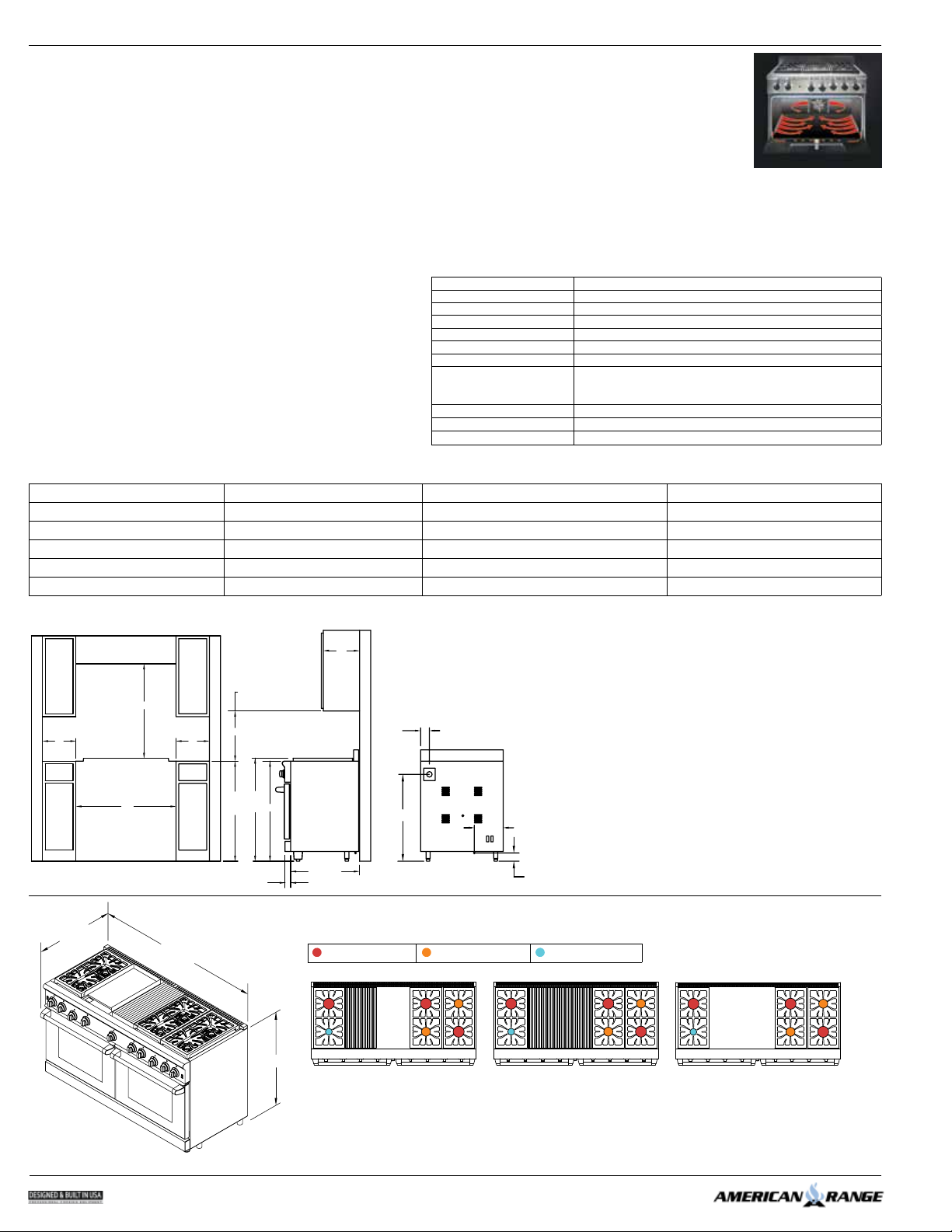

60" RESIDENTIAL GAS RANGE
ARR-6062GD
ARR-606GDGR
ARR-606X2GR
ARR-6062GD
ARR-606GDGR
ARR-1060
ARR-6062GD
RANGE TOP FEATURES
• True commercial lift-off burners for easy cleaning
• 3 sizes of burners to serve your everyday needs:
25,000 BTU (lg), 18,000 BTU (med) and 12,000 BTU (sm)
• Variable innite ame settings for all open top burners
• Automatic, electronic ignition with fail-safe system ensures, re-ignition in
the event the ame goes, out even on the lowest burner setting
• Continuous commercial-grade cast iron grates
• Porcelainized burner pans catch spills and lift out for easy cleaning
• Analog controls provide easy, push to turn operation ensuring child safety
• Blue LED light indicates oven functions
• Heavy duty metal die-cast black satin knobs with chrome bezels
• Stainless Steel Island Back Trim included and installed
• Front panel switch controls oven lighting for optimal visibility
• One piece durable precision frame construction oven front
OVEN FEATURES
• Multiple functions include: Standard Bake, Convection Bake,
Infrared Broil and Fan modes
• Convection system optimizes uniform air ow
• Two chrome plated heavy duty racks with 4 positions
on heavy chrome side supports
• Accommodates full size commercial sheet pan
• Ceramic Infrared Broiler provides rapid searing at 1,800ºF
• Quick Preheat times & uniform cooking temp. with 28,000 BTU Bake Burner
• Extra-large viewing window in oven door
• Porcelainized oven interior simplies cleaning
ACCESSORIES AND OPTIONS
Island back (standard) ARR-60SIB-P 12" Cutting Board ARR-CUTB12-P 24" Grill Cover ARR-GRCOV24-P 22" Chrome Griddle w/ Separator MCSP-P
Island back (welded) ARR-60IB-P 12" Griddle Cover ARR-GDSCOV12-S-P 11" Chrome Flat Griddle Plate MC11-FS-P Porcelainized Broiler Pan R31005
4" Stub Back ARR-604SB-P 12" Grill Cover ARR-GRCOV12-S-P 11" Chrome Grooved Griddle Plate MC11-GG-P Wok Adapter ARR-WOK-P
20" High back w/ Shelf ARR-6021HBS-P 12" Griddle Plate ARR-PGP12-P 22" Chrome Flat Griddle Plate MC22-FS-P Ex t r a Ove n Rac k 30" Oven R31 0 13
S/S Curb base ARR-60CB-P 24" Griddle Plate ARR-PGP24-P 22" Chrome L- Flat R - Grooved Griddle MC-HG-P
Stainless Steel Leg Caps (3) ARR-3LC-P 24" Griddle Cover ARR-GDCOV24-S-P 22" Chrome Grooved Griddle MCGG-P
N =Natural gas Must ship from factory with proper gas type.
COMBUSTIBLE MATERIAL
30" TO VENTILATION HOOD
MIN
COOKING
SURFACE
TO COMBUSTIBLE
MATERIAL OR
BOTTOM OF
VENTILATION
MIN COMBUSTIBLE
MATERIAL
6"
36"
HOOD
COOKING SURFACE
MIN COMBUSTIBLE
MATERIAL
6"
L= LP Gas Must provide N or L after model number for type of gas needed. Example: ARROB-6602GD-L Must specify elevation if over 1000 ft. when ordering.
13"
CABINET
DEPTH
MIN COMBUSTIBLE
TO COOKING SURFACE
ISLAND TRIM REQUIRES
18”
10" MINIMUM DISTANCE
FROM REAR
COMBUSTIBLE WALL
2-1/4"
CONVECTION OVEN TECHNOLOGY
Balanced turbulent heat distribution is essential when baking,
roasting food.
The American Range convection oven technology features a
convection motor and louvered side panels to enhance uniform
heat distribution throughout the large oven cavity.
The strategic placement of the convection fan ensures consistent
heat distribution even when challenged with cooking the largest
turkey, ham or roast.
CONVECTION OVEN IS GREEN TECHNOLOGY
The highly efcient design of the Convection Oven uses
less gas versus a standard oven
.
TECHNICAL SPECIFICATIONS
Overall Oven Capacity 4.4 CU. FT. each oven
Oven Dimensions 26-1/2" W x 19" D x 15" H each oven
Surface Burner Rating 25,000 BTU (lg) - 18,000 BTU (md) - 12,000 BTU (sm)
Griddle Burner Rating 20,000 BTU for every 11" section
Grill Burner Rating 18,000 BTU for every 11" section
Infrared Broiler 17,000 BTU each oven
Oven Bake Burner 28,000 BTU each oven
Total Gas Connection Rating
per model #
ARROB-6602GD
ARROB-660GDGR
ARROB-660X2GR
219,000 BTU
217,000 BTU
215,000 BTU
6 burners & double griddle
6 burners, griddle & grill
6 burners & double grill
Gas Supply 7" W.C. Natural, 11" W.C. Propane
Electrical Supply 120 VAC 15 AMP 60 Hz Single Phase
Shipping Weight 780 Lbs
* ADJUSTABLE + 1-1/4”
ISLAND OR PENINSULA INSTALLATIONS 10'' MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE SURFACE ISLAND TRIM IS 0''.
CLEARANCE TO NON COMBUSTIBLE SURFACE NO SIDE WALL ABOVE COOKING SURFACE.
A MANUAL GAS SHUT-OFF VALVE MUST BE INSTALLED EXTERNAL TO THE APPLIANCE, IN A LOCATION ACCESSIBLE FROM THE FRONT, FOR
THE PURPOSE OF SHUTTING OFF THE GAS SUPPLY. THE SUPPLY LINE MUST NOT INTERFERE WITH THE BACK OF THE UNIT.
GAS CONNECTION
R70408 07212014
30-1/2"
37-3/4"
36"
*
36-1/2"
*
2-1/2"
24-1/4"
30"
11"
ELECTRIC CONNECTION
3-1/2"
BURNER CONFIGURATIONS
25,000 BTU (lg) 18,000 BTU (md) 12,000 BTU (sm)
60"
59-7/8"
36-1/2"
ARROB-660GDGR ARROB-660X2GR ARROB-6602GD
ARR-660GDGR
