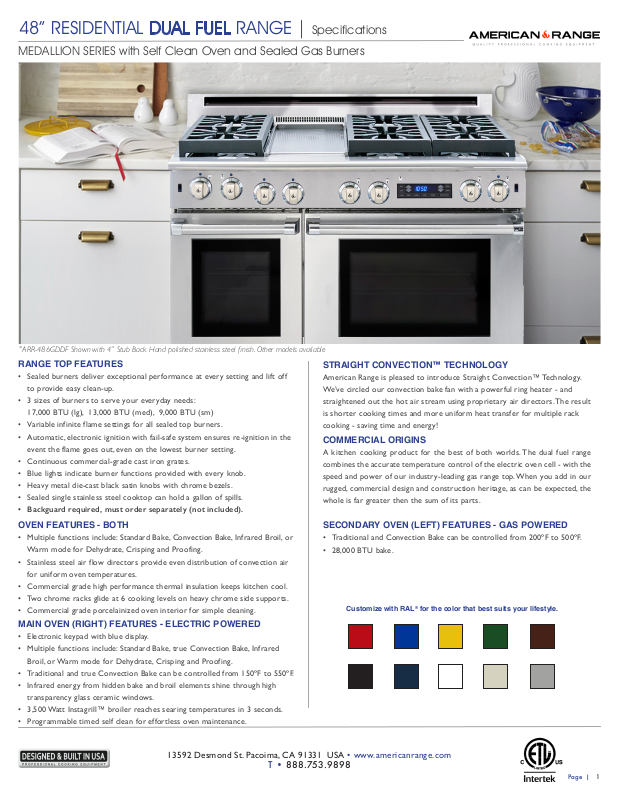

48” RESIDENTIAL DUAL FUEL RANGE | Specifications

MEDALLION SERIES with Self Clean Oven and Sealed Gas Burners

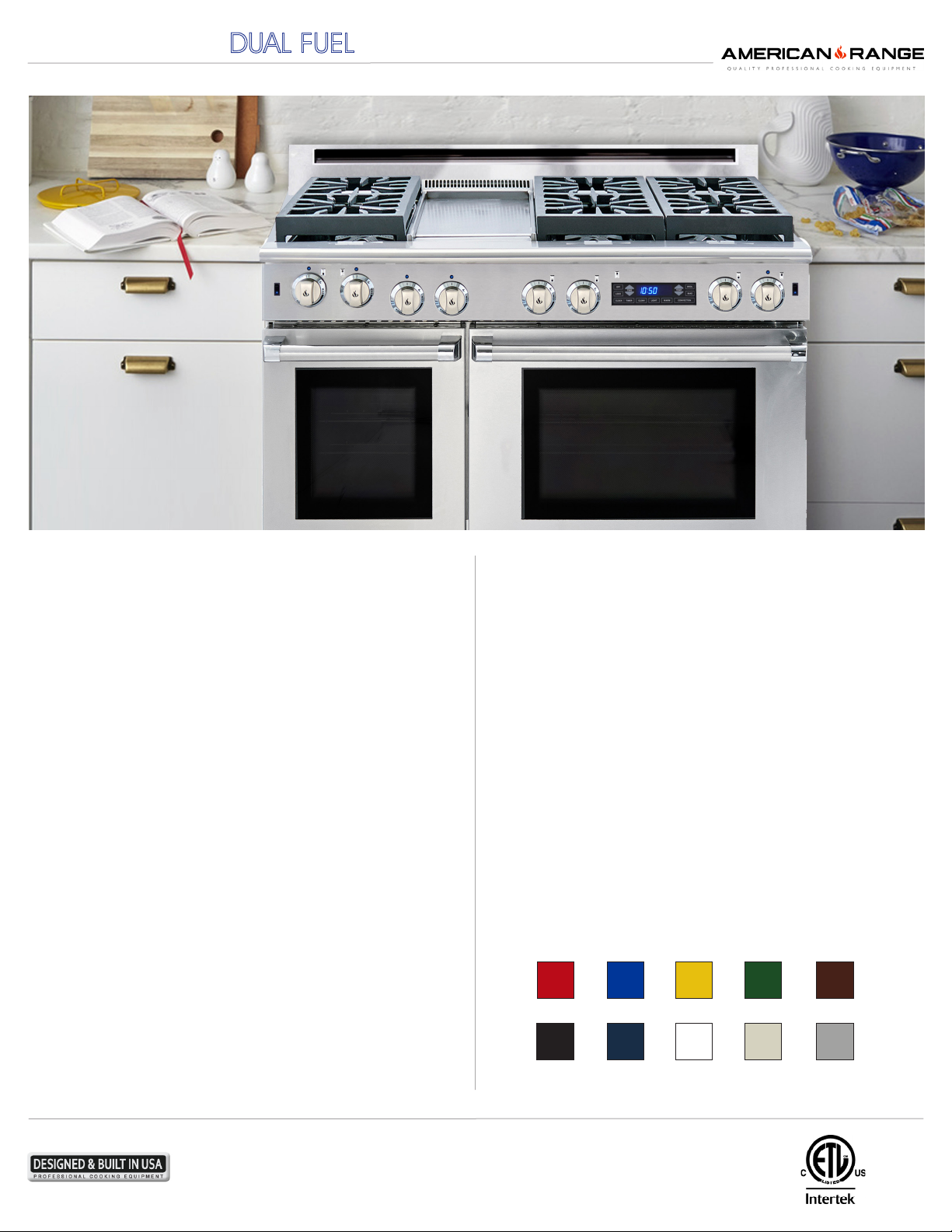

ARR-486GDDF Shown with 4” Stub Back Hand polished stainless steel nish. Other models available

RANGE TOP FEATURES

• Sealed burners deliver exceptional performance at every setting and lift off

to provide easy clean-up.

• 3 sizes of burners to serve your everyday needs:

17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm)

• Variable infinite flame settings for all sealed top burners.

• Automatic, electronic ignition with fail-safe system ensures re-ignition in the

event the flame goes out, even on the lowest burner setting.

• Continuous commercial-grade cast iron grates.

• Blue lights indicate burner functions provided with every knob.

• Heavy metal die-cast black satin knobs with chrome bezels.

• Sealed single stainless steel cooktop can hold a gallon of spills.

• Backguard required, must order separately (not included).

OVEN FEATURES - BOTH

• Multiple functions include: Standard Bake, Convection Bake, Infrared Broil, or

Warm mode for Dehydrate, Crisping and Proofing.

• Stainless steel air flow directors provide even distribution of convection air

for uniform oven temperatures.

• Commercial grade high performance thermal insulation keeps kitchen cool.

• Two chrome racks glide at 6 cooking levels on heavy chrome side supports.

• Commercial grade porcelainized oven interior for simple cleaning.

MAIN OVEN (RIGHT) FEATURES - ELECTRIC POWERED

• Electronic keypad with blue display.

• Multiple functions include: Standard Bake, true Convection Bake, Infrared

Broil, or Warm mode for Dehydrate, Crisping and Proofing.

• Traditional and true Convection Bake can be controlled from 150ºF to 550ºF.

• Infrared energy from hidden bake and broil elements shine through high

transparency glass ceramic windows.

• 3,500 Watt Instagrill™ broiler reaches searing temperatures in 3 seconds.

• Programmable timed self clean for effortless oven maintenance.

STRAIGHT CONVECTION™ TECHNOLOGY

American Range is pleased to introduce Straight Convection™ Technology.

We’ve circled our convection bake fan with a powerful ring heater - and

straightened out the hot air stream using proprietary air directors. The result

is shorter cooking times and more uniform heat transfer for multiple rack

cooking - saving time and energy!

COMMERCIAL ORIGINS

A kitchen cooking product for the best of both worlds. The dual fuel range

combines the accurate temperature control of the electric oven cell - with the

speed and power of our industry-leading gas range top. When you add in our

rugged, commercial design and construction heritage, as can be expected, the

whole is far greater then the sum of its parts.

SECONDARY OVEN (LEFT) FEATURES - GAS POWERED

• Traditional and Convection Bake can be controlled from 200ºF to 500ºF.

• 28,000 BTU bake.

Customize with RAL® for the color that best suits your lifestyle.

13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com

T • 888.753.9898

Page |

Page 2

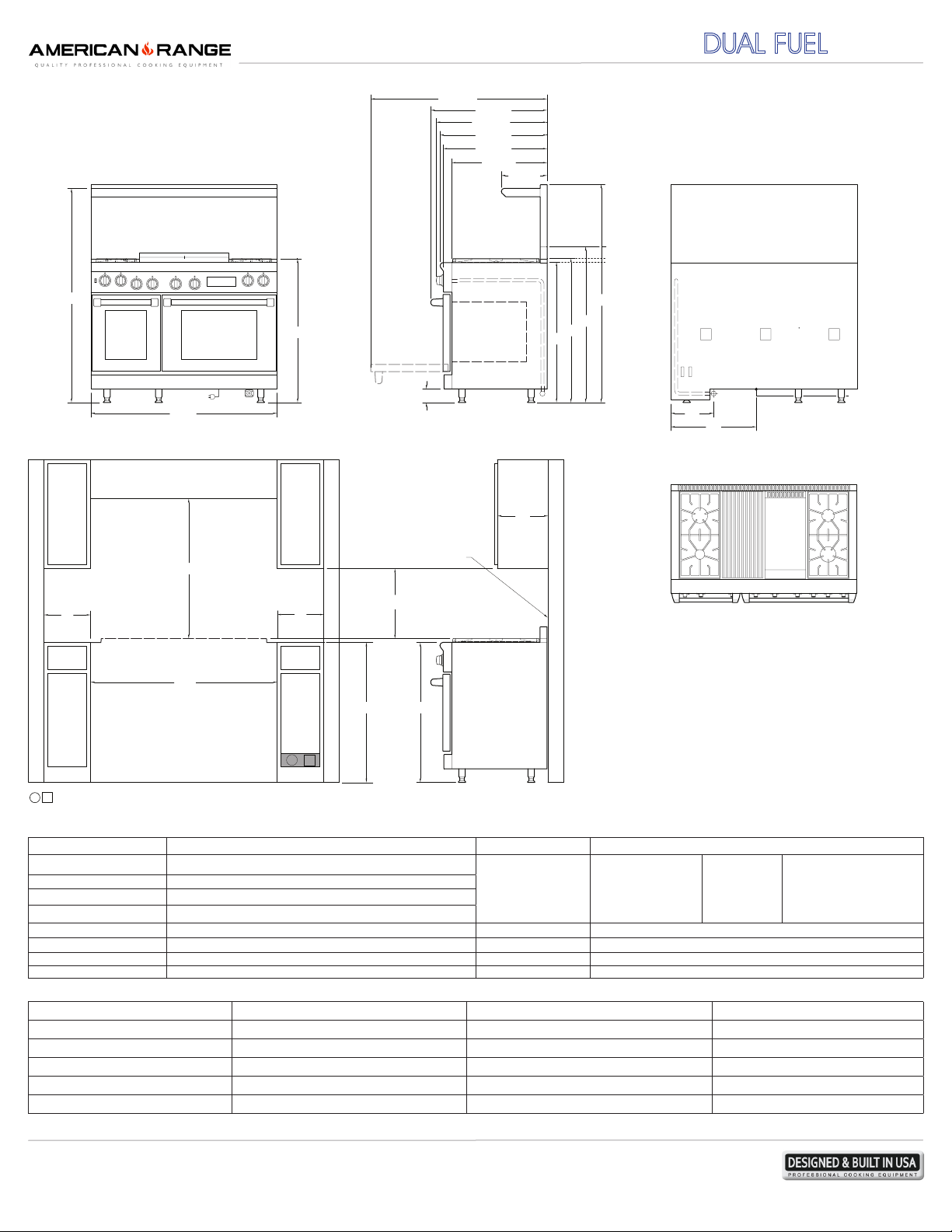

Specifications | 48” RESIDENTIAL DUAL FUEL RANGE

DEPTH TO OVEN DOOR

45 3/8"

RECOMMENDED LOC ISLAND OR PENINSULA INS

SCALE: NOT TO SCALE

PLATE SHELF

55"

30" TO VENTILLATION HOOD

36" MIN COOKING

SURFACE TO

COMBUSTIBLE

MATERIAL OR

30" to BOTTOM OF

VENTILATION HOOD

MIN COMBUSTIBLE MATERIAL

7/8

" 11"

OVERALL WIDTH

FRONT VIEW

COMBUSTIBLE MATERIAL

36"

COOKING SURFACE

OVERALL HEIGHT COOKING SURFACE

37"

MIN COMBUSTIBLE

MATERIAL

6"6"

MEDALLION SERIES with Self Clean Oven and Sealed Gas Burners

DEPTH TO HANDLE DEPTH TO KNOB DEPTH TO BULL-NOSE

DEPTH TO CONTROL PANEL

DEPTH TO COOKTOP DEPTH TO SHELF

11 3/4"

37"

36"

13"

WITH 20" RISER

WITH 4" RISER ISLAND TRIM BULL-NOSE

1/16

22"

GAS INLET

ELECTRICAL CONNECTION WITH ATTACHED ELECTRICAL CORD

REAR VIEW

ARR-484GDGRDF

TOP VIEW

1/2

LEGS ALLOW +1" ADJUSTMENT

REQUIRES 10" MINIMUM

ISLAND TRIM

DISTANCE FROM REAR

COMBUSTIBLE WALL

IN. MIN COMBUSTIBLE

18"

TO COOKING SURFACE

29 7/8"

28 1/2"

27 1/2" 26 5/8"

24 1/2"

30" - 4.3 C.F. 18" - 2.4 C.F.

SIDE VIEW

CABINET DEPTH

48"

FINISHED OPENING WIDTH

36"

* ADJUSTABLE + 1”

ATION OF GAS AND ELECTRICAL SUPPLY

TALLATIONS 10" MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE SURFACE. ISLAND TRIM 0 IN. CLEARANCE TO NON COMBUSTIBLE SURFACE. NO SIDE WALL ABOVE COOKING SURFAC

BULL-NOSE

COUNTERTOP

A manual gas shut-off valve must be installed external to the appliance, in a location accessible from the front, for the purpose of shutting off the gas supply. This is a

vented appliance. To be used in conjunction with a suitable vent hood only.

TECHNICAL SPECIFICATIONS

Overall Oven Capacity 2.4 CU. FT. (18” oven) - 4.3 CU. FT. (30” oven) Infrared Broiler Burner 18,000 BTU - (18” oven)

Oven Dimensions

Surface Burner Rating 17,000 BTU (lg) - 13,000 BTU (md) - 9,000 BTU (sm)

Griddle Burner Rating 20,000 BTU - every 11” section Grill Burner Rating 18,000 BTU - every 11” section Infrared Broiler Element 3,500 Watts - (30” oven) Gas Supply 7” W.C. Natural, 11” W.C. Propane

Oven Bake Burner Element 2,200 Watts - (30” oven) Electrical Supply 240 VAC 30amp 60 Hz Single Phase Convection Ring Element 2,200 Watts - (30” oven) Shipping Weight 680 Lbs. Oven Bake Burner 30,000 BTU - (18” oven)

14-1/2” W x 19” D x 15” H (18” oven) 26” W x 19” D x 15” H (30” oven)

Total Gas Connection Rating per model #

ARR-486GDDF ARR-486GRDF ARR-4842GDDF ARR-484X2GRDF ARR-484GDGRDF

136,000 BTU 134,000 BTU 126,000 BTU 122,000 BTU 124,000 BTU

6 burner and griddle 6 burners and grill 4 burners, double griddle 4 burners, double grill 4 burners, griddle and grill

ACCESSORIES AND OPTIONS

1” Island back (standard) ARR48SIB-M 12” Griddle Cover ARRGDSCOV12S-M 12” Cutting Board ARRCUTB12-M 22” CR Griddle w/ Separator MC22-SP-M

1” Island back (welded) ARR48IB-M 12” Grill Cover ARRGRCOV12S-M 11” Chrome Flat Griddle Plate MC11FS-M Extra Oven rack 30” R31007

4” Stub Back ARR484SB-M 12” Griddle Plate ARRPGP12-M 11” Chrome Grooved Griddle Plate MC11-GG-M Wok Adapter ARR-WOK-M

21” High back w/ Shelf ARR4821HBS-M 24” Griddle Plate ARRPGP24-M 22” Chrome Flat Griddle Plate MC22FS-M Porcelainized Broiler Pan R31005

Stainless Steel Leg Caps (3) ARR3LC-M 24” Griddle Cover ARR-GDCOV24-S-M 22” Chrome L- Flat R - Grooved Griddle MC-HG-M

S/S Curb base ARR48CB-M 24” Grill Cover Flue Applicable ARRGRCOV24-M 22” Chrome Grooved Griddle MC22-GG-M

**The American Range Company continually improves its products and reserves the right to change materials, specications and dimensions without notice. This unit is manufactured for residential use only.

| Page

13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com

T • 888.753.9898

Page 3

48” RESIDENTIAL DUAL FUEL RANGE | Specifications

MEDALLION SERIES with Self Clean Oven and Sealed Gas Burners

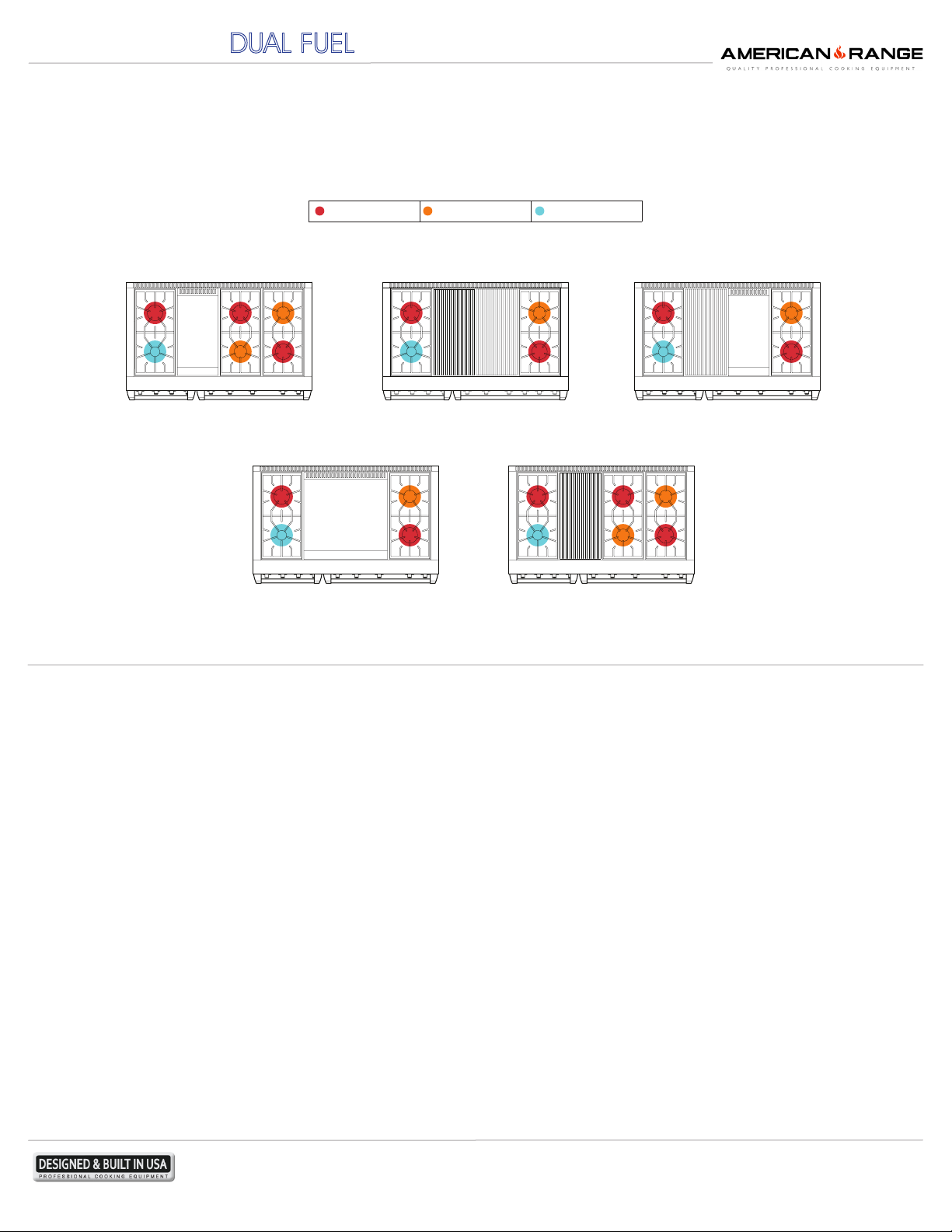

BURNER CONFIGURATIONS

17,000 BTU (lg) 13,000 BTU (md) 9,000 BTU (sm)

ARR-486GDDF

ARR-4842GDDF

SCALE: NOT TO SCALE

ARR-484X2GRDF ARR-484GDGRDF

ARR-486GRDF

MUST SHIP FROM FACTORY WITH PROPER GAS TYPE

N=Natural gas L= LP Gas. Must provide N or L after model number for type of gas needed. Example: ARR-486GDDF-L. Must specify elevation if over 2000 ft. when ordering.
