PROFESSIONAL QUALITY COOKING EQUIPMENT
DESIGN CLASS FUNCTION
MEDALLION SERIES
36” Range with Dual Fuel Self Clean Oven and Sealed Gas Burners

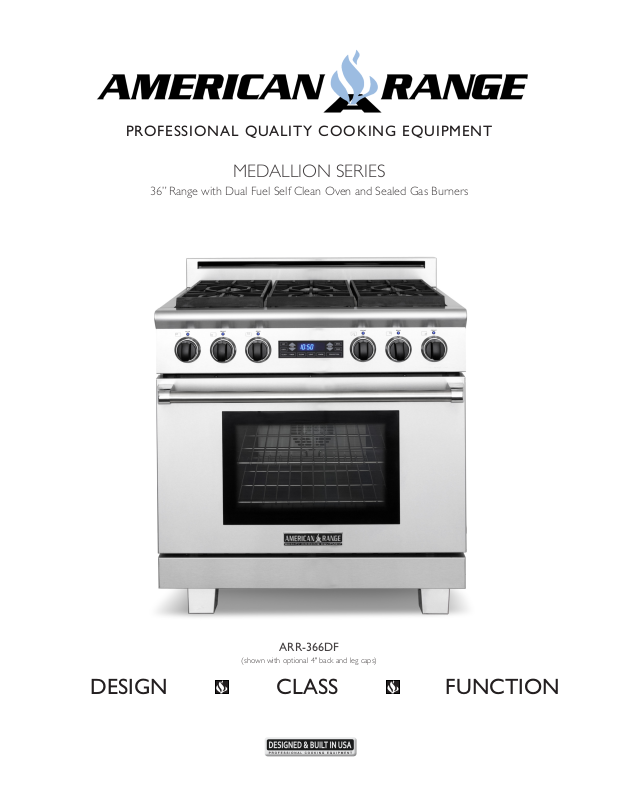

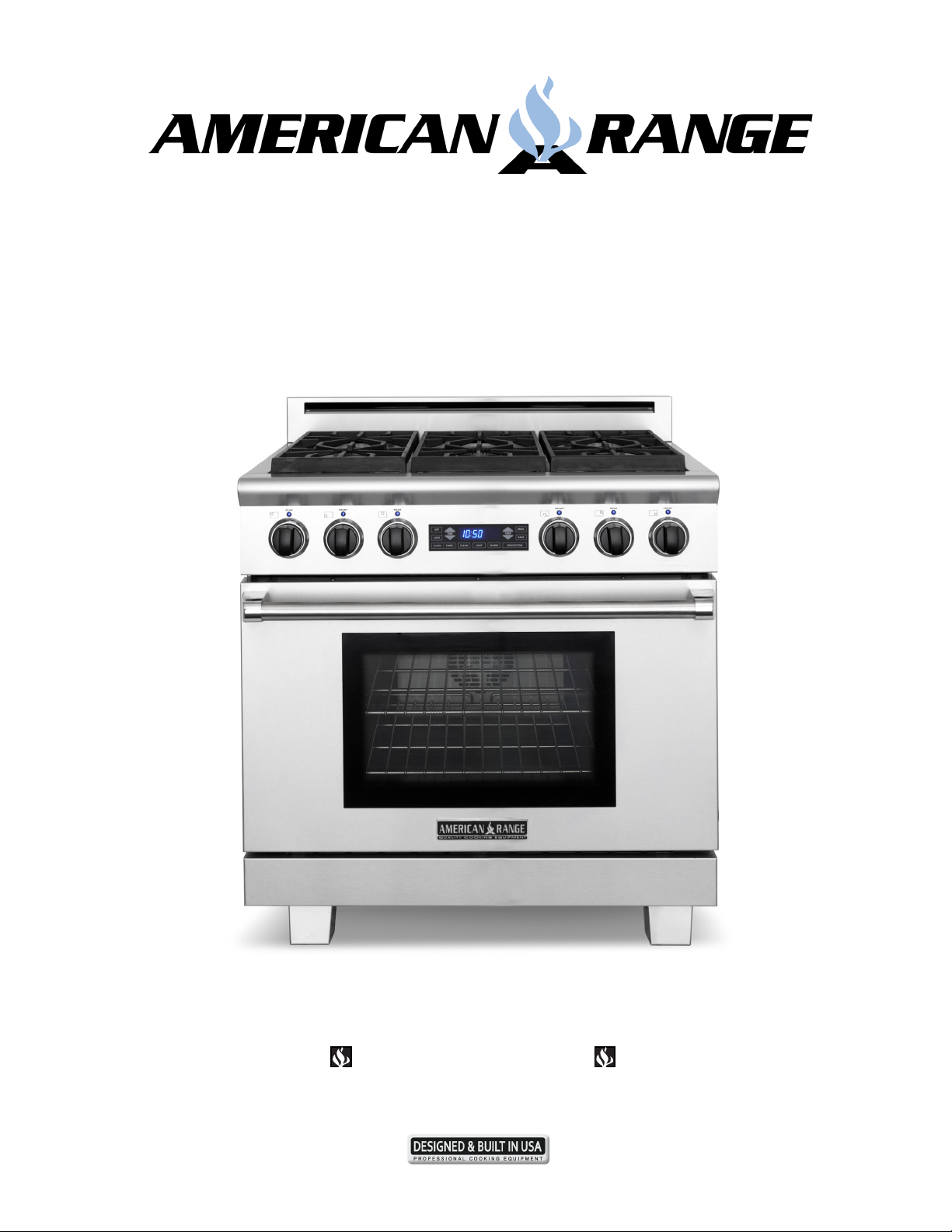

ARR-366DF
(shown with optional 4" back and leg caps)

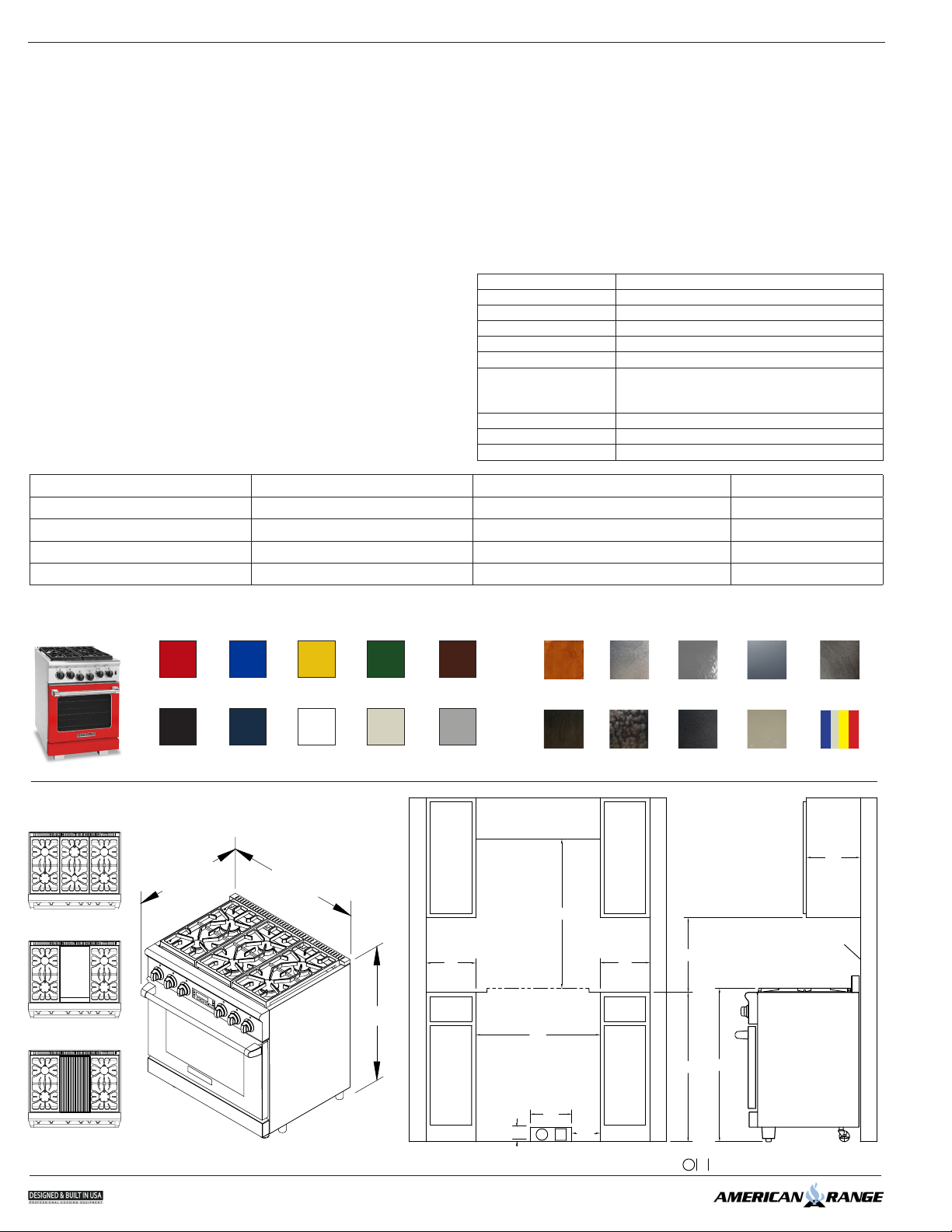

Page 2
36” RESIDENTIAL DUAL FUEL RANGE
Porcelain
Jitterbug
Hammered
Mirrored
Blackened
Oil Rubbed
Textured Flat
Oil Rubbed
RANGE TOP FEATURES
• Sealed burners deliver exceptional performance at
every level setting and lift off to provide easy clean-up
• 3 sizes of burners to serve your everyday needs:
17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm)
• Variable innite ame settings for all sealed top burners
• Fail-safe system ensures re-ignition in the event the ame goes out
• Continuous and ush commercial-grade cast iron grates allow for
easy transfer of pots and pans across the entire cooking surface
• Blue LED lights indicate ame and oven functions provided with every knob
• Heavy metal die-cast black satin knobs with chrome bezels
• Sealed Single Piece tooled stainless steel cook top can hold a gallon of spills
• Electronic keypad with blue VFD display
• Multiple functions include: Full Power modes for Standard Bake,
Convection Bake, Infrared Broil, or Warm modes
for Dehydrate, Crisping and Proong
OVEN FEATURES
• Traditional and Convection Bake can be controlled from 150ºF to 550ºF
• Infrared energy from hidden bake and broil elements shine
through high transparency glass ceramic windows
• 3,500 Watt InstagrillTM broiler reaches searing temperature in 3 seconds
• Stainless steel air ow directors provide even distribution
of convection air for uniform oven temperatures
• Commercial grade high performance thermal insulation keeps kitchen cool
• Two chrome racks glide at 6 (including base) cooking levels on heavy
chrome side supports
• Accommodates full size commercial sheet pan
• Commercial grade porcelainized oven interior for simple cleaning
• Programmable timed self clean for effortless oven maintenance
ACCESSORIES & OPTIONS
Island back (standard) ARR-36SIB-M S/S Leg Caps (2) ARR-2LC-M 12” Griddle Plate ARR-PGP12-M Wok Adapter ARR-WOK-M
Island back (welded) ARR-36IB-M Casters (Set of 2) ARR-2CAS-M 24” Griddle Plate ARR-PGP24-M
4” Stub Back ARR-364SB-M 12” Cutting Board ARR-CUTB-12-M 11” Chrome Flat Griddle Plate MC11-GG-M
20” High back w/ Shelf ARR-3621HBS-M 12” Griddle Cover ARR-GDSCOV12-S-M 11” Chrome Grooved Griddle Plate MC11-GG-M
S/S Curb base ARR-36CB-M 12” Grill Cover ARR-GRCOV12-S-M Porcelainized Broiler Pan R31005
CUSTOMIZE YOUR RANGE: Now you can customize your American Range to match your kitchen setting. Pick from numerous colors and nishes to
give your range a unique one-of-a-kind look. For more details regarding color and nish options, go to our website: www.americanrange.com.
DESIGNER COLORS
STRAIGHT CONVECTIONTM TECHNOLOGY
American Range is pleased to introduce Straight Convection
TM
Technology.
Borrowing from the aerospace industry, we’ve circled our convection bake fan
with a powerful ring heater - and straightened out the hot air stream using
proprietary air directors. The result is shor ter cooking times and more uniform
heat transfer for multiple rack cooking - saving time and energy!
COMMERCIAL HERITAGE
American Range introduces the new dual fuel range for the home - a kitchen
cooking product for the best of both worlds. The dual fuel range combines the
accurate temperature control of the electric oven cell - with the speed and power
of our industry-leading gas range top. When you add in our rugged, commercial
design and construction heritage, as can be expected, the whole is far greater then
the sum of its parts.
TECHNICAL SPECIFICATIONS
Overall Oven Capacity 5.7 CU. FT.
Oven Dimensions 31-3/4” W x 20-1/2” D x 15” H
Surface Burner Rating 17,000 BTU (lg) - 13,000 BTU (md) - 9,000 BTU (sm)
Infrared Broiler Element 3,500 Watts
Oven Bake Burner Element 3,500 Watts
Convection Ring Element 2,200 Watts
Total Gas Connection Rating
per model #
ARR-636 86,000 BTU 6 burners
ARR-436-GD 76,000 BTU 4 burners and griddle
ARR-436-GR 74,000 BTU 4 burners and grill
Gas Supply 7” W.C. Natural, 11” W.C. Propane
Electrical Supply 240 VAC 30 AMP 30 AMP 60Hz
Shipping Weight 453 Lbs
DESIGNER FINISHES
Crimson Red
Raven Black
N = Natural gas Must ship from factory with proper gas type
L = LP Gas Must provide N or L after model number for type of gas needed.
Example: ARR-304-DF-L represents unit to be build for LP gas.
Note: Must specify elevation if over 1000 ft when ordering.
Sapphire Blue
Dark Blue
Alpine White
35 - 7/8
36"
30 -1/2"
ARR-366DF
ARR-364GDDF
ARR-364GRDF
R70415
13592 Desmond St., Pacoima, CA 91331 818.897.0808 888.753.9898 tel www.americanrange.com
Yellow
"
Forest Green
Sandstone
37"
Chocolate
Gun Metal Grey
COMBUSTIBLE MATERIAL
30'' TO VENTILATION HOOD
COOKING
SURFACE
TO COMBUSTIBLE
MATERIAL OR
BOTTOM OF
VENTILATION
MIN COMBUSTIBLE
MATERIAL
COOKING SURFACE
FINISHED OPENING WIDTH
ISLAND OR PENINSULA INSTALLATIONS 10'' MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE SURFACE ISLAND TRIM IS 0''.
CLEARANCE TO NON COMBUSTIBLE SURFACE
NO SIDE WALL ABOVE COOKING SURFACE
MIN
HOOD
3-1/2''
Finish
Bronze
36''
36''
10''
