PROFESSIONAL QUALITY COOKING EQUIPMENT
TITAN SERIES

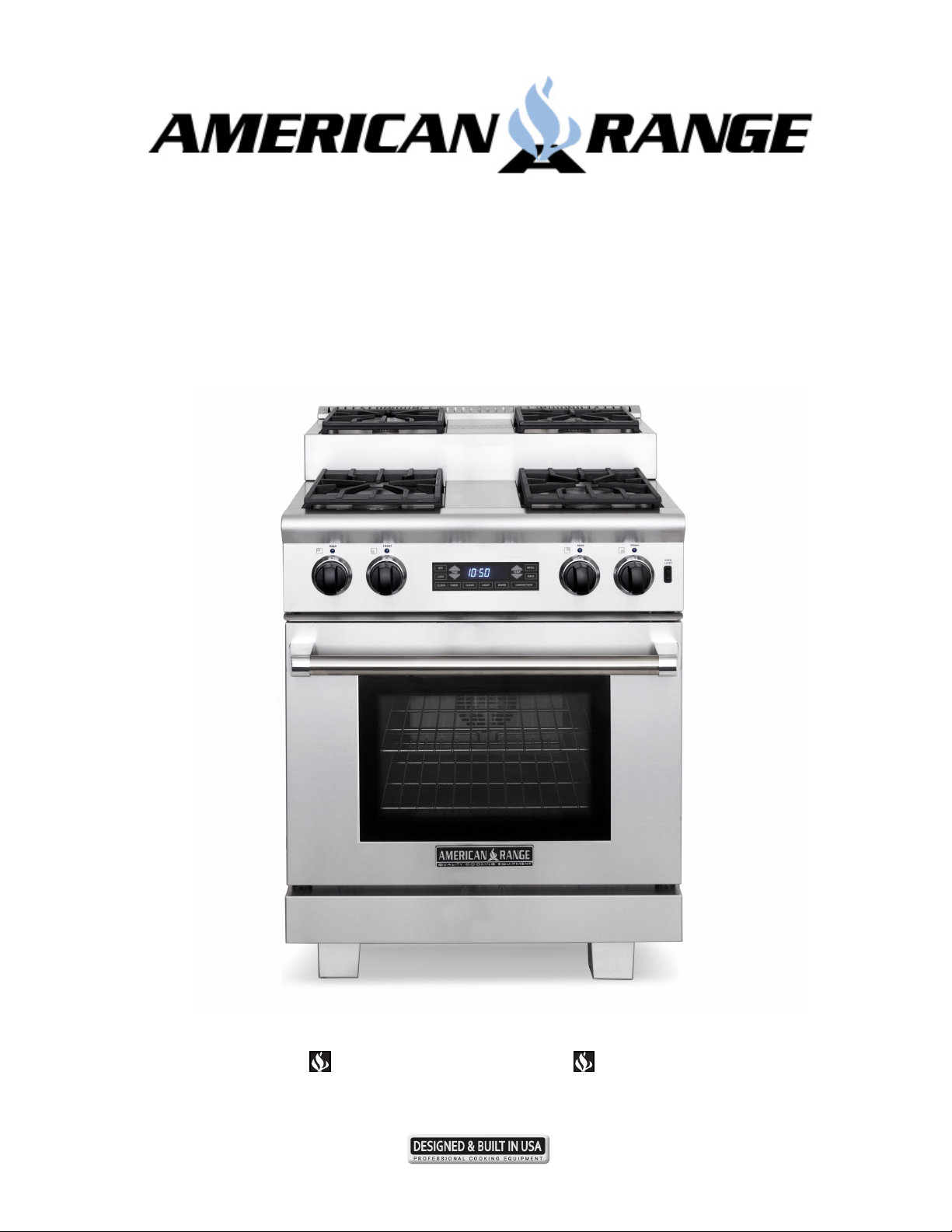

30” Dual-Fuel Range with Sealed Gas Step-up Burners
and Electric Self-Clean Oven
DESIGN
ARR-304ISDF
(shown with optional leg caps)
CLASS FUNCTION
Page 2
30” RESIDENTIAL DUAL FUEL RANGE
Porcelain
Jitterbug
Hammered
Mirrored
Blackened
Oil Rubbed
Hammered
Textured Flat
RANGE TOP FEATURES
• Step-up range provides 2 unequal levels of cooking surface
• Elevated rear burners provide easy access to sauté pans, & allow
larger pots to be used consecutively
• 3 sizes of burners to serve your everyday needs:
17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm)
• Sealed burners deliver exceptional performance at every
level setting and lift off to provide easy cleanup
• Fail-safe system ensures re-ignition in the event the
ame goes out even on the lowest burner setting
• Sealed Single Piece tooled stainless steel cook tops can hold more than a
gallon of spills
• Blue LED lights indicate ame and oven functions provided with every knob
• Heavy metal die-cast black satin knobs with chrome bezels
• Analog controls provide easy, push and turn operation ensuring child safety
• Electronic keypad with blue VFD display
OVEN FEATURES
• Commercial grade high performance thermal insulation keeps kitchen cool
• Programmable timed self clean for effortless oven maintenance
• Accommodates full size commercial sheet pan
• Two chrome racks glide at 6 cooking levels on heavy chrome side supports
• Commercial grade porcelainized oven interior for simple cleaning
• 3,500 Watt InstagrillTM broiler reaches searing temperature in 3 seconds
• Infrared energy from hidden bake and broil elements shine
through high transparency glass ceramic windows
• Stainless steel air ow directors provide even distribution
of convection air for uniform oven temperatures
• Traditional and Convection Bake can be controlled from 150ºF to 550ºF
ACCESSORIES & OPTIONS
Stainless Steel Curb base ARR-30CB-T Casters (Set of 2) ARR-2CAS-T Wok Adapter ARR-WOK-T
Stainless Steel Leg Caps (2) ARR-2LC-T Porcelainized Broiler Pan R31005
CUSTOMIZE YOUR RANGE: Now you can customize your American Range to match your kitchen setting. Pick from numerous colors and nishes to
give your range a unique one-of-a-kind look. For more details regarding color and nish options, go to our website: www.americanrange.com.
DESIGNER COLORS
STRAIGHT CONVECTIONTM TECHNOLOGY
American Range is pleased to introduce Straight Convection
Borrowing from the aerospace industry, we’ve circled our convection bake fan
with a powerful ring heater - and straightened out the hot air stream using
proprietary air directors. The result is shor ter cooking times and more uniform
heat transfer for multiple rack cooking - saving time and energy!
COMMERCIAL HERITAGE
American Range introduces the new dual fuel range for the home - a kitchen
cooking product for the best of both worlds. The dual fuel range combines the
accurate temperature control of the electric oven cell - with the speed and power
of our industry-leading gas range top. When you add in our rugged, commercial
design and construction heritage, as can be expected, the whole is far greater
then the sum of its parts.

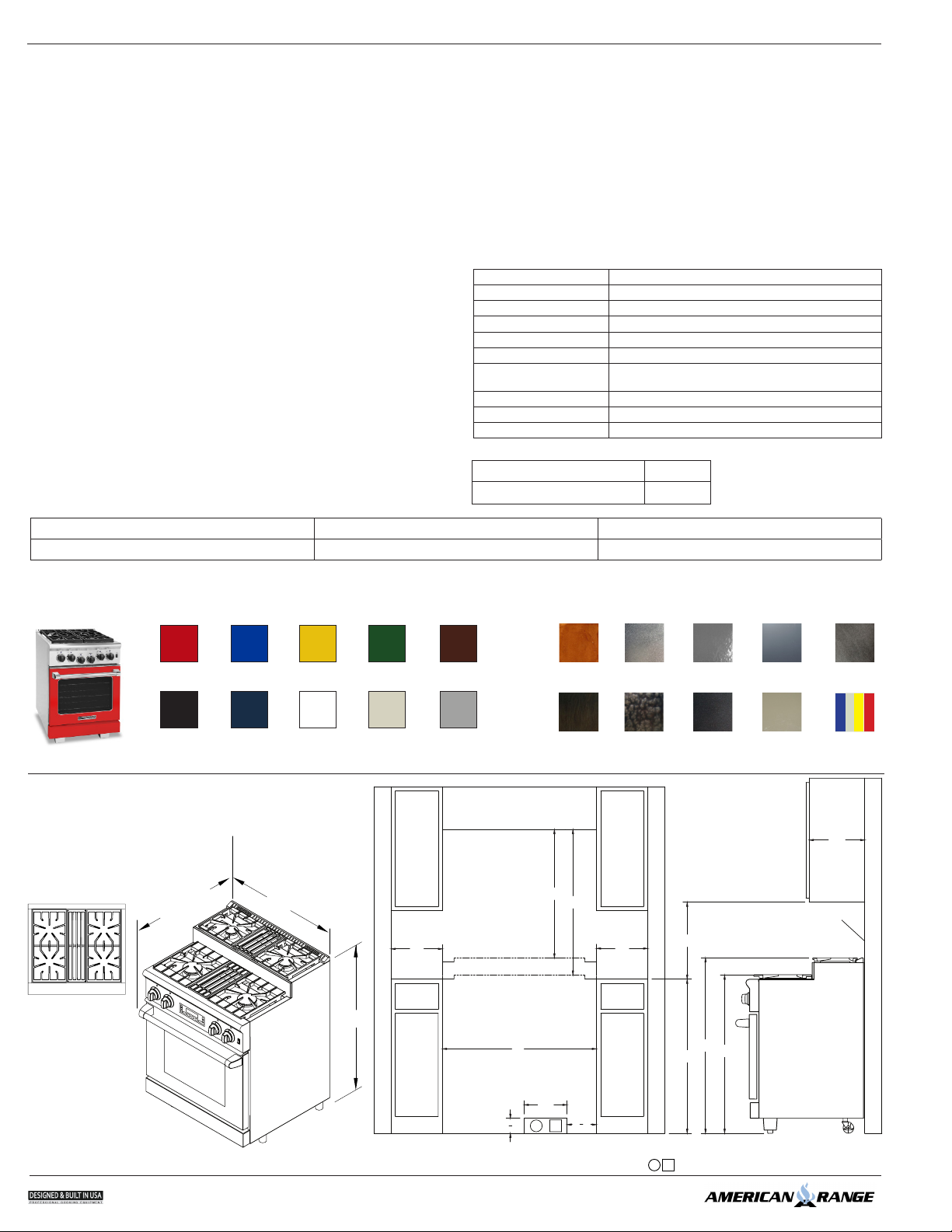

TECHNICAL SPECIFICATIONS
Overall Oven Capacity 4.7 CU. FT.
Oven Dimensions 26” W x 20-3/4” D x 15” H
Surface Burner Rating 17,000 BTU (lg) - 13,000 BTU (md) - 9,000 BTU (sm)
Infrared Broiler Element 3,500 Watts - (30” oven)
Oven Bake Burner Element 3,500 Watts - (30” oven)
Convection Ring Element 2,200 Watts - (30” oven)
Total Gas Connection Rating
per model#
ARR-304ISDF 56,000 BTU
Gas Supply 7” W.C. Natural, 11” W.C. Propane
Electrical Supply 240 VAC 30 AMP 60 Hz Single Phase
Shipping Weight 400 Lbs
COLOR KNOBS
red knobs ts: ARR-304ISDF KSR-DF30
burgundy knobs ts: ARR-304ISDF KSB-DF30
DESIGNER FINISHES
TM
Technology.
Crimson Red
Sapphire Blue
Dark Blue Alpine White Sandstone Gun Metal GreyRaven Black
N = Natural gas Must ship from factory with proper gas type
L = LP Gas Must provide N or L after model number for type of gas needed.
Example: ARR-304-DF-L represents unit to be build for LP gas.
Note: Must specify elevation if over 1000 ft when ordering.
30"
30 -1/2"
ARR-304ISDF
R70412
13592 Desmond St., Pacoima, CA 91331 818.897.0808 888.753.9898 tel www.americanrange.com
Yellow Forest Green Chocolate
30'' TO VENTILATION HOOD
COOKING SURFACE
TO COMBUSTIBLE
VENTILATION HOOD
6''
MIN
COMBUSTIBLE
MATERIAL
COOKING SURFACE
COOKING SURFACE
41"
FINISHED OPENING WIDTH
ISLAND OR PENINSULA INSTALLATIONS 10'' MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE SURFACE ISLAND TRIM IS 0''.
CLEARANCE TO NON COMBUSTIBLE SURFACE
NO SIDE WALL ABOVE COOKING SURFACE
COMBUSTIBLE MATERIAL
34'' MIN TO TOP
MATERIAL OR
BOTTOM OF
''A''
10"
1
3
"
G
2
Bronze
30
E
Finish
34
6
7
"
8
Oil Rubbed
Bronze
6''
MIN
COMBUSTIBLE
MATERIAL
S/S
Brushed S/S
Black
ISLAND TRIM REQUIRES 10'' MINIMUM
DISTANCE FROM REAR COMBUSTIBLE WALL
18'' MIN COMBUSTIBLE
TO COOKING SURFACE
18''
36''
LOCATION OF GAS AND ELECTRICAL SUPPLY
G E
41''
37''
COOKING SURFACE
COOKING SURFACE
Polished S/S
Powder
Coat Biscuit
Custom
Finishes
Available
13''
CABINET
DEPTH
Steel
