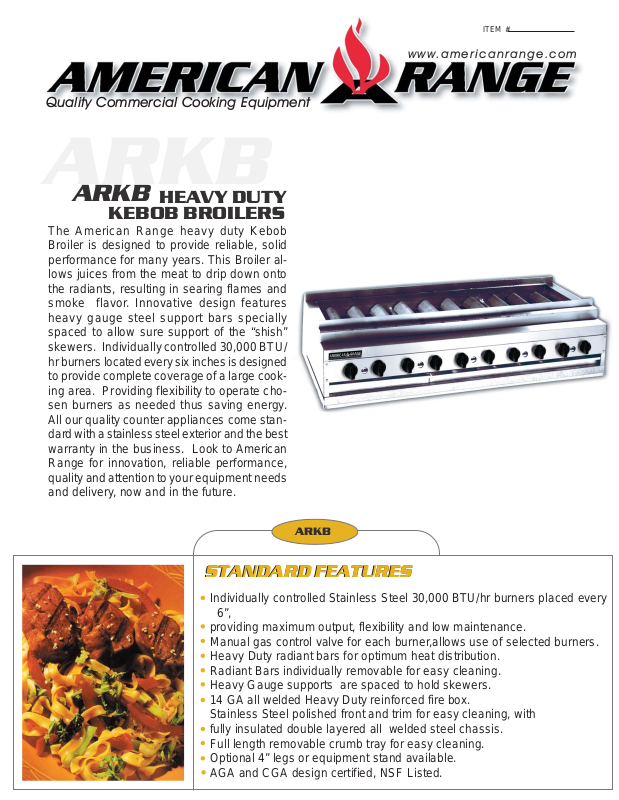

Page 1
Quality Commercial Cooking Equipment
ARKB
ITEM #
www.americanrange.com
HEAVY DUTY
ARKB
KEBOB BROILERS
The American Range heavy duty Kebob
Broiler is designed to provide reliable, solid
performance for many years. This Broiler allows juices from the meat to drip down onto
the radiants, resulting in searing flames and
smoke flavor. Innovative design features
heavy gauge steel support bars specially
spaced to allow sure support of the “shish”
skewers. Individually controlled 30,000 BTU/
hr burners located every six inches is designed
to provide complete coverage of a large cooking area. Providing flexibility to operate chosen burners as needed thus saving energy.
All our quality counter appliances come standard with a stainless steel exterior and the best
warranty in the business. Look to American
Range for innovation, reliable performance,
quality and attention to your equipment needs
and delivery, now and in the future.
ARKB
STANDARD FEATURES
STANDARD FEATURES
Individually controlled Stainless Steel 30,000 BTU/hr burners placed every
6”,
providing maximum output, flexibility and low maintenance.
Manual gas control valve for each burner,allows use of selected burners.
Heavy Duty radiant bars for optimum heat distribution.
Radiant Bars individually removable for easy cleaning.
Heavy Gauge supports are spaced to hold skewers.
14 GA all welded Heavy Duty reinforced fire box.
Stainless Steel polished front and trim for easy cleaning, with
fully insulated double layered all welded steel chassis.
Full length removable crumb tray for easy cleaning.
Optional 4” legs or equipment stand available.
AGA and CGA design certified, NSF Listed.
Page 2
HEAVY DUTY KEBOB BROILERHEAVY DUTY KEBOB BROILER
HEAVY DUTY KEBOB BROILER
HEAVY DUTY KEBOB BROILERHEAVY DUTY KEBOB BROILER
RADIANT KEBOB BROILER
ARKB
Series
MODEL
WIDTH DEPTH HEIGHT
BURNERS TOTAL BTU KW
SHIP. WT. Lbs.
ARKB-24 24” 25 1/8” 11 1/4” 4 120,000 35.16 325
ARKB-30 30” 25 1/8” 1 1 1/4” 5 150,000 43.96 350
ARKB-36 36” 25 1/8” 1 1 1/4” 6 180,000 52.75 395
ARKB-48 48” 25 1/8” 1 1 1/4” 8 240,000 70.34 490
ARKB-60 60” 25 1/8” 1 1 1/4” 10 300,000 87.92 550
ARKB-72 72” 25 1/8” 1 1 1/4” 12 360,000 105.5 610
STANDARD FEATURES
Individually controlled Stainless S teel 30,000 BTU burners placed every
6”, (152) providing maximum output, flexibility and low maintenance.
Manual gas control valve for each burner, allows use of selected burners.
Heavy Duty radiant bars for optimum heat distribution.
Radiant Bars individually removable for easy cleaning.
Heavy Gauge supports are spaced to hold skewers.
OPTIONS
Rotisserie Available.
S/S equipment stand.
Sectional top grates.
Quick disconnect.
S/S shish kebob skewers.
S/S cover.
14 GA all welded Heavy Duty reinforced fire box.
St ainless Steel polished front and trim for easy cleaning with
fully insulated double layered all welded steel chassis.
Full length removable crumb tray for easy cleaning.
AGA and CGA design certified, NSF Listed.
One Y ear Limited W arranty , parts and labor.
Kg.
147
150
179
222
249
276
GasGas
Gas: Manifold pressure is 5.0” W.C. for natural gas or 10.0” W.C. for propane gas Specify type of gas and altitude if over 2000 feet.3/4” NPT Gas inlet.
GasGas
ClearancesClearances
Clearances: For use in non combustible locations only, Clearance to non combustible construction 0” sides and rear.
ClearancesClearances
American RAmerican R
American R
American RAmerican R
improvements these specifications are subject to change without prior notice.
ange Corporation ange Corporation
ange Corporation is a quality manufacturer of commercial cooking equipment. Because of continuing product
