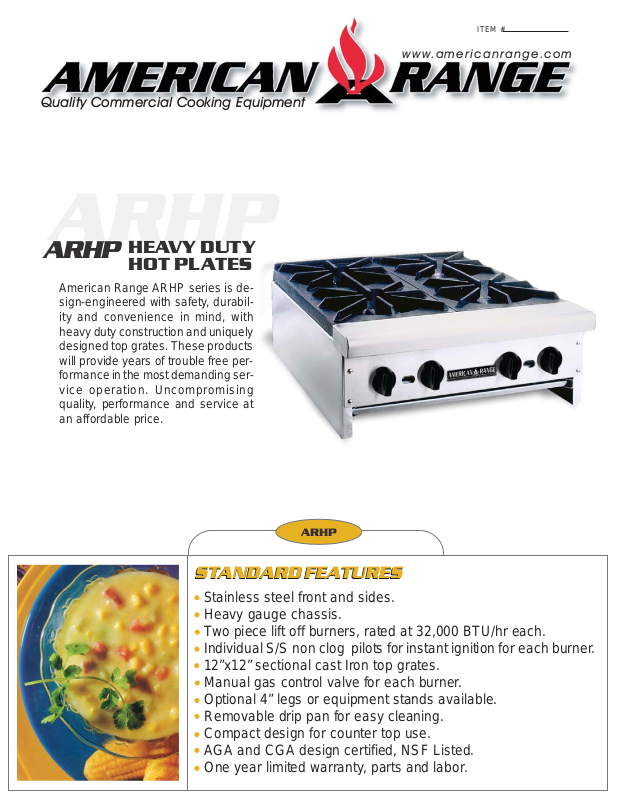

Page 1
Quality Commercial Cooking Equipment
ARHP
HEAVY DUTY
HOT PLATES
ARHP
American Range ARHP series is design-engineered with safety, durability and convenience in mind, with
heavy duty construction and uniquely
designed top grates. These products
will provide years of trouble free performance in the most demanding service operation. Uncompromising
quality, performance and service at
an affordable price.
ITEM #
www.americanrange.com
ARHP
STANDARD FEATURES
STANDARD FEATURES
Stainless steel front and sides.
Heavy gauge chassis.
Two piece lift off burners, rated at 32,000 BTU/hr each.
Individual S/S non clog pilots for instant ignition for each burner .
12”x12” sectional cast Iron top grates.
Manual gas control valve for each burner.
Optional 4” legs or equipment stands available.
Removable drip pan for easy cleaning.
Compact design for counter top use.
AGA and CGA design certified, NSF Listed.
One year limited warranty, parts and labor.
Page 2
HEAHEA
HEA
HEAHEA
VY DUTY HOT PLVY DUTY HOT PL
VY DUTY HOT PL
VY DUTY HOT PLVY DUTY HOT PL
AA
A
AA
TETE
TE
TETE
ARHP / SUHP
Series
ARHP12-1 ARHP24-2
ARHP36-3
ARHP48-4
ARHP122
ARHP24-4
ARHP36-6
ARHP60-10ARHP48-8
HEAVY DUTY HOT PLATES
MODEL
BURNERS TOTAL BTU KW SHIP. WT. Lbs.WIDTH DEPTH HEIGHT Kg.
ARHP12-1 12” 18” 10” 1 32,000 9.37 51
ARHP12-2 12” 30” 10” 2 64,000 18.75 85
ARHP24-2 24” 18” 10” 2 64,000 18.75 85
ARHP24-4 24” 30” 10” 4 128,000 37.51 140
ARHP36-3 36” 18” 10” 3 96,000 28.13 115
ARHP36-6 36” 30” 10” 6 192,000 56.27 210
ARHP48-4 48” 18” 10” 4 128,000 37.75 140
ARHP48-8 48” 30” 10” 8 256,000 75.02 270
ARHP60-10 60” 30” 10” 10 320,000 93.78 325
STEP-UP HOT PLATES
MODEL
BURNERS TOTAL BTU KW SHIP. WT. Lbs.WIDTH DEPTH HEIGHT Kg.
SUHP12-2 12” 30” 14” 2 32,000 9.37 85
SUHP24-4 24” 30” 14” 4 128,000 18.75 140
SUHP36-6 36” 30” 14” 6 192,000 18.75 210
SUHP48-8 48” 30” 14” 8 256,000 37.51 270
STANDARD FEATURES
Heavy Stainless Steel Front and Sides.
Heavy Gauge Chassis.
Heavy duty 12” (305) x 12” (305) cast iron top grates, easily removable.
Manual gas control valve for each burner.
Stainless steel non-clog pilots for instant ignition on each burner.
Full width removable crumb tray for easy cleaning.
Die Cast, chrome plated control knobs.
Easy cleaning removable lift of cast iron burner heads.
32,000 BTU/hr., highest in the industry.
AGA and CGA Design Certified, NSF Listed. (step-up is NSF Listed only)
One year limited warranty, parts and labor.
OPTIONS
Saute and wok burners heads.
S/S Wok ring available.
23
38
38
63
52
95
63
122
147
38
63
95
122
GasGas
Gas: 5.0” W.C.Natural, 10.0”W.C.Propane. Specify type of gas and altitude if over 2000 feet. ¾” NPT Gas inlet.
GasGas
ClearancesClearances
Clearances: From non-combustible walls, 0”. When unit is placed next to combustible walls, clearances must exceed 12” (305) on sides, and 7” (179)
ClearancesClearances
from rear.
American RAmerican R
American R
American RAmerican R
improvements these specifications are subject to change without prior notice.
ange Corporation ange Corporation
ange Corporation is a quality manufacturer of commercial cooking equipment. Because of continuing product
ange Corporation ange Corporation
