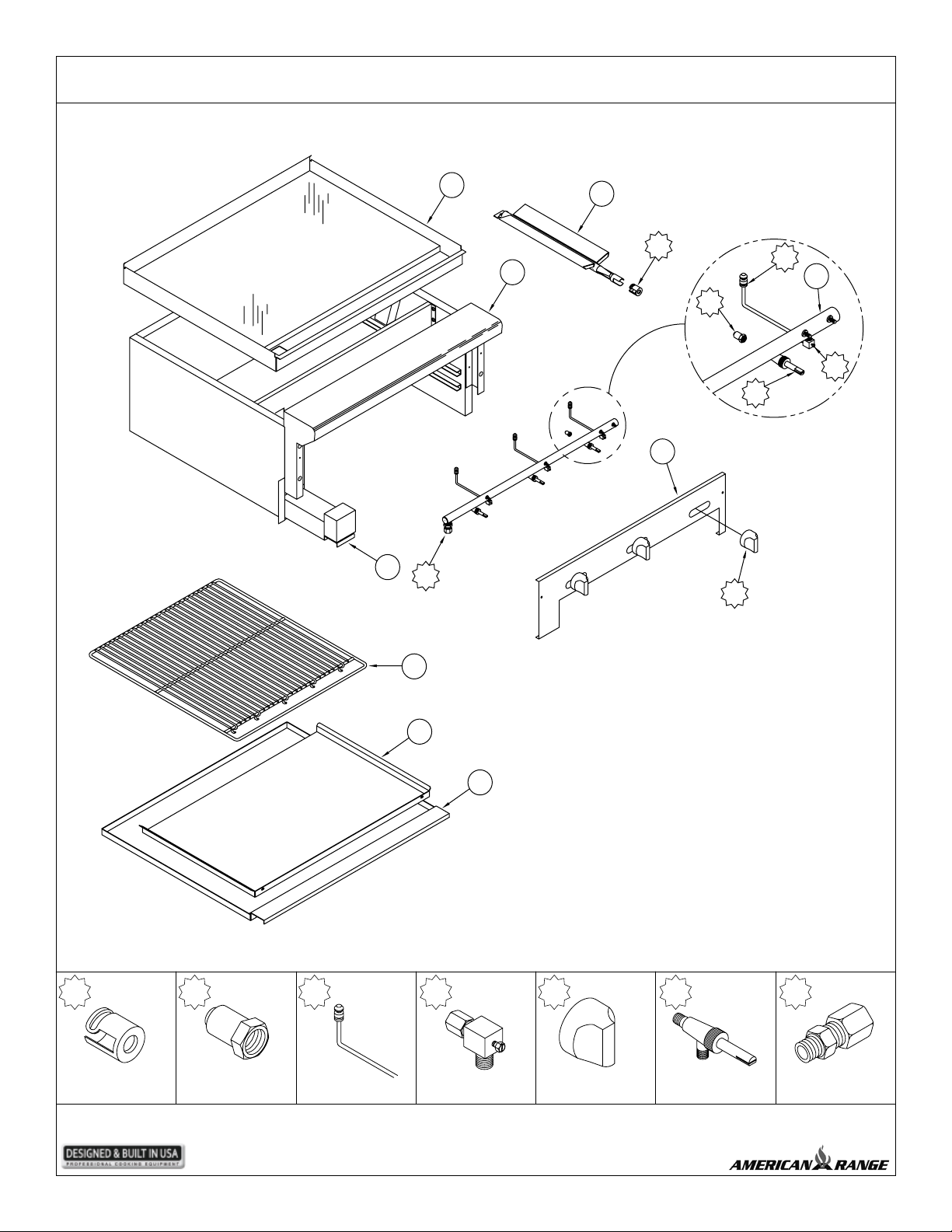

ARGB
13
12
1
4
2
3
6
7
5
8
11
9
10
3
AIR SHUTTER
5
ORIFICE HOOD
14
15
16
6
PILOT
8
90° PILOT VALVE
10
F
F
O
O N
ON/OFF KNOB
11
GAS VALVE
12
1/4 NPT X 3/8 CC
BRASS FITTING
13592 Desmond St., Pacoima, CA 91331 818.897.0808 888.753.9898 www.americanrange.com
87
Page 2
ARGB
ITEM NO. PART NO. DESCRIPTION
2
3 A14036 Air Shutter, 1"
5
6 A29206 Pilot Tip, Assembly, Raised Griddle 10245 AR Range
8 A29300 Valve, Pilot Elbow Adjustable 10418 1/8" NPT 3/16" CC
10 A32002 Knob, Gas On/Off Glossy Black Flat Up
11 A80109 Valve, Gas Manual On/Off UL 10419, AR, ARKB, ARRB, AECB
12 A28000 Fitting, 3/8" CC x 1/4" MIP Brass 10011
13 A99644 Grease Can, Raised Griddle 1230
14
15
16
subject to change without notice.
A14079 Deector, Wire Mesh Raised Griddle AR Range (2 per set)
A14048 Burner, Raised Griddle Broiler 10261 AR Range
A29005 Orice Hood, #55 1/2" Brass 11055 LPG Gas
A29002 Orice Hood, #46 1/2" Brass 11046 Nat Gas
A31022 Rack, 24" Raised Griddle Chrome Pltd 10263-24 NSF 24-5/16" x 19-7/8"
A31023 Rack, 12" Raised Griddle Chrome Pltd 10263-12 NSF 24-5/16" x 7-1/2"
A31024 Rack, 36" Raised Griddle Chrome Pltd 10263-36 NSF 31-5/16" x 24-7/16"
A31026 Rack, 48" Raised Griddle Chrome Pltd 10263-48 NSF 43-5/16" x 23-7/16"
A99630 Drip Pan, 24" Raised Griddle 1217-24 AR Range
A99631 Drip Pan, 36" Raised Griddle 1217-36 AR Range
A99633 Drip Pan, 48" Raised Griddle 1217-48 AR Range
A99640 Crumb Tray, 12" Raised Griddle 1220-12 AR Range
A99641 Crumb Tray, 24" Raised Griddle 1220-24 AR Range
A99642 Crumb Tray, 36" Raised Griddle 1220-36 AR Range
A99734 Crumb Tray, 48" Raised Griddle 1220-48 AR Range
