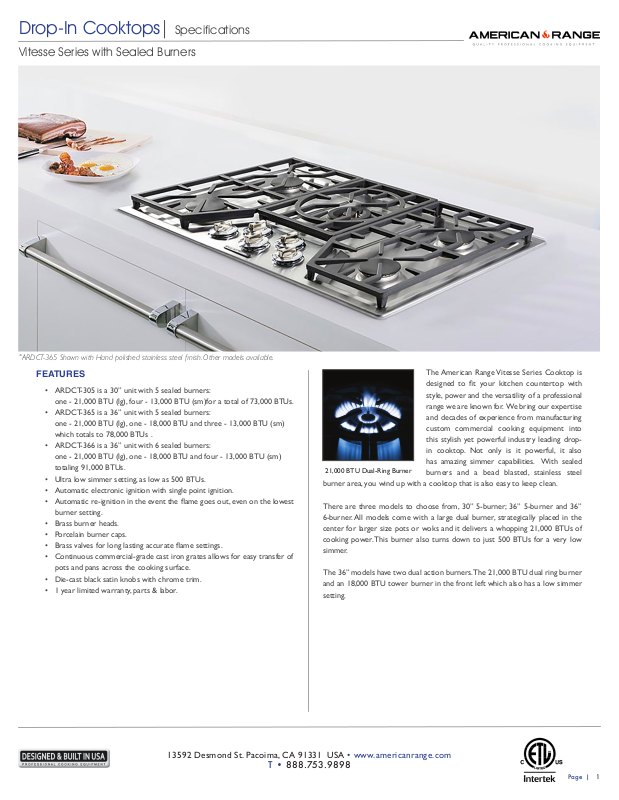

Page 1
Drop-In Cooktops| Specifications
Vitesse Series with Sealed Burners
*
ARDCT-365 Shown with Hand polished stainless steel nish. Other models available.
FEATURES
• ARDCT-305 is a 30” unit with 5 sealed burners:
one - 21,000 BTU (lg), four - 13,000 BTU (sm)for a total of 73,000 BTUs.
• ARDCT-365 is a 36” unit with 5 sealed burners:
one - 21,000 BTU (lg), one - 18,000 BTU and three - 13,000 BTU (sm)
which totals to 78,000 BTUs .
• ARDCT-366 is a 36” unit with 6 sealed burners:
one - 21,000 BTU (lg), one - 18,000 BTU and four - 13,000 BTU (sm)
totaling 91,000 BTUs.
• Ultra low simmer setting, as low as 500 BTUs.
• Automatic electronic ignition with single point ignition.
• Automatic re-ignition in the event the ame goes out, even on the lowest
burner setting.
• Brass burner heads.
• Porcelain burner caps.
• Brass valves for long lasting accurate ame settings.
• Continuous commercial-grade cast iron grates allows for easy transfer of
pots and pans across the cooking surface.
• Die-cast black satin knobs with chrome trim.
• 1 year limited warranty, parts & labor.
The American Range Vitesse Series Cooktop is
designed to t your kitchen countertop with
style, power and the versatility of a professional
range we are known for. We bring our expertise
and decades of experience from manufacturing
custom commercial cooking equipment into
this stylish yet powerful industry leading dropin cooktop. Not only is it powerful, it also
21,000 BTU Dual-Ring Burner
burner area, you wind up with a cooktop that is also easy to keep clean.
There are three models to choose from, 30” 5-burner; 36” 5-burner and 36”
6-burner. All models come with a large dual burner, strategically placed in the
center for larger size pots or woks and it delivers a whopping 21,000 BTUs of
cooking power. This burner also turns down to just 500 BTUs for a very low
simmer.
The 36” models have two dual action burners. The 21,000 BTU dual ring burner
and an 18,000 BTU tower burner in the front left which also has a low simmer
setting.
has amazing simmer capabilities. With sealed
burners and a bead blasted, stainless steel
13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com
T • 888.753.9898
Page |
1
Page 2
Drop-In Cooktops| Specifications

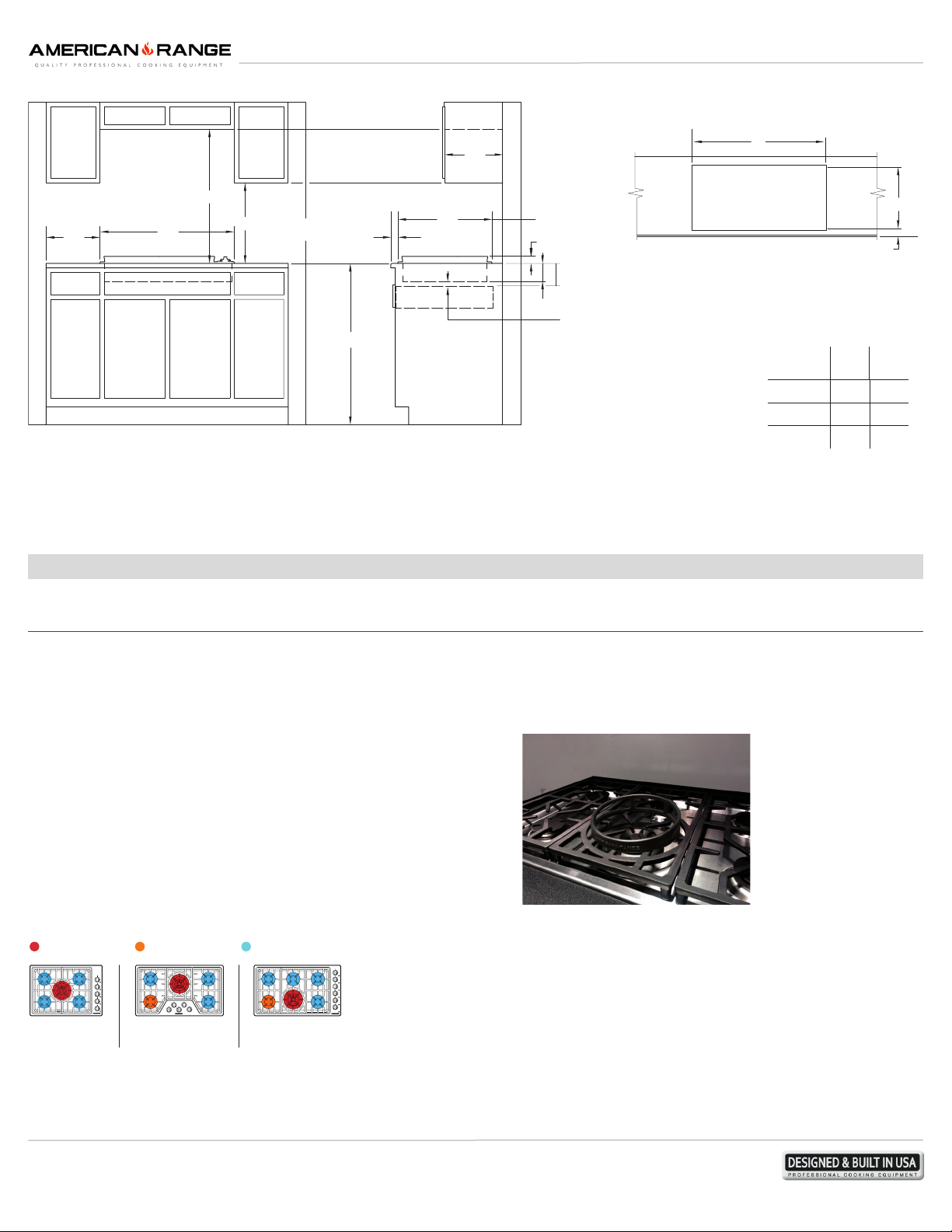

COUNTERTOP
Vitesse Series with Sealed Burners
CUTOUT
30" MIN FROM
COUNTER TOP
TO COMBUSTIBLE
MATERIAL
B
30"
IN. MIN COMBUSTIBLE TO
18"
COUNTER TOP (TYP.)
FLOOR
OVERALL
36"
MIN COMBUSTIBLE
MATERIAL (TYP.)
12"
G E
RECOMMENDED LOCATION OF GAS AND ELECTRICAL SUPPLY ISLAND OR PENINSULA INSTALLATIONS 10” MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE SURFACE. ISLAND TRIM 0 IN. CLEARANCE
OO
TO NON-COMUSTIBLE SURFACE. NO SIDE WALL ABOVE COOKING SURFACE.
THIS APPLIANCE SHOULD NOT BE INSTALLED WITH AN AIR CURTAIN OR OTHER TYPE OF VENTILATION SYSTEM THAT BLOWS AIR DOWNWARD TOWARD THE UNIT. SUCH TYPE OF VENTILATION SYSTEM MAY CAUSE
IGNITION AND COMBUSTION PROBLEMS WITH THE GAS COOKING APPLIANCE RESULTING IN PERSONAL INJURY OR UNINTENTED OPERATION.
OVERALL
FRONT VIEW SIDE VIEW
CABINET DEPTH
21"
2" MIN.
13"
COOKTOP
DEPTH
5/8
1
" MIN.
1/2
3
"
1/4" to combusitble material
below cooktop chassis
TECHNICAL SPECIFICATIONS
Model Width Depth Height Burners Total BTU KW Shipping Weight Lbs (Kg)
ARDCT-305 30” 21” 3-1/2” 5 73,000 (21) 50 (23)
ARDCT-365 36” 21” 3-1/2” 5 78,000 (23) 60 (27)
ARDCT-366 36” 21” 3-1/2” 6 91,000 (26) 70 (32)
Must ship from factory with proper gas type. N=Natural gas L= LP Gas Must provide N or L after model number for type of gas needed. Example: ARDCT-305-L Must specify elevation if over 2000 ft. when ordering.
A
TOP VIEW
MODEL
ARDCT-305 29” 30”
ARDCT-365 35” 36”
ARDCT-366 35” 36”
A B
LEGEND
1/8
19
"
3"
FEATURES
• Sealed burners
• Up to 21,000 BTU
• Bead-blasted sump area
• Brass valves
• Very low simmer setting, as low as 500 BTUs.
• Brass burner heads.
• Porcelain burner caps.
• Brass valves for long lasting accurate ame settings
• Continuous commercial-grade cast iron grates allows for easy transfer for pots
and pans across the cooking surface.
• Die-cast black satin knobs with chrome trim.
ACCESSORY
• Wok Ring Adapter
BURNER CONFIGURATION
21,000 BTU (lg) 18,000 BTU (md) 13,000 BTU (sm)
ARDCT365 ARDCT366ARDCT305
This appliance should not be installed with an air curtain or other type of ventilation system that blows air downward toward the range. Such type of ventilation system may cause ignition
and combustion problems with the gas cooking appliance resulting in personal injury or unintended operation.
* The American Range Company continually improves its products and reserves the right to change materials, specications and dimensions without notice.
This unit is manufactured for residential use only.
09042018 REV A
R70210
2
| Page
13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com
T • 888.753.9898
