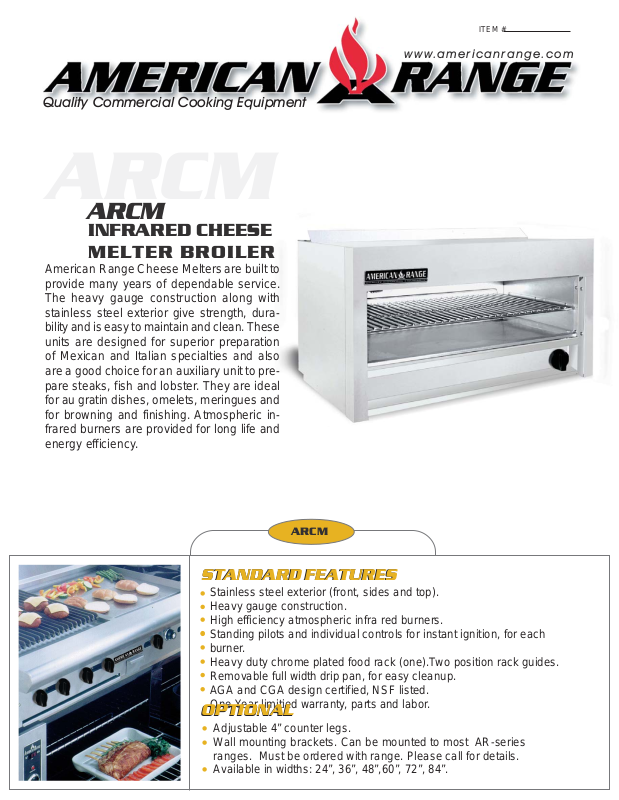

Page 1
Quality Commercial Cooking Equipment
ARCM
ARCM
INFRARED CHEESE
MELTER BROILER
American Range Cheese Melters are built to
provide many years of dependable service.
The heavy gauge construction along with
stainless steel exterior give strength, durability and is easy to maintain and clean. These
units are designed for superior preparation
of Mexican and Italian specialties and also
are a good choice for an auxiliary unit to prepare steaks, fish and lobster. They are ideal
for au gratin dishes, omelets, meringues and
for browning and finishing. Atmospheric infrared burners are provided for long life and
energy efficiency.
ITEM #
www.americanrange.com
ARCM
STANDARD FEATURES
STANDARD FEATURES
Stainless steel exterior (front, sides and top).
Heavy gauge construction.
High efficiency atmospheric infra red burners.
Standing pilots and individual controls for instant ignition, for each
burner.
Heavy duty chrome plated food rack (one).T wo position rack guides.
Removable full width drip pan, for easy cleanup.
AGA and CGA design certified, NSF listed.
One Year limitied warranty, parts and labor .
OPTIONAL
OPTIONAL
Adjustable 4” counter legs.
Wall mounting brackets. Can be mounted to most AR-series
ranges. Must be ordered with range. Please call for details.
Available in widths: 24”, 36”, 48”,60”, 72”, 84”.
Page 2
INFRINFR
INFR
INFRINFR
ARED CHEESE MELARED CHEESE MEL
ARED CHEESE MEL
ARED CHEESE MELARED CHEESE MEL
RADIANT CHAR BROILER
TER BROILERTER BROILER
TER BROILER
TER BROILERTER BROILER
ARCM
Series
MODEL BURNERS
ARCM-24 24” 18” 20” 1 20,000 5.86 110
ARCM-36 36” 18” 20” 1 35,000 10.25 160
ARCM-48 48” 18” 20” 2 40,000 11.72 200
ARCM-60 60” 18” 20” 2 55,000 16.11 275
ARCM-72 72” 18” 20” 2 70,000 20.50 330
ARCM-84 84” 18” 20” 3 75,000 21.98 400
WIDTH DEPTH HEIGHT
STANDARD FEATURES
Stainless steel exterior (front, sides and top).
Heavy gauge construction.
High efficiency atmospheric infra red burners.
Standing pilots and individual controls for instant
ignition,each burner.
Heavy duty chrome plated food rack (one furnished).
Two position rack guides.
Removable full width drip pan, for easy cleanup.
AGA and CGA design certified, NSF listed.
One Year limited warranty, parts and labor.
TOTAl BTU KW SHIP. WT. Lbs.
OPTIONAL FEATURES
Adjustable 4” (102) counter legs.
Wall mounting brackets.
Can be mounted to most AR-series ranges,
must be ordered with range. Please call
for details.
Available in widths: 24” (610), 36” (914),
48” (1219),60” (1524), 72” (1829), 84” (2134).
Kg.
50
72
90
124
149
181
GasGas
Gas: Manifold pressure is 5.0” W.C. for natural gas or 10.0” W.C. for propane gas. Specify type of gas and altitude if over 2000 feet.
GasGas
3/4” NPT Gas inlet.
ClearancesClearances
Clearances: 4” (102) sides and back to combustible wall 0” to non combustible walls.
ClearancesClearances
American RAmerican R
American R
American RAmerican R
improvements these specifications are subject to change without prior notice.
ange Corporation ange Corporation
ange Corporation is a quality manufacturer of commercial cooking equipment. Because of continuing product
