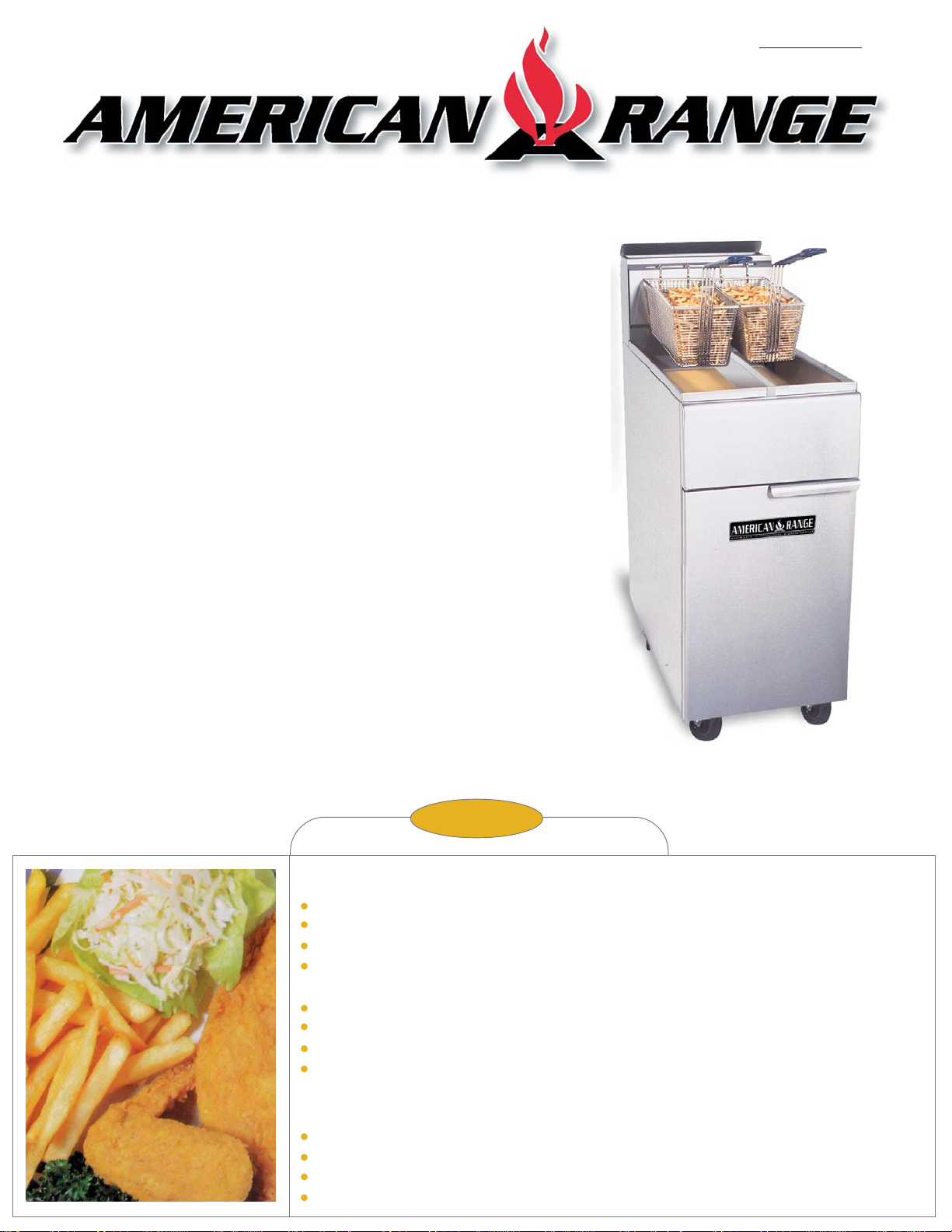

AF25-25
AF-2525
HEAVY DUTY DEEP FAT FRYERS
You get a faster and better fryer from AMERICAN RANGE,
with the latest technology incorporated into its design, and
tons of features and benefits to suit the everyday demanding needs especially during extreme operating periods. Bringing added value and assured performance, by offering the
highest BTU rating for superior recovery. The ample cool
zone prevents food particles from carbonization while extending oil life. Our unique vessel tank design features a
deeper oil level, for larger food products, and a sloping vessel bottom for quick and complete draining of oil and debris.
Its special design tube shields provide a uniform heating pattern for positive, more consistent frying results. Equipped
with a Millivolt Control System, and a 100% safety shut off
valve. No electrical power is required. Conveniently located
controls for easy access for operators, maintenance and service. All st ainless steel heavy duty exterior construction, with
a durable double panel door, rugged base and removable
stainless steel basket guide. Equipped with two nickel plated
baskets having cool grip plastic coated handles, to provide
maximum operator comfort.
ITEM #
www.americanrange.com

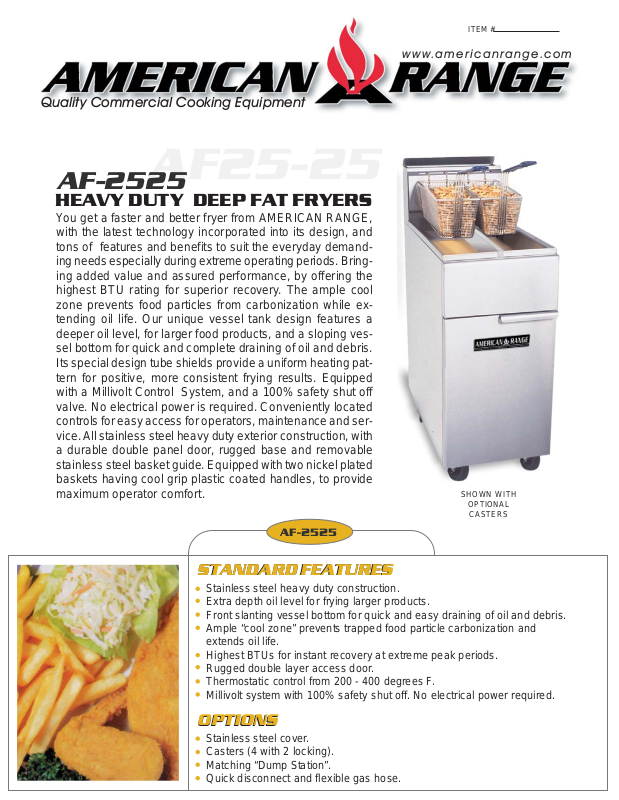

SHOWN WITH
OPTIONAL
CASTERS
AF-2525
STANDARD FEATURES
STANDARD FEATURES
Stainless steel heavy duty construction.
Extra depth oil level for frying larger products.
Front slanting vessel bottom for quick and easy draining of oil and debris.
Ample “cool zone” prevents trapped food particle carbonization and
extends oil life.
Highest BTUs for instant recovery at extreme peak periods.
Rugged double layer access door.
Thermostatic control from 200 - 400 degrees F.
Millivolt system with 100% safety shut off. No electrical power required.
OPTIONS
OPTIONS
St ainless steel cover.
Casters (4 with 2 locking).
Matching “Dump Station”.
Quick disconnect and flexible gas hose.

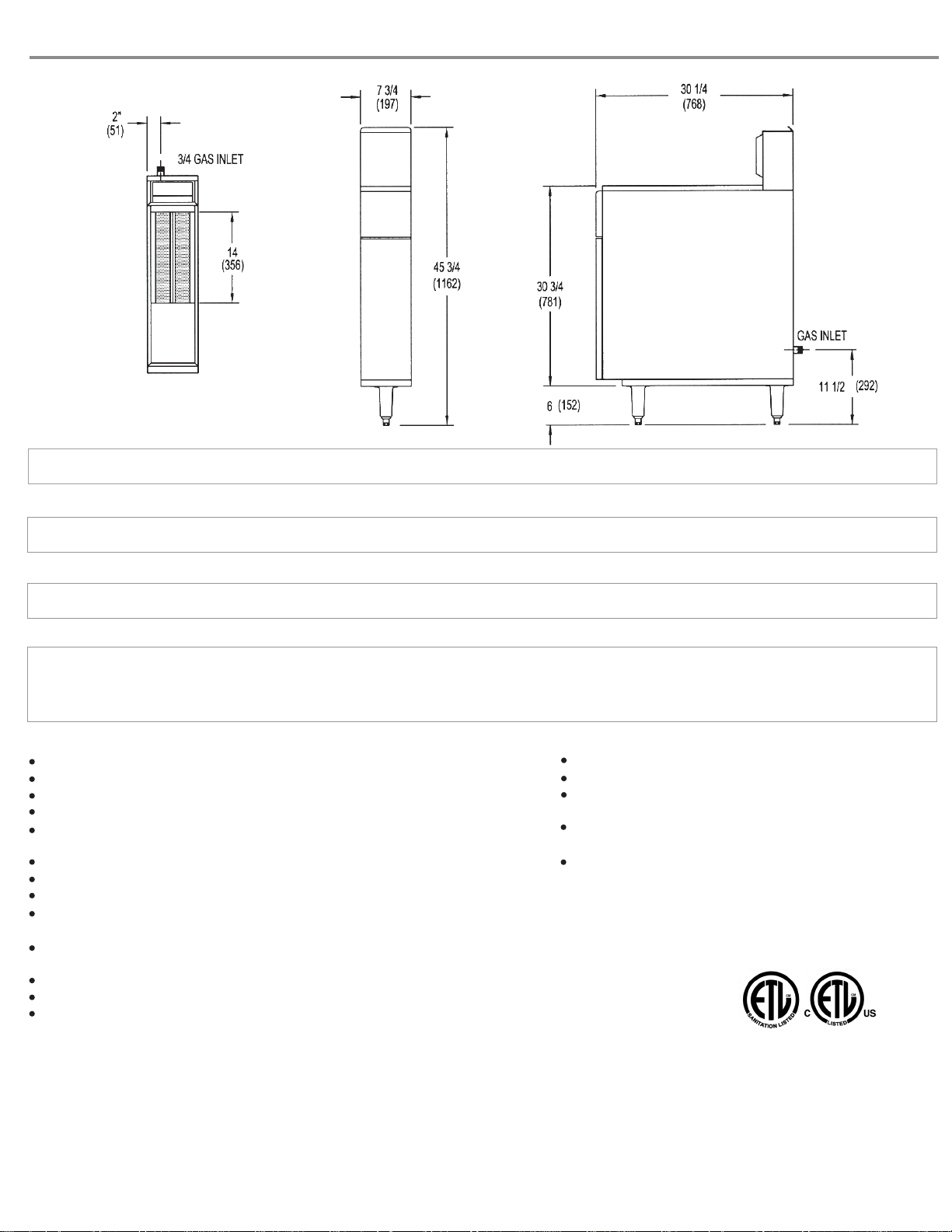

Page 2
HEAHEA
HEA
HEAHEA
VY DUTY DEEP FVY DUTY DEEP F
VY DUTY DEEP F
VY DUTY DEEP FVY DUTY DEEP F
HEAVY DUTY DEEP FAT FRYER
Oil Capcity
Lbs. (liters)
Total BTU KW
width
(mm)
AA
T FRYERT FRYER
A
T FRYER
AA
T FRYERT FRYER
depth
(mm)
Overall
height
Cooking
Area
AF-2525
No. of
Burners
Ship Weight: lbs. Kg.
Series
AF-25AF-25
AF-25
AF-25AF-25
20lbs. - 30lbs.
(1
1-16)
AF-2525AF-2525
AF-2525
AF-2525AF-2525
20lbs. - 30lbs.
(11-16) Per Pot
AF-4525AF-4525
AF-4525
AF-4525AF-4525
(1) 20lbs. - 30lbs.
(11-16)
(1) 35lbs. - 50lbs.
(19-27) Per Pot
80,000
160,000
200,000
23.45
46.90
58.62
FEATURES
Fryer vessel tank: All stainless Steel high quality construction, 16 ga. #304 material
Exterior: All Stainless Steel front, sides, door and basket hanger/flue riser.
S/S Door: Durable double layer access door
Basket Hanger: Removable basket hanger accomodates a large fryer basket.
Fryer Baskets: Nickel plated fryer basket with cool grip plastic coated
handle for operator safety and ease.
Millivolt control system: No electrical hook up required.
Thermostatic Control: Thermostat adjusts from 200°F to 400° F.
Safety shut off System: 100% gas shut off when temperature reaches the hi-limit.
Combination Gas Valve: Includes pressure regulator and pilot ignition system,
hermetically sealed for operating stability. 3/4” N.P.T gas inlet in rear.
Crumb Screen: Large removable tight mesh nickel plated screen under fryer
basket.
Drain Valve: 1 1/4” (32) diameter for easy draining of oil. Plastic coated handle for safety.
Legs: 6” (157)high chrome plated adjustable legs.
AGA/CGA Design certified and NSF Listed.
1/2 SIZE POT 1/2 SIZE POT
1/2 SIZE POT
1/2 SIZE POT 1/2 SIZE POT
7 3/4”
(197)
TWO 1/2 SIZE POTTWO 1/2 SIZE POT
TWO 1/2 SIZE POT
TWO 1/2 SIZE POTTWO 1/2 SIZE POT
15 1/2”
(394)
22 1/4”
(565)
30 1/4”
(768)
30 1/4”
(768)
SPLIT POTSPLIT POT
SPLIT POT
SPLIT POTSPLIT POT
30
”(768)
¼
45 3/4”
(1162)
45 3/4”
(1
162)
45 3/4”
(1162)
14” x 6 3/4”
(356 x 172)
(2)14” x 6 3/4”
(159 x 172)
(1)6 3/4” x 14”
(172 x 222)
(1)14” x 14”
(356 x 356)
OPTIONS
STAINLESS STEEL FRYPOT
2 150
STAINLESS STEEL FRYPOT
4
STAINLESS STEEL FRYPOT
5 350 158
Casters: 6” (152) high casters front two with locking brakes.
Vessel Cover: Stainless Steel cover to fit over fryer vessels.
Joiner Strip: To connect two fryers and prevent oil seepage
between the fryers or drain station.
Quick Disconnect: Gas Hose with restraining
device for added safety.
Dump Station: Stainless Steel dump station with
door and convenient cabinet below.
230
68
104
GasGas
Gas: Manifold pressure is 4.0” W.C. for natural gas or 11.0” W.C. for propane gas. Specify type of gas and altitude if over 2000 feet. 0” T 3/4” NPT Gas Inlet.
GasGas
ClearancesClearances
Clearances: For installation on combustible floors using 6” legs or casters. Clearance to combustible walls 6” sides and rear. 0” to noncombustible wall.
ClearancesClearances
American RAmerican R
American R
American RAmerican R
improvements these specifications are subject to change without prior notice.
ange Corporation ange Corporation
ange Corporation is a quality manufacturer of commercial cooking equipment. Because of continuing product
ange Corporation ange Corporation
