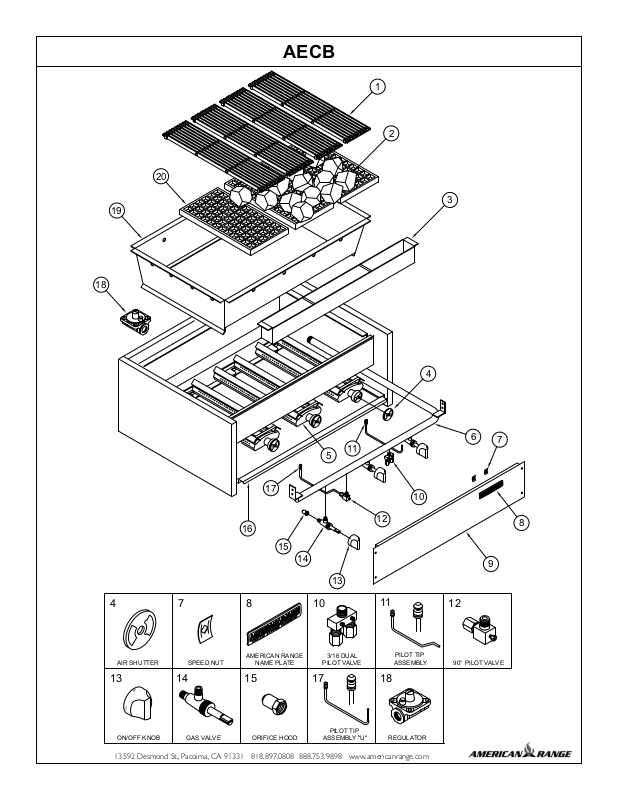

Page 1
18
AECB
1
2
20
3
19
4
AIR SHUTTER
13
OFF
7
SPEED NUT
14
5
17
16
15
14
13
810
AMERICAN RANGE 3/16 DUAL
15
PILOT VALV ENAME PLATE
17
11
12
11
18
10
PILOT TIP
ASSEMBLY
4
6
12
90° PILOT VALV E
7
8
9
O N
PILOT TIP
ON/OFF KNOB
13592 Desmond St., Pacoima, CA 91331 818.897.0808 888.753.9898 www.americanrange.com
GAS VALV E
ORIFICE HOOD
ASSEMBLY "U"
REGULATOR
Page 2
AECB
ITEM NO. PART NO. DESCRIPTION PRICE
1 A17007 Grate, Top 5” x 21” (200) 10454 $ 102.00
2 A52900 Pumice, Lava Rock Lump Style 10441 (20 lb. box) $ 63.00
4 A14037 Air Shutter, 2” 10463 $ 4.50
5 A14038 Burner, H w/Welded Radiants 10475 AECB & AMSQ $ 205.00
A15020 Manifold, AECB-34” Char Broiler Counter Top (10) $ 104.00
6
7 A44003 Nut, Speed #6 Push Black 10601 $ .50
8 A38000 Name Plate, American Range 8” 10499 Quality Commercial Chrome $ 20.00
10 A29301 Valve, Dual Gas Pilot 1/8 x 3/16C 10432 $ 16.00
11 A29205 Pilot Tip, Assembly Double Valve AECB $ 25.00
12 A29300 Valve, Pilot Elbow Adjustable 10418 1/8 NPT 3/16 CC $ 12.00
13 A32002 Knob, Gas On/Off Glossy Black Flat Up $ 14.00
14 A80109 Valve, Gas Manual On/Off UL 10419 AR, ARKB, ARRB, AECB $ 25.00
15
17 A29229 Pilot Tip, Assembly Single Valve AECB $ 25.00
18
20 A17003 Grate, Bottom Wafe 8” x 15” 10455 (250) $ 80.00
A15024 Manifold, AECB-24” Char Broiler 2019-24 Counter Top $ 88.00
A15026 Manifold, AECB-14” Char Broiler 2019-14 Counter Top (5) $ 72.00
A15063 Manifold, AECB-44” Char Broiler 2019-44 Counter Top $ 144.00
A29014 Hood, Orice Hood #36 1/2” Brass 11036 $ 2.50
A29004 Hood, Orice #50 1/2” Brass 11050 $ 2.50
A80110 Value, Pressure Regulator 3/4 10480 Nat Gas Set 5. $ 34.00
A80011 Valve, Pressure Regulator 3/4 10481 LP Gas Set 10.0 $ 34.00
13592 Desmond St., Pacoima, CA 91331 818.897.0808 888.753.9898 www.americanrange.com
