Page 1
23
ADJ
1
2
3
4
21
22
18
14
17
13
15
16
12
5
6
7
8
9
F
F
O
O N
F
F
O
O N
F
F
O
O N
F
F
O
O N
F
F
O
O N
F
F
O
O N
10
20
19
13592 Desmond St., Pacoima, CA 91331 818.897.0808 888.753.9898 www.americanrange.com
63
11
Page 2

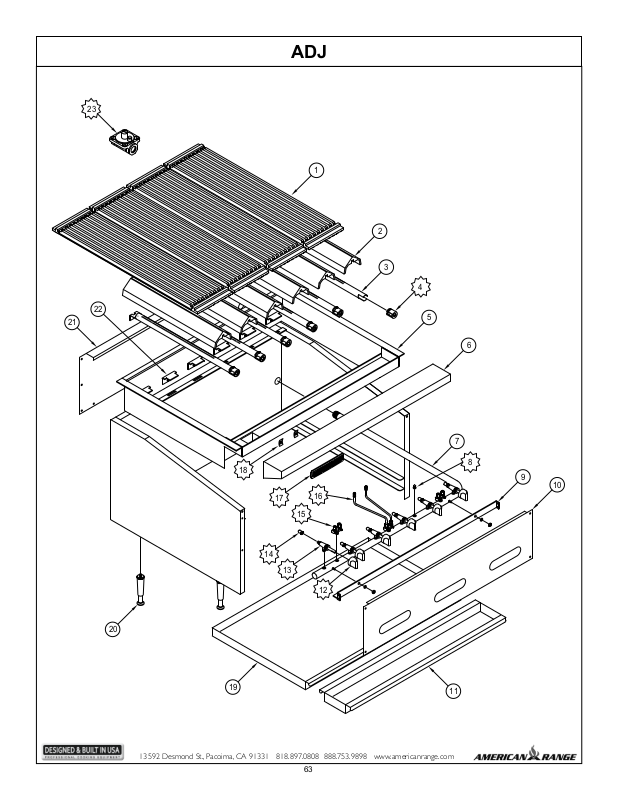

ADJ
ITEM NO. PART NO. DESCRIPTION
1 A17010 Grate, 9 Bar 5" x 21" Cast Iron ADJ/AMSQ
2 A17004 Cover, Radiant 19.5" Cast Iron 10449
3 A14011 Burner, Broiler ARRB, AERB, ARKB 10468
4 A14036 Air Shutter, 1"
8 A23010 Plug, 1/8" Pipe Hex Black All Manifolds
12 A32001 Knob, Gas On/Off Glossy Black Flat Down
13 A80109 Valve, Gas Manual On/Off UL 10419, AR, ARKB, ARRB, AECB
14
15 A29301 Valve, Dual Gas Pilot 1/8 x 3/16C 10432
16 A29221 Pilot Tip, Assembly ADJ
17 A38000 Name Plate, American Range 8" 10499 Quality Commercial Chrome
18 A44003 Nut, Speed #6 Push Black 10601
20 A35011 Leg, 4" Adjustable Flanged NSF Stainless
23
31 A32016 Knob, Ball 1-3/4 3/8 Insert
32
subject to change without notice.
A29004 Orice Hood, #50 1/2" Brass, 11050 Nat Gas
A29008 Orice Hood, #57 1/2" Brass, 11057 LPG Gas
A80011 Valve, Pressure Regulator 3/4 10481 LPG Gas Set 10.0
A80110 Valve, Pressure Regulator 3/4 10480 Nat Gas Set 5.
A34004 Spring, Extension ADJ-60/ADJ-72 1-1/16" x 5-1/2" x .120"
A34007 Spring, Extension ADJ Special 1-1/16" x 4+ ADJ-24 thru ADJ-48"
4
AIR SHUTTER
17
AMERICAN RANGE
NAME PLATE
8
1/8" PLUG
18
SPEED NUT
12
F
F
O
O N
ON/OFF KNOB
23
REGULATOR
13
GAS VALVE
14
ORIFICE HOOD
15
3/16 DUAL
PILOT VALVE
16
PILOT TIP ASSY
