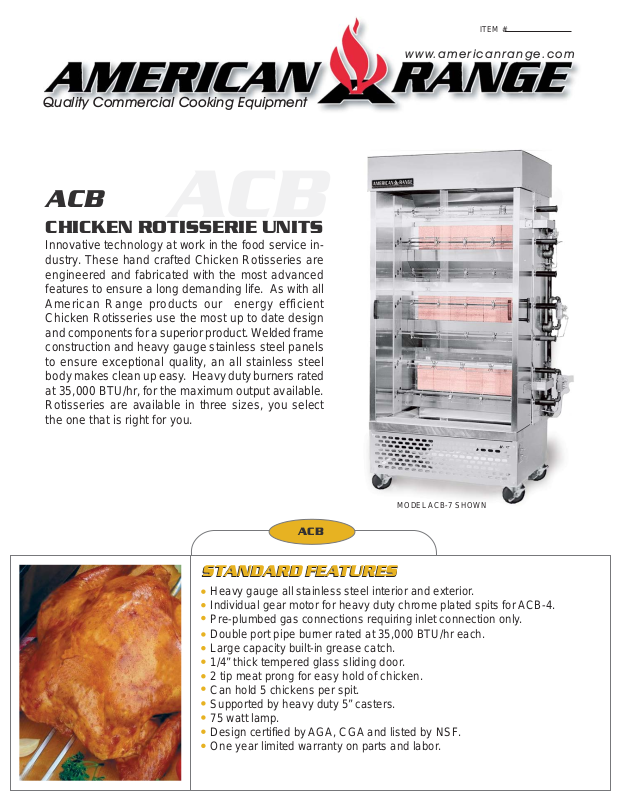

Page 1
Quality Commercial Cooking Equipment
ACB
ACB
CHICKEN ROTISSERIE UNITS
Innovative technology at work in the food service industry. These hand crafted Chicken Rotisseries are
engineered and fabricated with the most advanced
features to ensure a long demanding life. As with all
American Range products our energy efficient
Chicken Rotisseries use the most up to date design
and components for a superior product. Welded frame
construction and heavy gauge stainless steel panels
to ensure exceptional quality, an all stainless steel
body makes clean up easy . Heavy duty burners rated
at 35,000 BTU/hr, for the maximum output available.
Rotisseries are available in three sizes, you select
the one that is right for you.
ITEM #
www.americanrange.com
MODEL ACB-7 SHOWN
ACB
STANDARD FEATURES
STANDARD FEATURES
Heavy gauge all stainless steel interior and exterior.
Individual gear motor for heavy duty chrome plated spits for ACB-4.
Pre-plumbed gas connections requiring inlet connection only.
Double port pipe burner rated at 35,000 BTU/hr each.
Large capacity built-in grease catch.
1/4” thick tempered glass sliding door .
2 tip meat prong for easy hold of chicken.
Can hold 5 chickens per spit.
Supported by heavy duty 5” casters.
75 watt lamp.
Design certified by AGA, CGA and listed by NSF.
One year limited warranty on parts and labor.
Page 2
CHICKEN ROTISSERIE UNITS
MODEL TOTAL BTU KW SHIP. WT. LBS.
DESCRIPTION
WIDTH DEPTH HEIGHT
ACB - 4 (4) Spit s 45 1/2” 25 1/2” 55 3/4” 1 35,000 10.26 360
ACB - 7 (7) Spit s 45 1/2” 25 1/2” 81” 3 105,000 30.77 580
ACB - 14 (14) S pits 45 1/2” 35 3/4” 81” 3 105,000 30.77 1000
Gas: Manifold pressure is 5.0” W.C. for natural gas or 10.0” W .C. for propane gas. S pecify type of gas and altitude if over 2000 feet.
3/4” Gas inlet.
Clearances: For use only on non-combustible floors. Clearance from non-combustible walls is 0”. When unit is placed next to combustible walls, clearances
must exceed 12” (305) on sides, and 4” (102) from rear and sides.
American Range Corporation is a quality manufacturer of commercial cooking equipment. Because of continuing product
improvements these specifications are subject to change without prior notice.
BURNERS
Kg.
163
262
453
