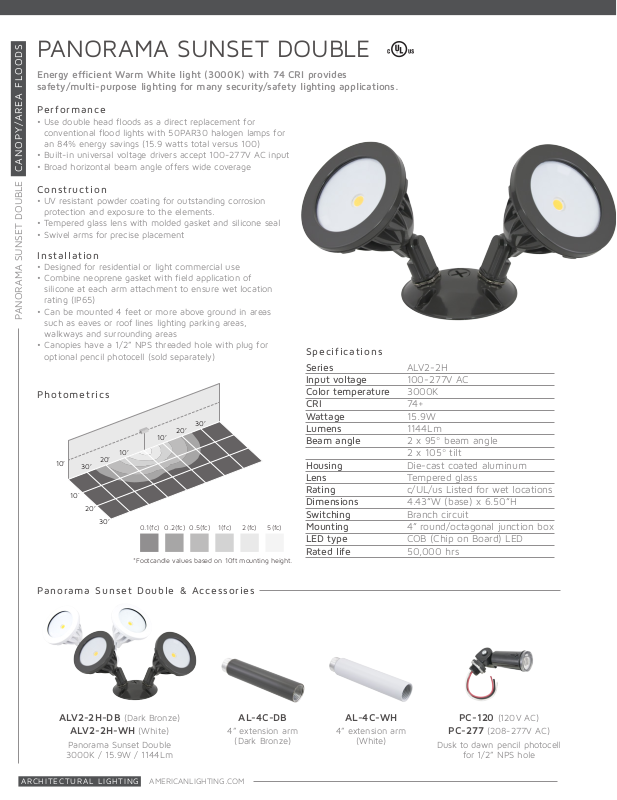

PANORAMA SUNSET DOUBLE
10
Energy ecient Warm White light (3000K) with 74 CRI provides
safety/multi-purpose lighting for many security/safety lighting applications.
Performance
• Use double head oods as a direct replacement for
conventional ood lights with 50PAR30 halogen lamps for
an 84% energy savings (15.9 watts total versus 100)
• Built-in universal voltage drivers accept 100-277V AC input
• Broad horizontal beam angle offers wide coverage
Construction
• UV resistant powder coating for outstanding corrosion
protection and exposure to the elements.
• Tempered glass lens with molded gasket and silicone seal
• Swivel arms for precise placement
Installation
• Designed for residential or light commercial use
• Combine neoprene gasket with eld application of
silicone at each arm attachment to ensure wet location
rating (IP65)
• Can be mounted 4 feet or more above ground in areas
PANORAMA SUNSET DOUBLE CANOPY/AREA FLOODS
such as eaves or roof lines lighting parking areas,
walkways and surrounding areas
• Canopies have a 1/2” NPS threaded hole with plug for
optional pencil photocell (sold separately)
Photometrics
30’
20’
10’
10’
10`
30’
20’
20’
30’
*Footcandle values based on 10ft mounting height.
’
5(fc)2(fc)1(fc)0.5(fc)0.2(fc)0.1(fc)
Specifications
Series
Input voltage
Color temperature
CRI
Wattage
Lumens
Beam angle
Housing
Lens
Rating
Dimensions
Switching
Mounting
LED type
Rated life
ALV2-2H
100-277V AC
3000K
74+
15.9W
1144Lm
2 x 95º beam angle
2 x 105º tilt
Die-cast coated aluminum
Tempered glass
c/UL/us Listed for wet locations
4.43”W (base) x 6.50”H
Branch circuit
4” round/octagonal junction box
COB (Chip on Board) LED
50,000 hrs
Panorama Sunset Double & Accessories
ALV2-2H-DB (Dark Bronze)
ALV2-2H-WH (White)
Panorama Sunset Double
3000K / 15.9W / 1144Lm
AMERICANLIGHTING.COMARCHITECTURAL LIGHTING
AL-4C-DB
4” extension arm
(Dark Bronze)
AL-4C-WH
4” extension arm
(White)
PC-120 (120V AC)
PC-277 (208-277V AC)
Dusk to dawn pencil photocell
for 1/2” NPS hole
