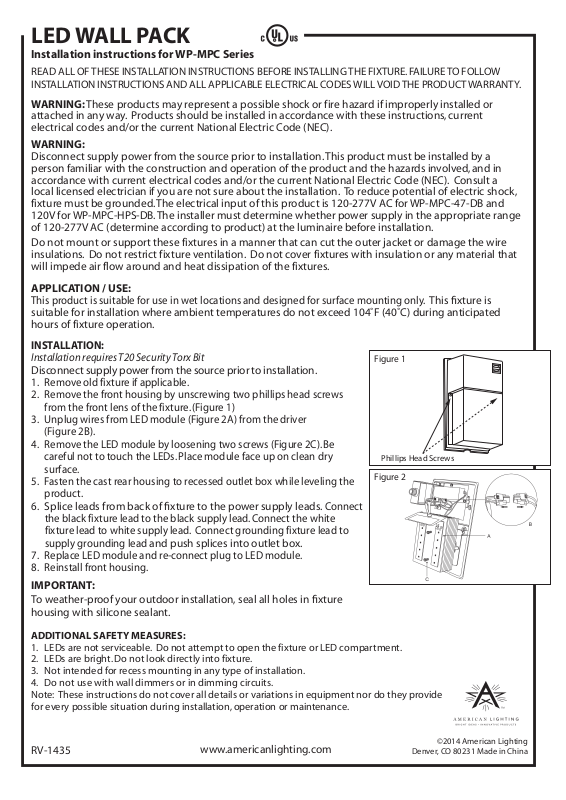

LED WALL PACK
Installation instructions for WP-MPC Series
READ ALL OF THESE INSTALLATION INSTRUCTIONS BEFORE INSTALLING THE FIXTURE. FAILURE TO FOLLOW
INSTALLATION INSTRUCTIONS AND ALL APPLICABLE ELECTRICAL CODES WILL VOID THE PRODUCT WARRANTY.
WARNING: These products may represent a possible shock or fire hazard if improperly installed or
attached in any way. Products should be installed in accordance with these instructions, current
electrical codes and/or the current National Electric Code (NEC).
WARNING:
Disconnect supply power from the source prior to installation. This product must be installed by a
person familiar with the construction and operation of the product and the hazards involved, and in
accordance with current electrical codes and/or the current National Electric Code (NEC). Consult a
local licensed electrician if you are not sure about the installation. To reduce potential of electric shock,
fixture must be grounded. The electrical input of this product is 120-277V AC for WP-MPC-47-DB and
120V for WP-MPC-HPS-DB. The installer must determine whether power supply in the appropriate range
of 120-277V AC (determine according to product) at the luminaire before installation.
Do not mount or support these fixtures in a manner that can cut the outer jacket or damage the wire
insulations. Do not restrict fixture ventilation. Do not cover fixtures with insulation or any material that
will impede air flow around and heat dissipation of the fixtures.
APPLICATION / USE:
This product is suitable for use in wet locations and designed for surface mounting only.
suitable for installation where ambient temperatures do not exceed 104˚F (40˚C) during anticipated
hours of fixture operation.
This xture is
INSTALLATION:
Installation requires T20 Security Torx Bit
Disconnect supply power from the source prior to installation.
1. Remove old fixture if applicable.
2. Remove the front housing by unscrewing two phillips head screws
from the front lens of the fixture. (Figure 1)
3. Unplug wires from LED module (Figure 2A) from the driver
(Figure 2B).
4. Remove the LED module by loosening two screws (Figure 2C). Be
careful not to touch the LEDs. Place module face up on clean dry
surface.
5. Fasten the cast rear housing to recessed outlet box while leveling the
product.
6.
Splice leads from back of xture to the power supply leads.
Connect
the black fixture lead to the black supply lead. Connect the white
fixture lead to white supply lead. Connect grounding fixture lead to
supply grounding lead
and push splices into outlet box.
7. Replace LED module and re-connect plug to LED module.
8. Reinstall front housing.
IMPORTANT:
To weather-proof your outdoor installation, seal all holes in xture
housing with silicone sealant.

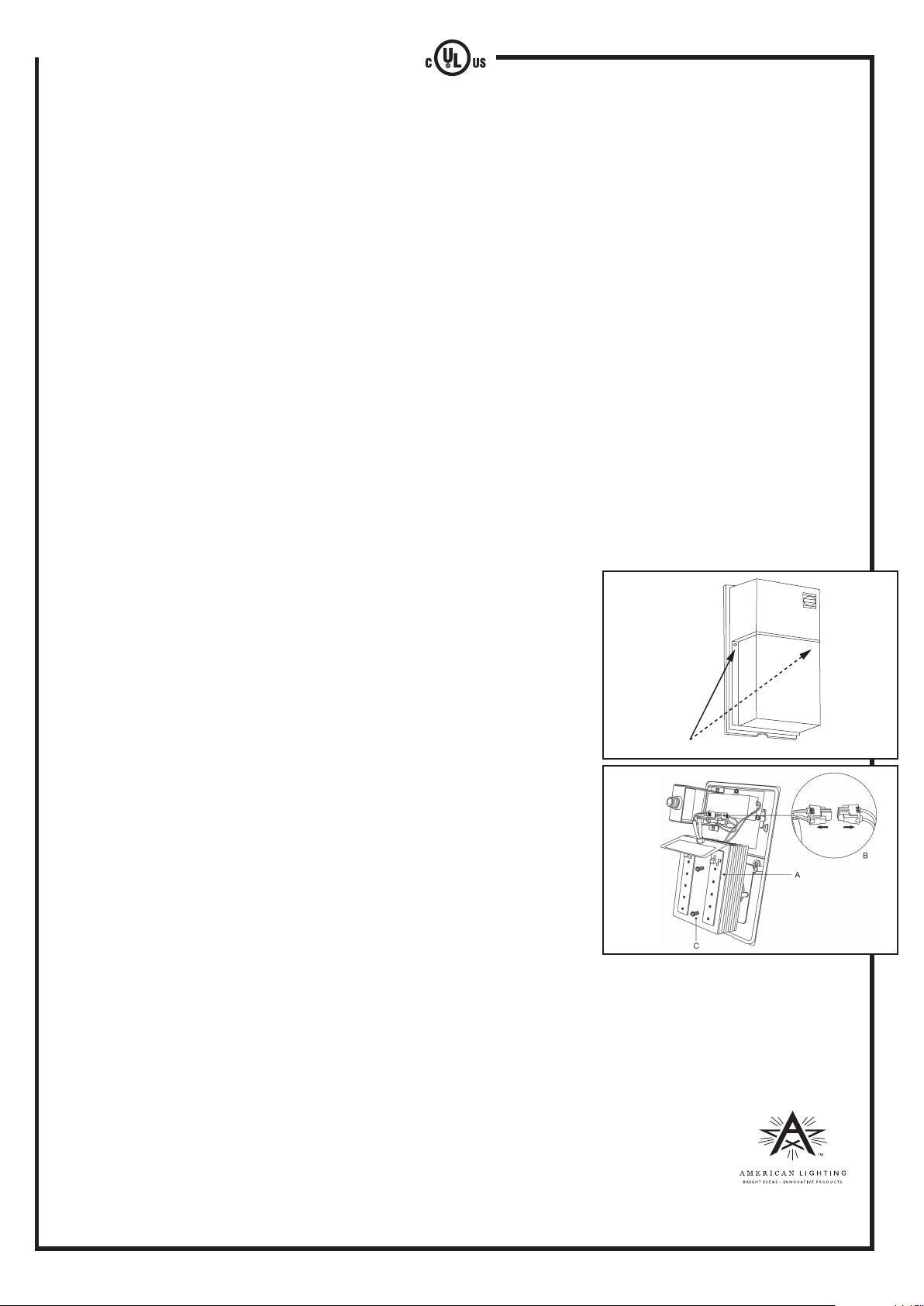

Figure 1
Phillips Head Screws
Figure 2
ADDITIONAL SAFETY MEASURES:
1. LEDs are not serviceable. Do not attempt to open the fixture or LED compartment.
2. LEDs are bright. Do not look directly into fixture.
3. Not intended for recess mounting in any type of installation.
4. Do not use with wall dimmers or in dimming circuits.
Note: These instructions do not cover all details or variations in equipment nor do they provide
for every possible situation during installation, operation or maintenance.
©2014 American Lighting
Denver, CO 80231 Made in China
RV-1435
www.americanlighting.com
