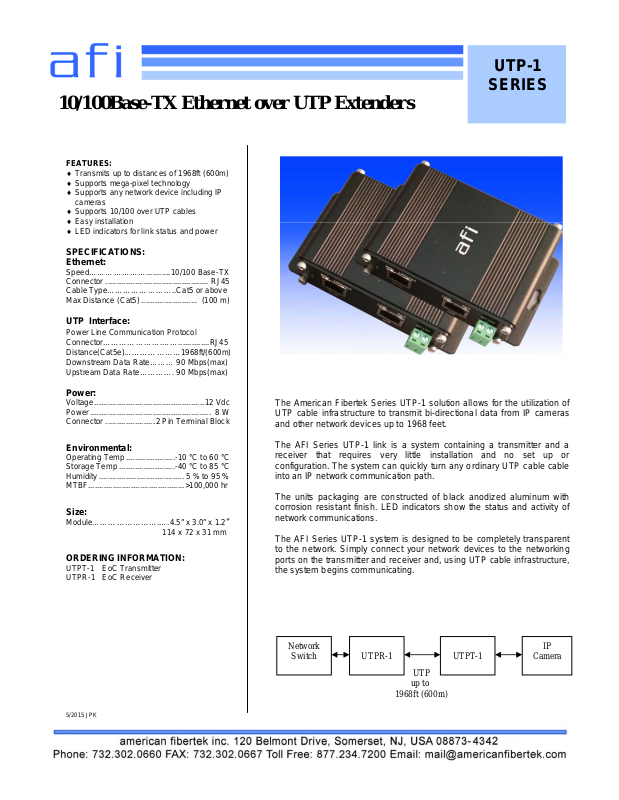

American Fibertek UTPR-1, UTPT-1 Specsheet

UTP-1

SERIES

10/100Base-TX Ethernet over UTP Extenders

FEATURES:

 Transmits up to distances of 1968ft (600m)
 Supports mega-pixel technology
 Supports any network device including IP

cameras

 Supports 10/100 over UTP cables
 Easy installation
 LED indicators for link status and power

SPECIFICATIONS:
Ethernet:

Speed…………………...........10/100 Base-TX

Connector .............................................. RJ45

Cable Type……………………..Cat5 or above

Max Distance (Cat5) ......................... (100 m)

UTP Interface:

Power Line Communication Protocol

Connector………………….……..............RJ45

Distance(Cat5e)…………………1968ft/(600m)
Downstream Data Rate……… 90 Mbps(max)
Upstream Data Rate…………. 90 Mbps(max)

Power:

Voltage.................................................12 Vdc

Power...................................................... 8 W

Connector ......................2 Pin Terminal Block

Environmental:

Operating Temp......................-10 °C to 60 °C

Storage Temp .........................-40 °C to 85 °C

Humidity...................................... 5 % to 95 %

MTBF...........................................>100,000 hr

Size:

Module…………………….….4.5” x 3.0” x 1.2”
114 x 72 x 31 mm

ORDERING INFORMATION:

UTPT-1 EoC Transmitter
UTPR-1 EoC Receiver

5/2015 JPK

The American Fibertek Series UTP-1 solution allows for the utilization of
UTP cable infrastructure to transmit bi-directional data from IP cameras
and other network devices up to 1968 feet.

The AFI Series UTP-1 link is a system containing a transmitter and a
receiver that requires very little installation and no set up or
configuration. The system can quickly turn any ordinary UTP cable cab le
into an IP network communication path.

The units packaging are constructed of black anodized aluminum with
corrosion resistant finish. LED indicators show the status and activity of
network communications.

The AFI Series UTP-1 system is designed to be completely transparent
to the network. Simply connect your network devices to the networking
ports on the transmitter and receiver and, using UTP cable infrastructure,
the system begins communicating.

Network

Switch

UTPR-1

1968ft (600m)

UTPT-1

UTP
up to

IP

Camera
