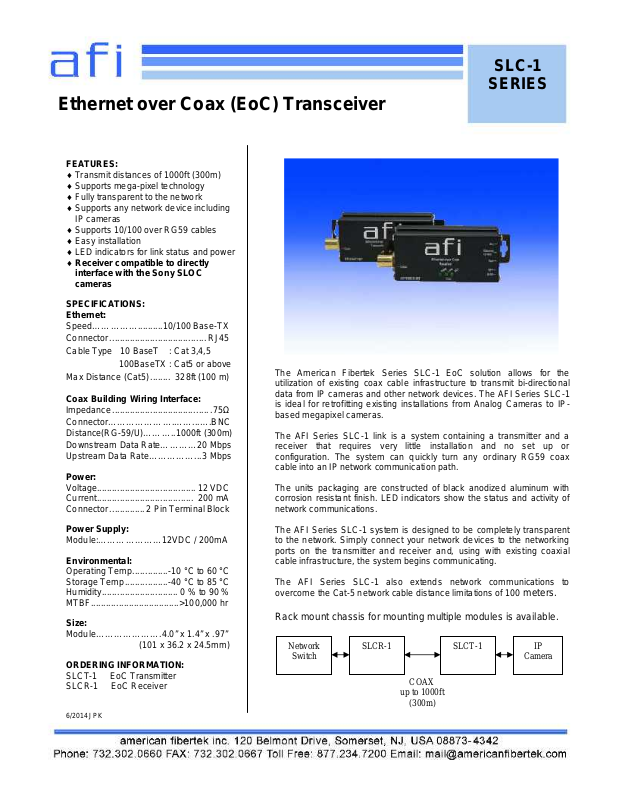

American Fibertek SLCR-1, SLCT-1 Specsheet

SLC-1

SERIES

FEATURES:

 Transmit distances of 1000ft (300m)
 Supports mega-pixel technology
 Fully transparent to the network
 Supports any network device including

IP cameras

 Supports 10/100 over RG59 cables
 Easy installation
 LED indicators for link status and power
 Receiver compatible to directly

interface with the Sony SLOC
cameras

SPECIFICATIONS:
Ethernet:

Speed……………..........10/100 Base-TX

Connector...................................... RJ45

Cable Type 10 BaseT : Cat 3,4,5
100BaseTX : Cat5 or above

Max Distance (Cat5) ........ 328ft (100 m)

Coax Building Wiring Interface:

Impedance.......................................75Ω

Connector………………….……...….BNC
Distance(RG-59/U)………..1000ft (300m)
Downstream Data Rate…………20 Mbps
Upstream Data Rate……………...3 Mbps

Power:

Voltage....................................... 12 VDC

Current...................................... 200 mA

Connector..............2 Pin Terminal Block

Power Supply:

Module:…………………12VDC / 200mA

Environmental:

Operating Temp..............-10 °C to 60 °C

Storage Temp.................-40 °C to 85 °C

Humidity.............................. 0 % to 90 %

MTBF...................................>100,000 hr

Size:

Module………………….4.0” x 1.4” x .97”
(101 x 36.2 x 24.5mm)

ORDERING INFORMATION:

SLCT-1 EoC Transmitter
SLCR-1 EoC Receiver

6/2014 JPK

Ethernet over Coax (EoC) Transceiver

The American Fibertek Series SLC-1 EoC solution allows for the
utilization of existing coax cable infrastructure to transmit bi-directional
data from IP cameras and other network devices. The AFI Series SLC-1
is ideal for retrofitting existing installations from Analog Cameras to IP­based megapixel cameras.

The AFI Series SLC-1 link is a system containing a transmitter and a
receiver that requires very little installation and no set up or
configuration. The system can quickly turn any ordinary RG59 coax
cable into an IP network communication path.

The units packaging are constructed of black anodized aluminum with
corrosion resistant finish. LED indicators show the status and activity of
network communications.

The AFI Series SLC-1 system is designed to be completely transparent
to the network. Simply connect your network devices to the networking
ports on the transmitter and receiver and, using with existing coaxial
cable infrastructure, the system begins communicating.

The AFI Series SLC-1 also extends network communications to
overcome the Cat-5 network cable distance limitations of 100 meters.

Rack mount chassis for mounting multiple modules is available.

IP

Camera

SLCR-1

SLCT-1

Network

Switch

COAX

up to 1000ft

(300m)
