American Fibertek RTM-33S User Manual

Instruction Manual

RTM-33S

Three Video Transmitters

INSTALLATION AND OPERATION INSTRUCTIONS

INTRODUCTION

Thank you for purchasing your American Fibertek RTM-33S, which consists of three singlemode video transmitters. Please take a few minutes to read these installation instructions in order to obtain the maximum performance from this product.

FUNCTIONAL DESCRIPTION

The RTM-33S operates as half of a transmitter / receiver pair for the transmission of three baseband NTSC, PAL, RS170, or RS343 video signals over three strands of singlemode fiber optic cable. Each of its three independent optical outputs is designed to operate with the MRM-300S, RRM-300S, or RRM-33S video receiver. The RTM-33S contains the electronics and optics of three RTM-300S units mounted on one printed circuit board to save space and reduce cost.

The RTM-33S converts three video inputs into three separate FM modulated optical outputs using a 1300 nm wavelength source for each signal. The M33S Series product is designed to operate over an optical loss budget range of 0 to 12 dB. The RTM-33S operates on 9 um singlemode fiber. Refer to the data sheets for detailed performance specifications.

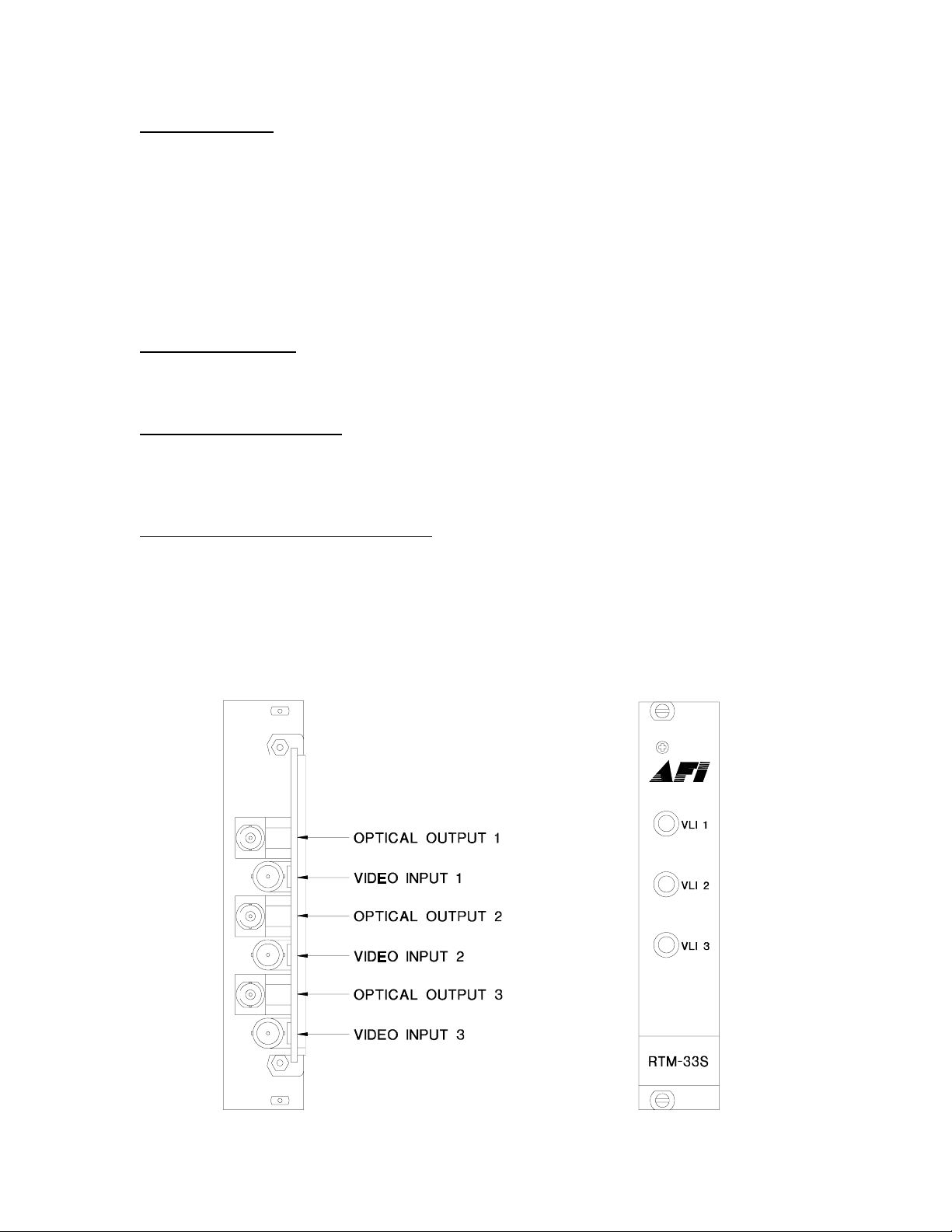

This unit is designed for rack mounting in any of the three American Fibertek subracks available. The subrack model numbers are SR-20/1, SR-20R/1, and SR-20/2. Slide in rack mounting and LED indicators provide for easy installation and monitoring of video and power.

The RTM-33S is designed for rack mounting only. For a single channel modular stand alone version please see the MTM-300S.
