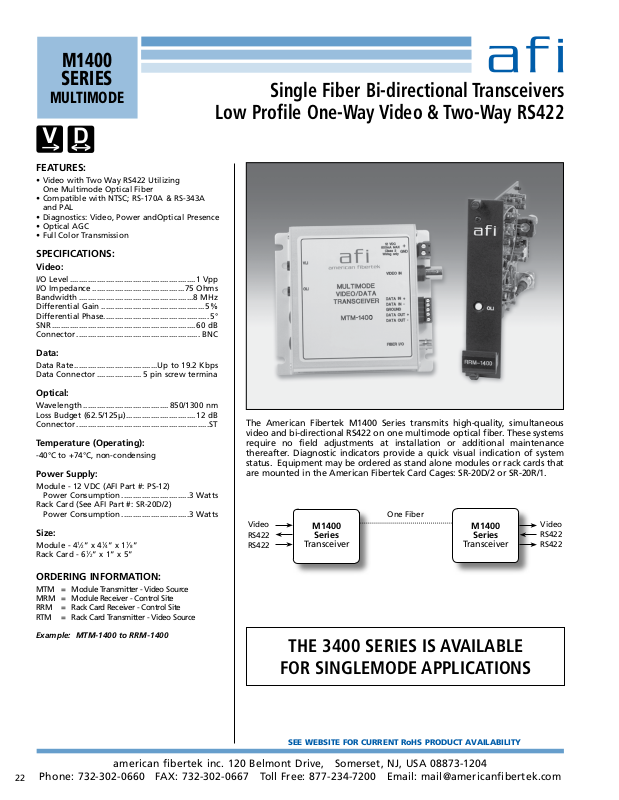

American Fibertek MTM-1400, MRM-1400, RRM-1400, RTM-1400 Specsheet

M1400
SERIES

MULTIMODE

FEATURES:

• Video with Two Way RS422 Utilizing
One Multimode Optical Fiber

• Compatible with NTSC; RS-170A & RS-343A
and PAL

• Diagnostics: Video, Power andOptical Presence

• Optical AGC

• Full Color Transmission

SPECIFICATIONS:

Video:

I/O Level ........................................................1 Vpp

I/O Impedance .........................................75 Ohms

Bandwidth ...................................................8 MHz

Differential Gain ..............................................5%

Differential Phase............................................... 5°

SNR ................................................................ 60 dB

Connector ....................................................... BNC

Data:

Data Rate .....................................Up to 19.2 Kbps

Data Connector .................... 5 pin screw termina

Single Fiber Bi-directional Transceivers

Low Profile One-Way Video & Two-Way RS422

Optical:

Wavelength ...................................... 850/1300 nm

Loss Budget (62.5/125µ) ............................... 12 dB

Connector ...........................................................ST

Temperature (Operating):

-40°C to +74°C, non-condensing

Power Supply:

Module - 12 VDC (AFI Part #: PS-12)

Power Consumption ..............................3 Watts

Rack Card (See AFI Part #: SR-20D/2)

Power Consumption ..............................3 Watts

Size:

Module - 41⁄2” x 41⁄4” x 11⁄8”
Rack Card - 61⁄2” x 1” x 5”

ORDERING INFORMATION:

MTM = Module Transmitter - Video Source
MRM = Module Receiver - Control Site
RRM = Rack Card Receiver - Control Site
RTM = Rack Card Transmitter - Video Source

Example: MTM-1400 to RRM-1400

The American Fibertek M1400 Series transmits high-quality, simultaneous
video and bi-directional RS422 on one multimode optical fiber. These systems
require no field adjustments at installation or additional maintenance
thereafter. Diagnostic indicators provide a quick visual indication of system
status. Equipment may be ordered as stand alone modules or rack cards that
are mounted in the American Fibertek Card Cages: SR-20D/2 or SR-20R/1.

Video
RS422
RS422

M1400

Series

Transceiver

One Fiber

M1400

Series

Transceiver

Video
RS422
RS422

THE 3400 SERIES IS AVAILABLE

FOR SINGLEMODE APPLICATIONS

SEE WEBSITE FOR CURRENT RoHS PRODUCT AVAILABILITY

Phone: [phone] FAX: [phone] Toll Free: 877-234-7200 Email: [e-mail]

22

american fibertek inc. 120 Belmont Drive, Somerset, NJ, USA 08873-1204
