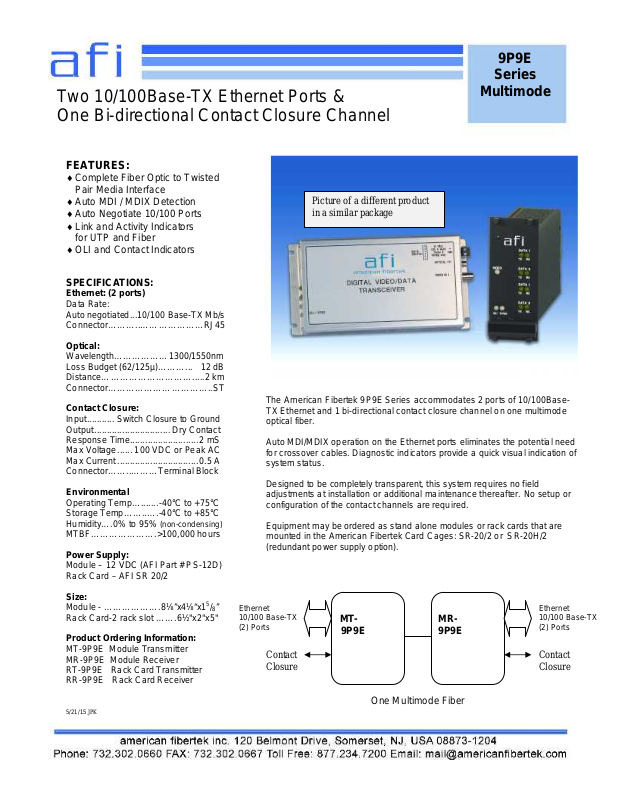

American Fibertek MT-9P9E, RT-9P9E, RR-9P9E Specsheet
9P9E
Series
Multimode
SPECIFICATIONS:
Ethernet: (2 ports)
Data Rate:
Auto negotiated...10/100 Base-TX Mb/s
Connector………..…………………RJ45
Optical:
Wavelength………………1300/1550nm
Loss Budget (62/125µ)………... 12 dB
Distance………………………….....2 km
Connector……………………………..ST
Contact Closure:
Input........... Switch Closure to Ground
Output.............................. Dry Contact
Response Time...........................2 mS
Max Voltage...... 100 VDC or Peak AC
Max Current................................0.5 A
Connector……..………Terminal Block
Environmental
Operating Temp….......-40°C to +75°C
Storage Temp……..….-40°C to +85°C
Humidity….0% to 95% (non-condensing)
MTBF………………….>100,000 hours
Power Supply:
Module – 12 VDC (AFI Part # PS-12D)
Rack Card – AFI SR 20/2
Size:
Module - ……………….8⅛”x4⅛“x15/8”
Rack Card-2 rack slot …….6½"x2"x5"
Product Ordering Information:
MT-9P9E Module Transmitter
MR-9P9E Module Receiver
RT-9P9E Rack Card Transmitter
RR-9P9E Rack Card Receiver
5/21/15 JPK
Two 10/100Base-TX Ethernet Ports &
One Bi-directional Contact Closure Channel
The American Fibertek 9P9E Series accommodates 2 ports of 10/100BaseTX Ethernet and 1 bi-directional contact closure channel on one multimode
optical fiber.
Auto MDI/MDIX operation on the Ethernet ports eliminates the potential need
for crossover cables. Diagnostic indicators provide a quick visual indication of
system status.
Designed to be completely transparent, this system requires no field
adjustments at installation or additional maintenance thereafter. No setup or
configuration of the contact channels are required.
Equipment may be ordered as stand alone modules or rack cards that are
mounted in the American Fibertek Card Cages: SR-20/2 or SR-20H/2
(redundant power supply option).
MT-
9P9E
MR9P9E
One Multimode Fiber
Ethernet
10/100 Base-TX
(2) Ports
Ethernet
10/100 Base-TX
(2) Ports
Contact
Closure
Contact
Closure
FEATURES:
Complete Fiber Optic to Twisted
Pair Media Interface
Auto MDI / MDIX Detection
Auto Negotiate 10/100 Ports
Link and Activity Indicators
for UTP and Fiber
OLI and Contact Indicators
Picture of a different product
in a similar package
