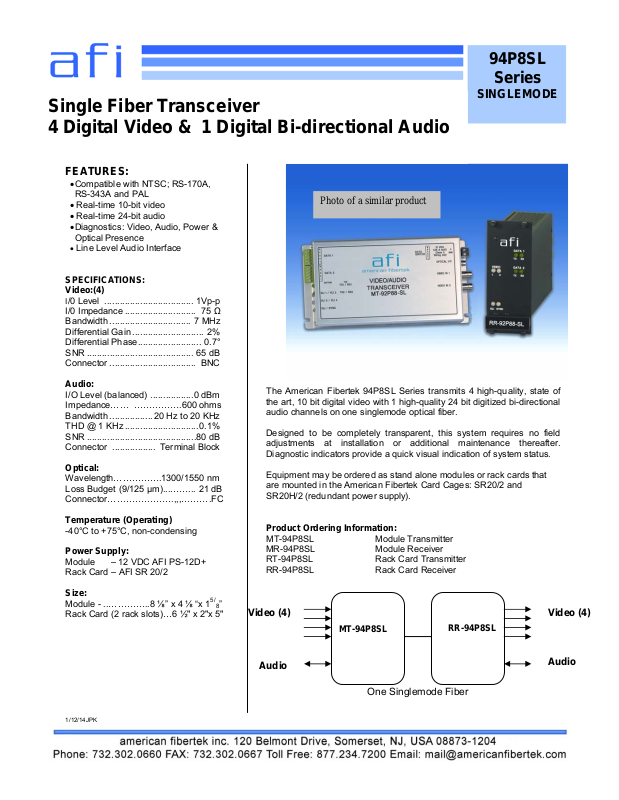

American Fibertek MR-94P8-SL, RT-94P8-SL, RR-94P8-SL Specsheet

Single Fiber Transceiver

94P8SL

Series

SINGLEMODE

4 Digital Video & 1 Digital Bi-directional Audio

FEATURES:

 Compatible with NTSC; RS-170A,

RS-343A and PAL

 Real-time 10-bit video
 Real-time 24-bit audio
 Diagnostics: Video, Audio, Power &

Optical Presence

 Line Level Audio Interface

SPECIFICATIONS:
Video:(4)

I/0 Level ................................... 1Vp-p

I/0 Impedance ............................ 75 Ω

Bandwidth ................................ 7 MHz

Differential Gain ............................ 2%

Differential Phase......................... 0.7°

SNR .......................................... 65 dB

Connector .................................. BNC

Audio:

I/O Level (balanced) .................0 dBm

Impedance…… …………….600 ohms

Bandwidth ................. 20 Hz to 20 KHz

THD @ 1 KHz .............................0.1%

SNR ...........................................80 dB

Connector ................. Terminal Block

Optical:

Wavelength…………….1300/1550 nm
Loss Budget (9/125 µm)...……... 21 dB
Connector………………….,,,……….FC

Temperature (Operating)

-40°C to +75°C, non-condensing

Power Supply:

Module – 12 VDC AFI PS-12D+
Rack Card – AFI SR 20/2

Size:

Module - ..…………..8 ⅛” x 4 ⅛ “x 1
Rack Card (2 rack slots)…6 ½" x 2"x 5"

1/12/14JPK

5/

8

”

The American Fibertek 94P8SL Series transmits 4 high-quality, state of
the art, 10 bit digital video with 1 high-quality 24 bit digitized bi-directional
audio channels on one singlemode optical fiber.

Designed to be completely transparent, this system requires no field
adjustments at installation or additional maintenance thereafter.
Diagnostic indicators provide a quick visual indication of system status.

Equipment may be ordered as stand alone modules or rack cards that
are mounted in the American Fibertek Card Cages: SR20/2 and
SR20H/2 (redundant power supply).

Product Ordering Information:

MT-94P8SL Module Transmitter
MR-94P8SL Module Receiver
RT-94P8SL Rack Card Transmitter
RR-94P8SL Rack Card Receiver

Video (4)

Audio

Photo of a similar product

MT-94P8SL

One Singlemode Fiber

RR-94P8SL

Video (4)

Audio
