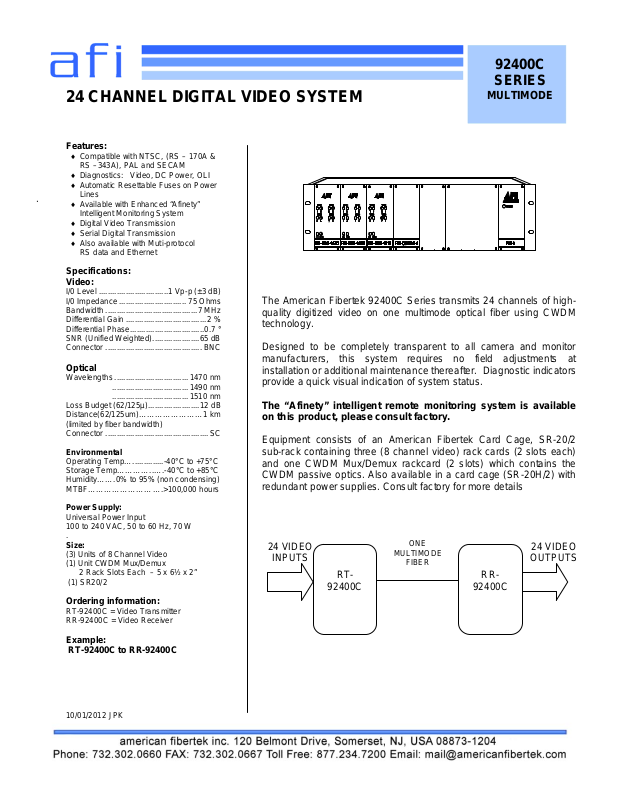

American Fibertek RT-92400C, RR-92400C Specsheet
24 CHANNEL DIGITAL VIDEO SYSTEM
92400C
SERIES
MULTIMODE
Features:
.
Compatible with NTSC, (RS – 170A &
RS –343A), PAL and SECAM
Diagnostics: Video, DC Power, OLI
Automatic Resettable Fuses on Power
Lines
Available with Enhanced “Afinety”
Intelligent Monitoring System
Digital Video Transmission
Serial Digital Transmission
Also available with Muti-protocol
RS data and Ethernet
Specifications:
Video:
I/0 Level ...............................1 Vp-p (±3 dB)
I/0 Impedance ..............................75 Ohms
Bandwidth .........................................7 MHz
Differential Gain ....................................2 %
Differential Phase.................................0.7 °
SNR (Unified Weighted).....................65 dB
Connector ........................................... BNC
Optical
Wavelengths .................................1470 nm
..................................1490 nm
..................................1510 nm
Loss Budget (62/125µ).......................12 dB
Distance(62/125um)……………………1 km
(limited by fiber bandwidth)
Connector ..............................................SC
Environmental
Operating Temp…..............-40°C to +75°C
Storage Temp…………..….-40°C to +85°C
Humidity…….0% to 95% (non condensing)
MTBF……………………….>100,000 hours
Power Supply:
Universal Power Input
100 to 240 VAC, 50 to 60 Hz, 70 W
.
Size:
(3) Units of 8 Channel Video
(1) Unit CWDM Mux/Demux
2 Rack Slots Each – 5 x 6½ x 2”
(1) SR20/2
Ordering information:
RT-92400C = Video Transmitter
RR-92400C = Video Receiver
Example:
RT-92400C to RR-92400C
10/01/2012 JPK
The American Fibertek 92400C Series transmits 24 channels of highquality digitized video on one multimode optical fiber using CWDM
technology.
Designed to be completely transparent to all camera and monitor
manufacturers, this system requires no field adjustments at
installation or additional maintenance thereafter. Diagnostic indicators
provide a quick visual indication of system status.
The “Afinety” intelligent remote monitoring system is available
on this product, please consult factory.
Equipment consists of an American Fibertek Card Cage, SR-20/2
sub-rack containing three (8 channel video) rack cards (2 slots each)
and one CWDM Mux/Demux rackcard (2 slots) which contains the
CWDM passive optics. Also available in a card cage (SR-20H/2) with
redundant power supplies. Consult factory for more details
24 VIDEO
INPUTS
RT-
92400C
ONE
MULTIMODE
FIBER
RR-
92400C
24 VIDEO
OUTPUTS
