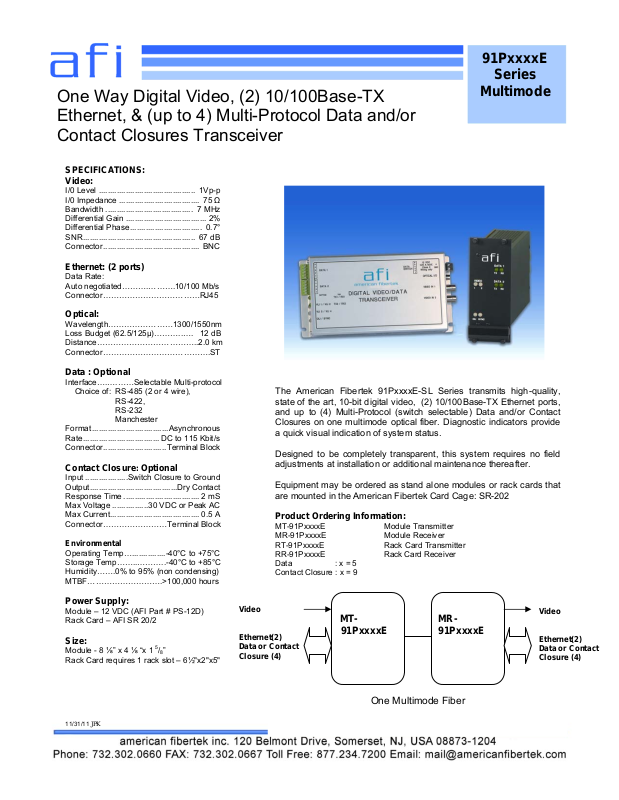

American Fibertek MT-91P9999E, MT-91P9999E-SL, RT-91P9999E, RR-91P5555E Specsheet
One Way Digital Video, (2) 10/100Base-TX
Ethernet, & (up to 4) Multi-Protocol Data and/or
Contact Closures Transceiver
SPECIFICATIONS:
Video:
I/0 Level ........................................... 1Vp-p
I/0 Impedance .................................... 75 Ω
Bandwidth ....................................... 7 MHz
Differential Gain .................................... 2%
Differential Phase................................ 0.7°
SNR.................................................. 67 dB
Connector........................................... BNC
Ethernet: (2 ports)
Data Rate:
Auto negotiated……….……….10/100 Mb/s
Connector………………………………RJ45
Optical:
Wavelength……………………1300/1550nm
Loss Budget (62.5/125µ)………..…. 12 dB
Distance………………………………..2.0 km
Connector………………………………….ST
Data : Optional
Interface….….……Selectable Multi-protocol
Choice of: RS-485 (2 or 4 wire),
RS-422,
RS-232
Manchester
Format ..................................Asynchronous
Rate.................................. DC to 115 Kbit/s
Connector............................ Terminal Block
Contact Closure
Input ...................Switch Closure to Ground
Output.......................................Dry Contact
Response Time .................................. 2 mS
Max Voltage ................30 VDC or Peak AC
Max Current........................................ 0.5 A
Connector……………………Terminal Block
: Optional
Environmental
Operating Temp…...............-40°C to +75°C
Storage Temp……..………..-40°C to +85°C
Humidity…….0% to 95% (non condensing)
MTBF……………………….>100,000 hours
Power Supply:
Module – 12 VDC (AFI Part # PS-12D)
Rack Card – AFI SR 20/2
Size:
Module - 8 ⅛” x 4 ⅛ “x 1 5/8”
Rack Card requires 1 rack slot – 6½"x2"x5"
11/31/11 JPK
Video
Ethernet(2)
Data or Contact
Closure (4)
The American Fibertek 91PxxxxE-SL Series transmits high-quality,
state of the art, 10-bit digital video, (2) 10/100Base-TX Ethernet ports,
and up to (4) Multi-Protocol (switch selectable) Data and/or Contact
Closures on one multimode optical fiber. Diagnostic indicators provide
a quick visual indication of system status.
Designed to be completely transparent, this system requires no field
adjustments at installation or additional maintenance thereafter.
Equipment may be ordered as stand alone modules or rack cards that
are mounted in the American Fibertek Card Cage: SR-202
Product Ordering Information:
MT-91PxxxxE Module Transmitter
MR-91PxxxxE Module Receiver
RT-91PxxxxE Rack Card Transmitter
RR-91PxxxxE Rack Card Receiver
Data : x = 5
Contact Closure : x = 9
MT-
91PxxxxE
One Multimode Fiber
MR 91PxxxxE
91PxxxxE
Series
Multimode
Video
Ethernet(2)
Data or Contact
Closure (4)
