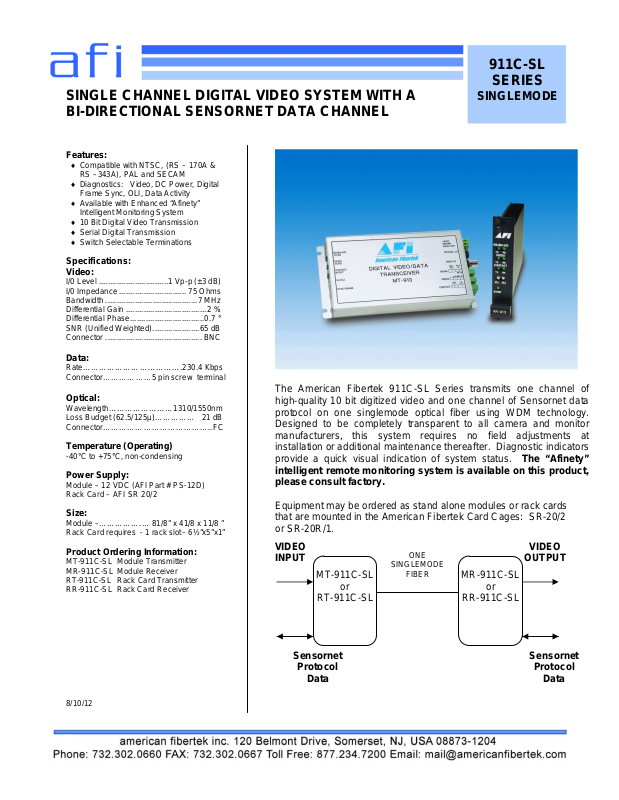

SINGLE CHANNEL DIGITAL VIDEO SYSTEM WITH A
-
911C-SL
SERIES
SINGLEMODE
Features:
♦ Compatible with NTSC, (RS – 170A &
RS –343A), PAL and SECAM
♦ Diagnostics: Video, DC Power, Digital
Frame Sync, OLI, Data Activity
♦ Available with Enhanced “Afinety”
Intelligent Monitoring System
♦ 10 Bit Digital Video Transmission
♦ Serial Digital Transmission
♦ Switch Selectable Terminations
Specifications:
Video:
I/0 Level ...............................1 Vp-p (±3 dB)
I/0 Impedance ..............................75 Ohms
Bandwidth .........................................7 MHz
Differential Gain ....................................2 %
Differential Phase.................................0.7 °
SNR (Unified Weighted).....................65 dB
Connector ........................................... BNC
Data:
Rate……………………………….230.4 Kbps
Connector………………5 pin screw terminal
Optical:
Wavelength……………………1310/1550nm
Loss Budget (62.5/125µ)…………… 21 dB
Connector…………………………………..FC
Temperature (Operating)
-40°C to +75°C, non-condensing
Power Supply:
Module – 12 VDC (AFI Part # PS-12D)
Rack Card – AFI SR 20/2
Size:
Module –…………….… 81/8” x 41/8 x 11/8 ”
Rack Card requires - 1 rack slot– 6½”x5”x1”
Product Ordering Information:
MT-911C-SL Module Transmitter
MR-911C-SL Module Receiver
RT-911C-SL Rack Card Transmitter
RR-911C-SL Rack Card Receiver
The American Fibertek 911C-SL Series transmits one channel of
high-quality 10 bit digitized video and one channel of Sensornet data
protocol on one singlemode optical fiber using WDM technology.
Designed to be completely transparent to all camera and monitor
manufacturers, this system requires no field adjustments at
installation or additional maintenance thereafter. Diagnostic indicators
provide a quick visual indication of system status. The “Afinety”
intelligent remote monitoring system is available on this product,
please consult factory.
Equipment may be ordered as stand alone modules or rack cards
that are mounted in the American Fibertek Card Cages: SR-20/2
or SR-20R/1.
VIDEO
INPUT
Sensornet
Protocol
MT-911C-SL
or
RT-911C-SL
Data
ONE
SINGLEMODE
FIBER
MR-911C-SL
or
RR-911C-SL
VIDEO
OUTPUT
Sensornet
Protocol
Data
