Four Channel Video Transmitter

Instruction Manual

RT-440C-E

INSTALLATION AND OPERATION INSTRUCTIONS

INTRODUCTION

Thank you for purchasing your American Fibertek RT-440C-E multimode four channel video
transmitter. Please take a few minutes to read these installation instructions in order to obtain
the maximum performance from this product.

FUNCTIONAL DESCRIPTION

The RT-440C-E operates as half of a transmitter / receiver pair for the transmission of four
simultaneous, real time, baseband NTSC, PAL, RS170, or RS343 video signals. The RT-440C­E is designed to operate with the MR-440C-E or RR-440C-E four channel video receiver over
one multimode fiber optic cable.

The RT-440C-E transmitter accepts up to four video inputs. Each video input modulates a
separate FM carrier frequency to allow the total of four video signals to be combined onto one
fiber. The 440C-E Series product is designed to operate over an optical loss budget range of 5
to 16 dB when used on 62.5 um multimode fiber. A maximum distance of 8km can be achieved
as long as the system fiber cable used has a modal bandwidth specification of 600 MHz-km or
higher. Lower bandwidth specifications will result in a reduced maximum distance. The RT­440C-E will also operate on 50 um multimode fiber at a reduced loss budget range. Refer to the
product specification sheet for additional performance data.

This unit is designed for rack mounting in any of the four American Fibertek subracks available.
The subrack model numbers are SR-20/1, SR-20R/1, SR-20/2, and SR-20D/2. Slide in rack
mounting and LED indicators provide for easy installation and monitoring of video and dc power.

The RT-440C-E is designed for rack mounting only. For a modular stand alone version please
see the MT-440C-E.

INSTALLATION

THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND
SHOULD CONFORM TO THE NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 AND LOCAL
CODES.

2

The unit slides into any two adjacent open slots in the SR-20 subrack. Use a small screwdriver
to push and lock the four ¼ turn fasteners into place.

POWER SOURCE

Power to the unit is supplied by the subrack. Please refer to the SR-20 and PSR instructions for
further details.

POWER CONNECTION

Power is supplied to the unit via a four finger backplane connector. The RT-440C-E can be
inserted into the subrack or removed from the subrack with power applied to the backplane.

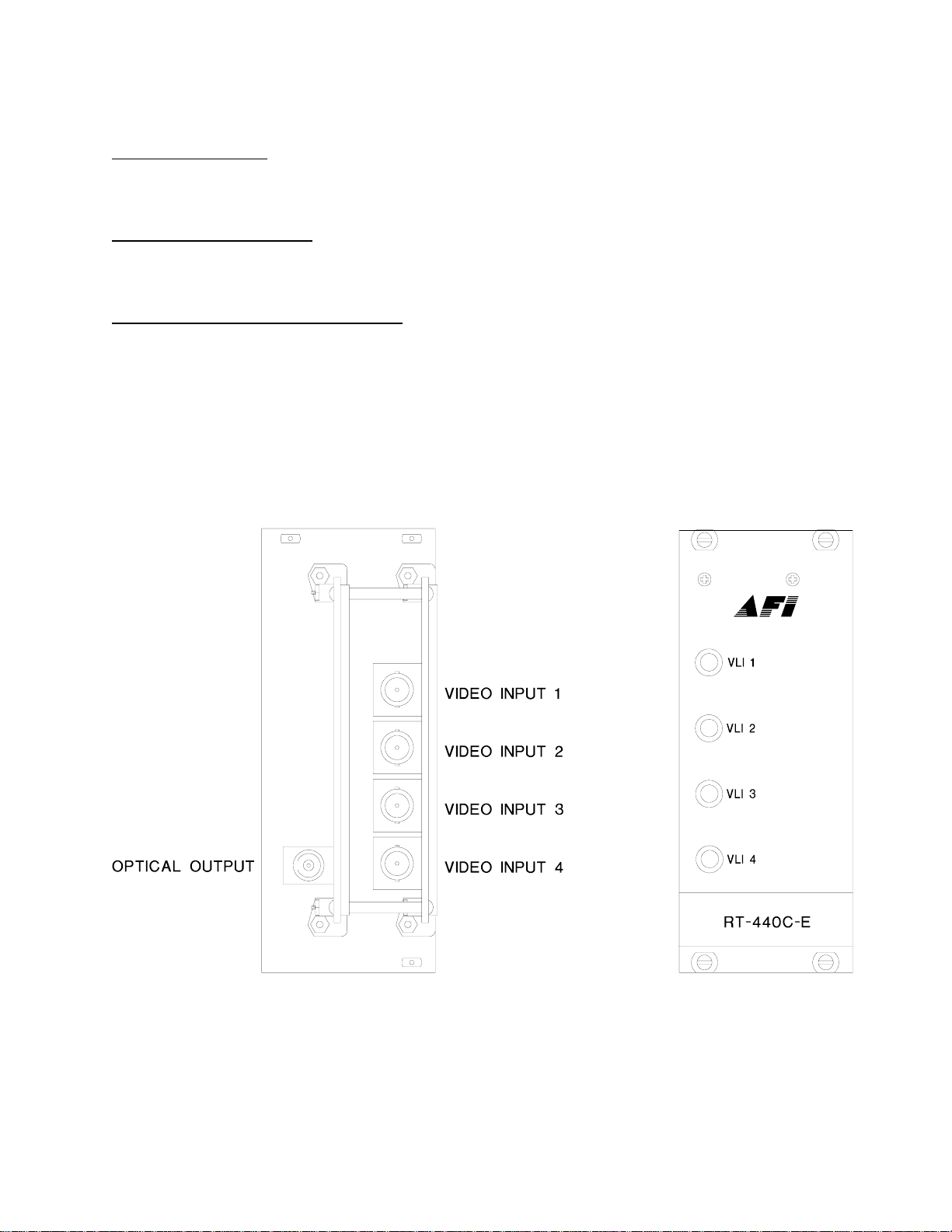

INPUT / OUTPUT CONNECTIONS

The fiber optic connection is made via a ST connector located on the back of the unit. Be sure
to allow sufficient room for the required minimum bend radius of the fiber cable used.

Video input connections are also located on the back of the unit. A BNC connector is provided
for each channel. The video inputs are connected to an appropriate 75Ω baseband video
source such as a camera or a video recorder output. For optimum performance the video cables
should be the shortest length of coax practical.

3

RT-440C-E STATUS INDICATORS

The RT-440C-E transmitter provides the following LED status indicators to aid in installation and
troubleshooting:

VLI 1 THROUGH VLI 4

A bi-color LED indicator is provided for each of the four video channel inputs. Video status
associated with each of these LEDs is summarized below.

Video Level Indicator Video Status

Green Proper Input Video Present

Red Input Video Not Detected

Off Check Power Supply
