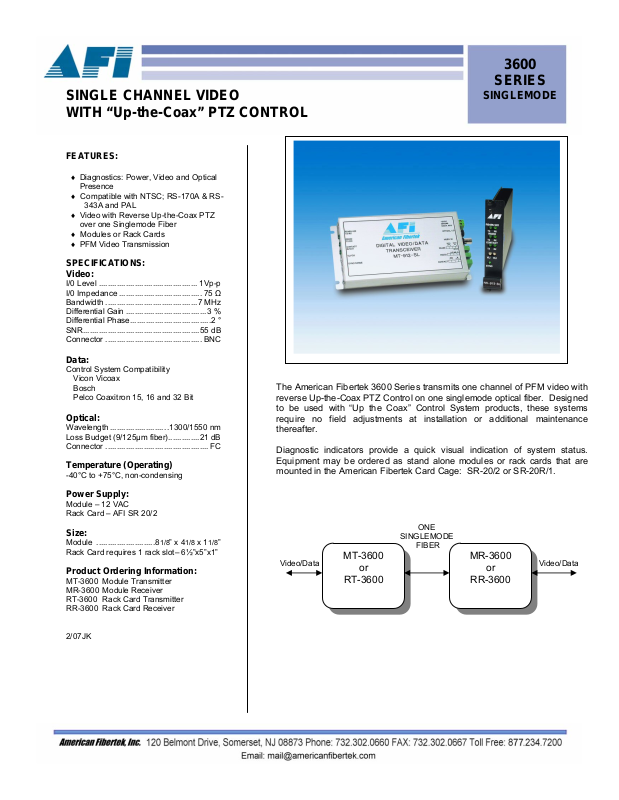

American Fibertek RT-3600C Specsheet
SINGLE CHANNEL VIDEO
WITH “Up-the-Coax” PTZ CONTROL
3600
SERIES
SINGLEMODE
FEATURES:
♦ Diagnostics: Power, Video and Optical
Presence
♦ Compatible with NTSC; RS-170A & RS-
343A and PAL
♦ Video with Reverse Up-the-Coax PTZ
over one Singlemode Fiber
♦ Modules or Rack Cards
♦ PFM Video Transmission
SPECIFICATIONS:
Video:
I/0 Level ............................................ 1Vp-p
I/0 Impedance ..................................... 75 Ω
Bandwidth .........................................7 MHz
Differential Gain ....................................3 %
Differential Phase....................................2 °
SNR....................................................55 dB
Connector ........................................... BNC
Data:
Control System Compatibility
Vicon Vicoax
Bosch
Pelco Coaxitron 15, 16 and 32 Bit
Optical:
Wavelength ......................... .1300/1550 nm
Loss Budget (9/125µm fiber)..............21 dB
Connector .............................................. FC
Temperature (Operating)
-40°C to +75°C, non-condensing
Power Supply:
Module – 12 VAC
Rack Card – AFI SR 20/2
Size:
Module ..........................81/8” x 41/8 x 11/8”
Rack Card requires 1 rack slot– 6½”x5”x1”
Product Ordering Information:
MT-3600 Module Transmitter
MR-3600 Module Receiver
RT-3600 Rack Card Transmitter
RR-3600 Rack Card Receiver
2/07JK
The American Fibertek 3600 Series transmits one channel of PFM video with
reverse Up-the-Coax PTZ Control on one singlemode optical fiber. Designed
to be used with “Up the Coax” Control System products, these systems
require no field adjustments at installation or additional maintenance
thereafter.
Diagnostic indicators provide a quick visual indication of system status.
Equipment may be ordered as stand alone modules or rack cards that are
mounted in the American Fibertek Card Cage: SR-20/2 or SR-20R/1.
ONE
SINGLEMODE
FIBER
Video/Data
MT-3600
or
RT-3600
MR-3600
or
RR-3600
Video/Data
