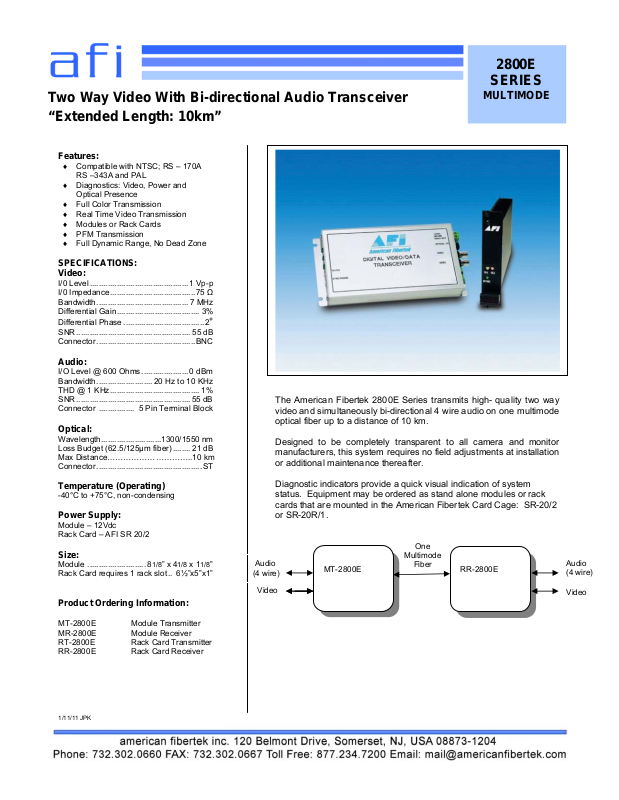

American Fibertek MT-2800E, MR-2800E, MR-2800E-2W, RT-2800E, RR-2800E Specsheet

Two Way Video With Bi-directional Audio Transceiver

g

r

“Extended Len

Features:

♦ Compatible with NTSC; RS – 170A

RS –343A and PAL

♦ Diagnostics: Video, Power and

Optical Presence

♦ Full Color Transmission
♦ Real Time Video Transmission
♦ Modules or Rack Cards
♦ PFM Transmission
♦ Full Dynamic Range, No Dead Zone

SPECIFICATIONS:
Video:

I/0 Level ............................................ 1 Vp-p

I/0 Impedance...................................... 75 Ω

Bandwidth......................................... 7 MHz

Differential Gain..................................... 3%

Differential Phase ....................................2

SNR ................................................... 55 dB

Connector ............................................ BNC

Audio:

I/O Level @ 600 Ohms..................... 0 dBm

Bandwidth......................... 20 Hz to 10 KHz

THD @ 1 KHz........................................ 1%

SNR ................................................... 55 dB

Connector ................ 5 Pin Terminal Block

Optical:

Wavelength...........................1300/1550 nm

Loss Budget (62.5/125µm fiber) ........ 21 dB

Max Distance…………………………..10 km

Connector ............................................... ST

Temperature (Operating)

-40°C to +75°C, non-condensing

Power Supply:

Module – 12Vdc
Rack Card – AFI SR 20/2

Size:

Module .......................... 81/8” x 41/8 x 11/8”

Rack Card requires 1 rack slot .. 6½”x5”x1”

Product Ordering Information:

MT-2800E Module Transmitter
MR-2800E Module Receiver
RT-2800E Rack Card Transmitter
RR-2800E Rack Card Receiver

1/11/11 JPK

th: 10km”

°

The American Fibertek 2800E Series transmits high- quality two way
video and simultaneously bi-directional 4 wire audio on one multimode
optical fiber up to a distance of 10 km.

Designed to be completely transparent to all camera and monitor
manufacturers, this system requires no field adjustments at installation
or additional maintenance thereafter.

Diagnostic indicators provide a quick visual indication of system
status. Equipment may be ordered as stand alone modules or rack
cards that are mounted in the American Fibertek Card Cage: SR-20/2
or SR-20R/1.

Audio
(4 wire)

Video

MT-2800E

One

Multimode

Fibe

2800E

SERIES

MULTIMODE

RR-2800E

Audio
(4 wire)

Video
