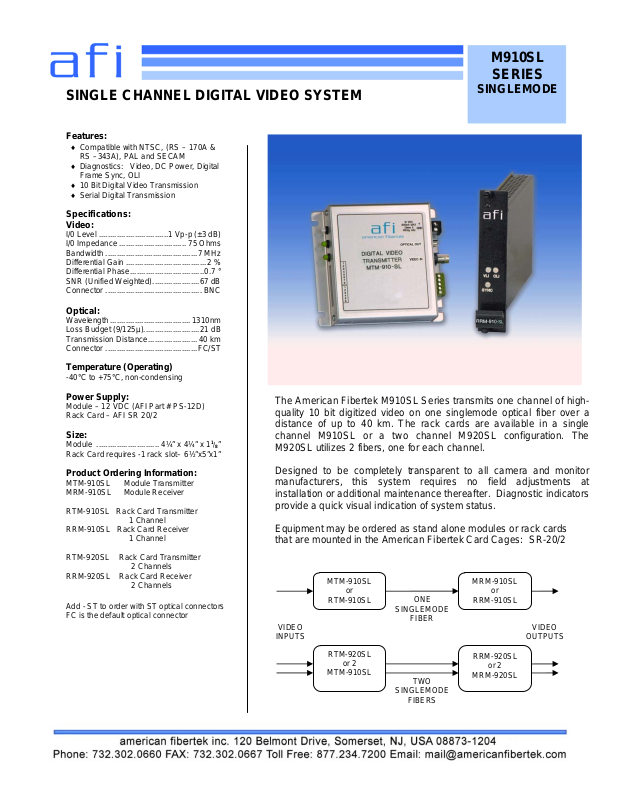

American Fibertek MTM-910SL, MRM-910SL, RRM-910SL, RRM-920SL Specsheet

SINGLE CHANNEL DIGITAL VIDEO SYSTEM

g

M910SL

SERIES

SINGLEMODE

Features:

 Compatible with NTSC, (RS – 170A &

RS –343A), PAL and SECAM

 Diagnostics: Video, DC Power, Digital

Frame Sync, OLI

 10 Bit Digital Video Transmission
 Serial Digital Transmission

Specifications:
Video:

I/0 Level ...............................1 Vp-p (±3 dB)

I/0 Impedance ..............................75 Ohms

Bandwidth .........................................7 MHz

Differential Gain ....................................2 %

Differential Phase.................................0.7 °

SNR (Unified Weighted).....................67 dB

Connector ........................................... BNC

Optical:

Wavelength....................................1310nm

Loss Budget (9/125µ).........................21 dB

Transmission Distance...................... 40 km

Connector .........................................FC/ST

Temperature (Operating)

-40°C to +75°C, non-condensing

Power Supply:

Module – 12 VDC (AFI Part # PS-12D)
Rack Card – AFI SR 20/2

Size:

Module ............................4¼” x 4¼” x 1

Rack Card requires -1 rack slot– 6½”x5”x1”

1

/

”

8

Product Ordering Information:

MTM-910SL Module Transmitter
MRM-910SL Module Receiver

RTM-910SL Rack Card Transmitter
1 Channel
RRM-910SL Rack Card Receiver
1 Channel

RTM-920SL Rack Card Transmitter
2 Channels
RRM-920SL Rack Card Receiver
2 Channels

Add - ST to order with ST optical connectors
FC is the default optical connector

The American Fibertek M910SL Series transmits one channel of high­quality 10 bit digitized video on one singlemode optical fiber over a
distance of up to 40 km. The rack cards are available in a single
channel M910SL or a two channel M920SL configuration. The
M920SL utilizes 2 fibers, one for each channel.

Designed to be completely transparent to all camera and monitor
manufacturers, this system requires no field adjustments at
installation or additional maintenance thereafter. Diagnostic indicators
provide a quick visual indication of system status.

Equipment may be ordered as stand alone modules or rack cards
that are mounted in the American Fibertek Card Ca

VIDEO

INPUTS

MTM-910SL

or

RTM-910SL

RTM-920SL

or 2

MTM-910SL

ONE

SINGLEMODE

SINGLEMODE

FIBER

TWO

FIBERS

MRM-910SL
RRM-910SL

RRM-920SL
MRM-920SL

es: SR-20/2

or

VIDEO

OUTPUTS

or 2
