INSTALLATION AND OPERATION INSTRUCTIONS
INTRODUCTION
Thank you for purchasing your American Fibertek RR-913 multimode video receiver with bi-directional
multi-protocol data. Please take a few minutes to read these installation instructions in order to obtain
the maximum performance from this product.
FUNCTIONAL DESCRIPTION
The RR-913 operates as half of a transmitter / receiver pair for the transmission of high performance 10
bit digital NTSC, PAL, RS170, or RS343 video signals. The RR-913 also supports up to three bidirectional channels of RS485 (2 or 4 wire), RS422, RS232 or Manchester data. Switch selection
allows for multiple data configurations in one of the following three formats:
Channel 1: RS422 or RS232 data
Channel 2: RS422 or RS232 data
Channel 3: RS422 or RS232 data
Or:
Channel 1: RS422 or RS232 data
Channel 2: RS485 (2 or 4 wire) or Manchester data
Channel 3: RS422 or RS232 data
Or:
Channel 1: RS485 (2 or 4 wire) or Manchester data
Channel 2: RS485 (2 or 4 wire) or Manchester data
Channel 3: Not available in this configuration
NOTE: This unit is shipped in the following default configuration. For other configurations,
please refer to the DATA CONFIGURATION section for changes to the default switch settings.
Channel 1: RS422 data
Channel 2: RS485 (4 wire) or Manchester data
Channel 3: RS232 data
The RR-913 is designed to operate with the MT-913 or RT-913 video transmitter with bi-directional data
over one multimode fiber optic cable.
The RR-913 multiplexes up to three data signals into a high speed serial data stream. This serial data
stream modulates a laser at 1550 nm wavelength. The RR-913 also detects and demultiplexes a return
optical serial data stream signal containing a single video input signal along with up to three data
channels at 1310 nm wavelength. The 913 Series product is designed to operate over an optical loss
budget range of 0 to 12 dB. Refer to the data sheets for detailed performance specifications.
The RS485 channel may be configured for 2-wire (half duplex) or 4-wire (full duplex) operation with or
without biasing. Switch selectable internal 120 ohm terminations are available for RS422 or RS485
data.
This unit is designed for rack mounting in either of two American Fibertek subracks available. The
subrack model numbers are SR-20/2 or SR-20D/2. Slide in rack mounting, detachable terminal blocks,
and LED indicators provide for easy installation and monitoring of video, data, and optical power.
The RR-913 is designed for rack mounting only. For a modular stand alone version please see the MR-
913.
3
Page 4
INSTALLATION
THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD
CONFORM TO THE NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 AND LOCAL CODES.
The unit slides into any open slot in the SR-20 or SR-20D subrack. Use a small screwdriver to push
and lock the two ¼ turn fasteners into place.
POWER SOURCE
Power to the unit is supplied by the subrack. Please refer to the SR-20/SR20D and PSR-2 instructions
for further details.
POWER CONNECTION
Power is supplied to the unit via a four finger backplane connector. The RR-913 can be inserted into
the subrack or removed from the subrack with power applied to the backplane.
FIBER CONNECTION
The fiber optic connection is made via a ST connector located on the back of the unit. Be sure to allow
sufficient room for the required minimum bend radius of the fiber cable used.
VIDEO OUTPUT CONNECTION
The video output connection is made via a BNC connector on the back of the unit. The 75Ω video
output can be looped through typical baseband video inputs of switchers, recorders and other
equipment as required. For proper operation, the output must be terminated with 75Ω. For optimum
performance the video cables should be the shortest length of coax practical.
4
Page 5

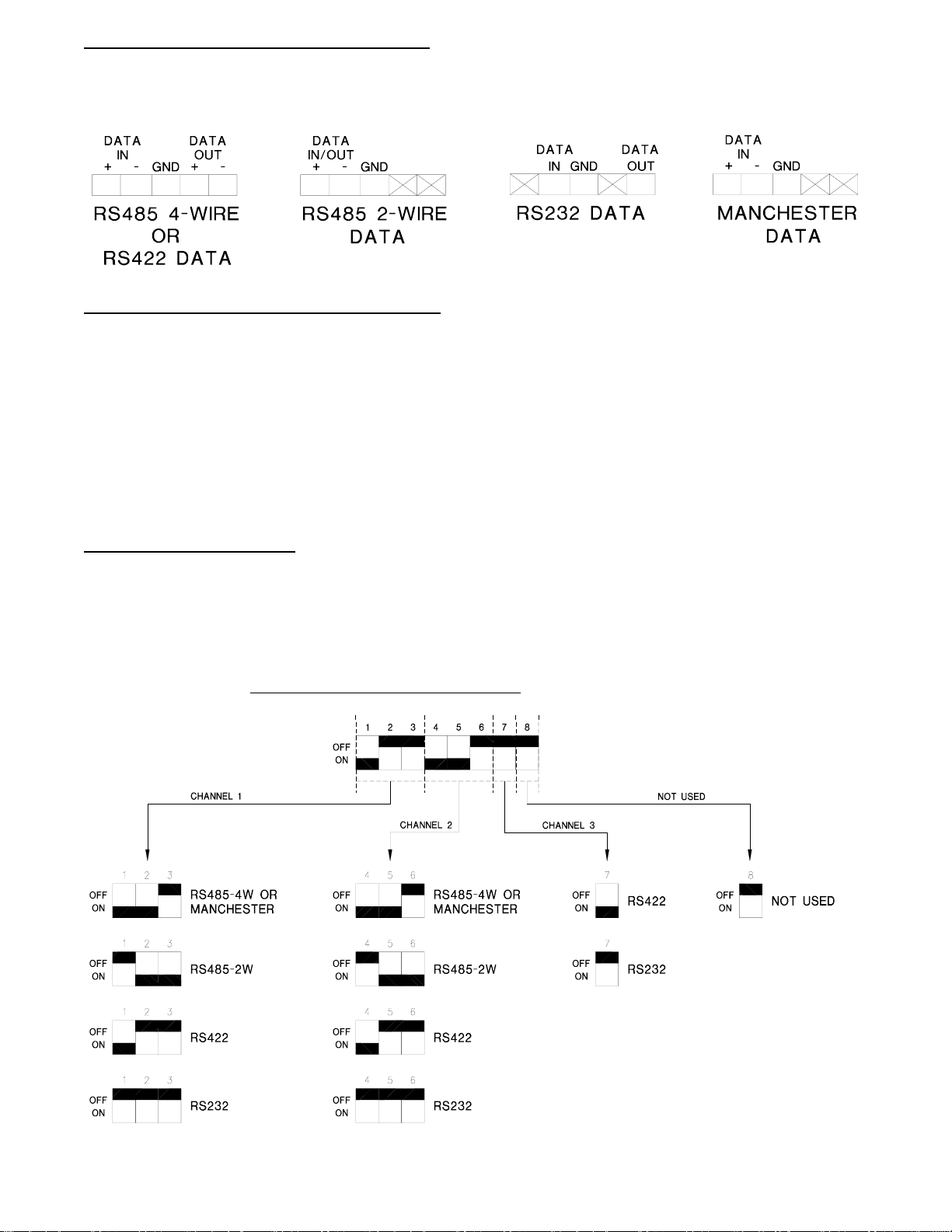

DATA INPUT / OUTPUT CONNECTIONS
Data input and output connections are made via terminal blocks on the back of the unit. See the
drawings below for proper orientation of input and output connections. Please note that the far right pin
on each connection drawing corresponds with the far right pin when looking at the terminal block from
the back of the unit.
TYPICAL SYSTEM DATA CONNECTIONS
The RS422 or RS485 four wire interconnection between the RR-913 and the copper device to which it
is attached is based on industry standard EIA terminology for the transmission of electronic data
signals. Using this terminology, the driver of an electronic signal is labeled TX or Data Out.
Correspondingly, the receiver of an electronic signal is labeled RX or Data In. Following this standard,
the Data Out of the copper device is connected to the Data In of the RR-913. The plus terminal of the
copper device is connected to the plus terminal of the RR-913 and the minus is connected to the
minus. The reverse flow of data from the RR-913 to the copper device follows the same pattern. Not all
manufactures follow standard EIA terminology. Consult the installation instructions for your copper
device if you are unsure which two wires are the drive (data out) wires and which two wires are the
receive (data in) wires.
DATA CONFIGURATION
NOTE: This unit is shipped in the following default configuration.
Channel 1: RS422 data
Channel 2: RS485 (4 wire) or Manchester data
Channel 3: RS232 data
For other configurations, please refer to the drawing below for changes to the default switch settings.
These configuration switches are located on the bottom of the unit and can be modified without opening
the unit.
Refer to FUNCTIONAL DESCRIPTION section for a list of allowable channel
configurations.
5
Page 6

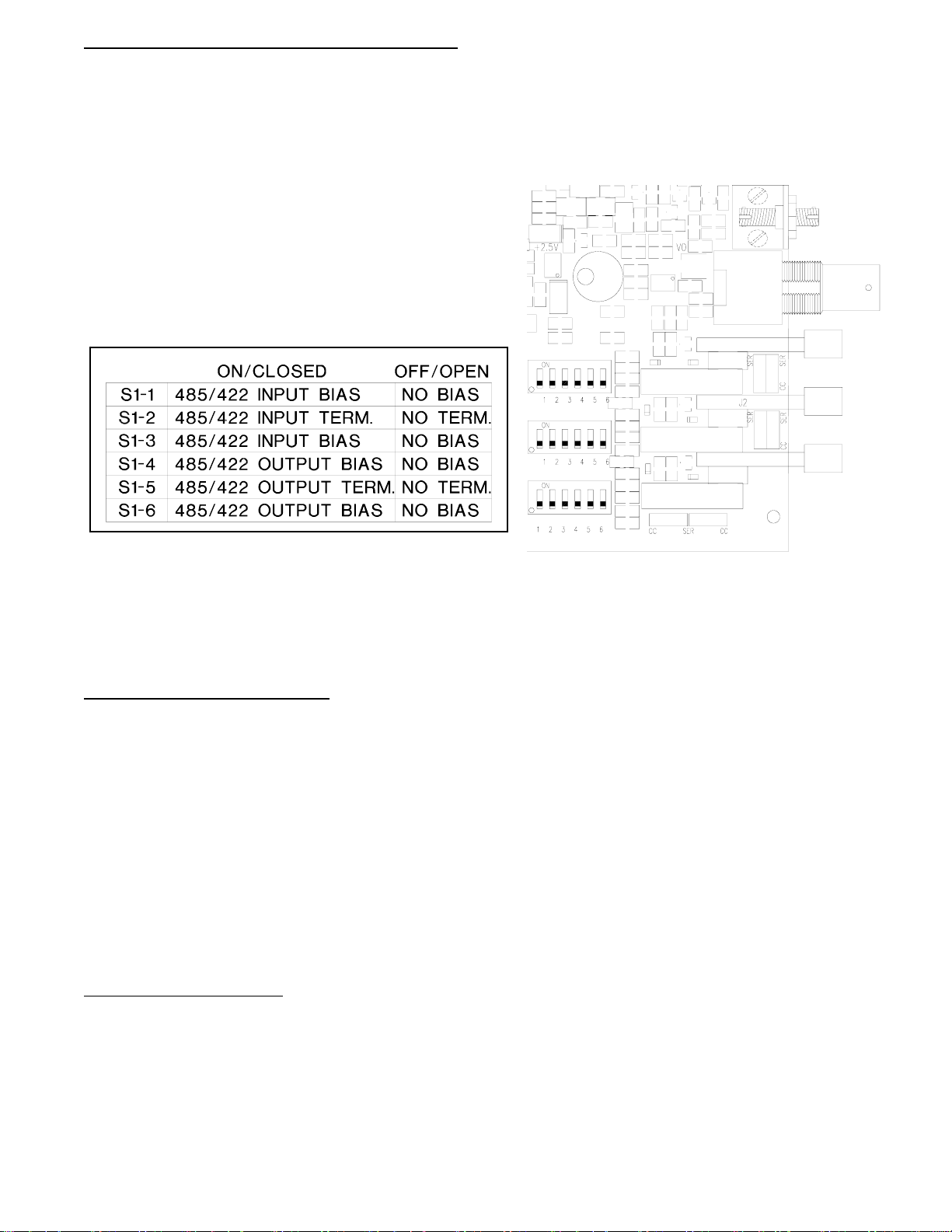

CHANNEL BIAS/TERMINATION SWITCHES
Switches are available internally that allow offset bias and termination features to be activated when
using RS485 data. These switches also allow termination features to be activated when using RS422
data. In order to reconfigure the RS485/422 channel, the rack card cover needs to be removed. To
open the RR-913, remove the two screws at the left rear of unit near data and fiber connections. Also
remove the two screws at the right front of unit (top of cover). The configuration switch banks are
located at the lower right corner of PCB next to the data terminals (See drawing below).
The RR-913 is shipped with these switches in the off
(down) position. When transmitting RS232 or
Manchester data, the bias and termination switches
must remain in the off (down) position. The top (S1)
switches correspond to channel 1. The middle and
bottom switch banks correspond to channel 2 and 3
respectively. The chart below describes the layout of
the top (S1) switch bank. The remaining switch banks
follow the same layout.
Please remember when using offset bias switches
that they must be used in pairs. If switch # 1 is up then
switch # 3 must also be up. The same situation applies for switch # 4 and switch # 6. Also, if using
offset bias, it is important that the corresponding termination resistor switch be in the on (up) position.
Using offset bias without a termination on the line will cause communications to fail. An explanation
follows on general bias and termination guidelines.
RS485 DATA TERMINATION
The RS485 protocol is an expanded version of the original RS422 protocol. RS485 differs from RS422
in the ability of the transmitter devices to go into a high impedance (Hi-Z) state. This allows multiple
transmitter devices to reside on the same wire pair. The software must dictate a protocol that allows
only one device to transmit at any one time to prevent data crashes. In many cases the system head
end controller will continuously poll data from all remote devices. The remote devices all respond back
to the head end (one at a time) as they are addressed. The driver chips that are used in RS485
communications are capable of changing into their high impedance state very rapidly. On even short
lengths of wire there can exist a residual voltage after a driver circuit turns off. This can interfere with
circuits that are used to detect the Hi-Z state. It is very important that the copper communications lines
be terminated with resistors across the data wire pair. The best place to locate such resistors is at the
furthest electrical devices at the ends of the wire pair. For instance, if several RS485 devices are
connected in a daisy chain fashion, the wire connection would loop across all devices in a chain. The
furthest two points in the chain would need to be terminated.
OFFSET BIAS – RS485
The RS485 specification requires receivers to detect input signals down to 200mVp-p of voltage level.
In many cases this can cause systems to be sensitive to noise on the data wires. In an effort to
eliminate the effects of low levels of noise, some manufacturers of equipment that communicate using
RS485 have introduced a small voltage bias to the data lines. This is usually accomplished using a 470
Ohm resistance to +5V on the positive line and a 470 Ohm resistance to ground on the negative line.
When used in conjunction with the appropriate termination resistors referred to in the previous section,
this introduces about a 300 mV offset, improving noise immunity.
6
Page 7
RR-913 STATUS INDICATORS
The RR-913 receiver provides the following LED status indicators to aid in installation and
troubleshooting:
DATA TX/RX INDICATORS
DATA TX and DATA RX indicators are provided to monitor each of the three available data channels.
DATA 1 TX and DATA 1 RX correspond with DATA CH 1 input/output. Indicators for Channel 2 and
Channel 3 are also provided. An explanation follows for these DATA TX and DATA RX indicators.
DATA TX
A green LED indicator is provided to monitor the data coming in from the electrical interface, through
the RR-913, and out onto the fiber. The intensity of this indicator will vary with input data patterns,
however in typical applications it will cycle on and off as data is transmitted. Data transmitted status
associated with this LED is summarized below.
DATA TX LED Data Status
Green Data Flow Present
Off Data Flow Not Detected
DATA RX
A green LED indicator is provided to monitor the data coming in from the fiber, through the RR-913, and
out onto the electrical interface. The intensity of this indicator will vary with input data patterns, however
in typical applications it will cycle on and off as data is received. Data received status associated with
this LED is summarized below.
DATA RX LED Data Status
Green Data Flow Present
Off Data Flow Not Detected
VLI
A bi-color LED indicator is provided for the video output from the RR-913. DC power and video status
associated with this LED is summarized below.
Video Presence LED DC Power Status Video Status
Green On Proper Output Video Present
Red On Output Video Not Detected
Off Off Check Power Supply
OLI
A bi-color LED indicator monitors the optical input power of the data signal that is being received at the
RR-913 from the MT-913 or the RT-913. DC power and optical input status associated with this LED
are summarized below.
Optical Level Indicator DC Power Status Optical Status
Green On Proper Optical Input Power Present
Red On Optical Input Not Detected
Off Off Check Power Supply
7
Page 8
SYNC
A bi-color LED indicator is provided to monitor the proper serialization of the optical data stream into
the RR-913 electronic interface. DC power and sync status associated with this LED is summarized
below.
Sync LED DC Power Status Sync Status
Green On Proper Data Stream Serialization Present
Red On Data Stream Serialization Not Detected
Off Off Check Power Supply
LIFETIME WARRANTY INFORMATION
American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects
in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of
American Fibertek. A Return Material Authorization (RMA) number is required to send the products
back in case of return. All returns must be shipped prepaid. This warranty is void if the products have
been tampered with. This warranty shall be construed in accordance with New Jersey law and the
courts of New Jersey shall have exclusive jurisdiction over this contract. EXCEPT FOR THE
FOREGOING WARRANTY, THERE IS NO WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE OR OTHERWISE, EXPRESSED OR IMPLIED, WHICH EXTENDS
BEYOND THE WARRANTY SET FORTH IN THIS AGREEMENT. In any event, American Fibertek will
not be responsible or liable for contingent, consequential, or incidental damages. No agreement or
understanding, expressed or implied, except as set forth in this warranty, will be binding upon American
Fibertek unless in writing, signed by a duly authorized officer of American Fibertek.
SERVICE INFORMATION
There are no user serviceable parts inside the unit.
In the event that service is required to this unit, please direct all inquiries to:
American Fibertek, Inc. Phone: (877) 234-7200
120 Belmont Drive Phone: (732) 302-0660
Somerset, NJ 08873 FAX (732) 302-0667
E-mail: [email protected]
8
Loading...
