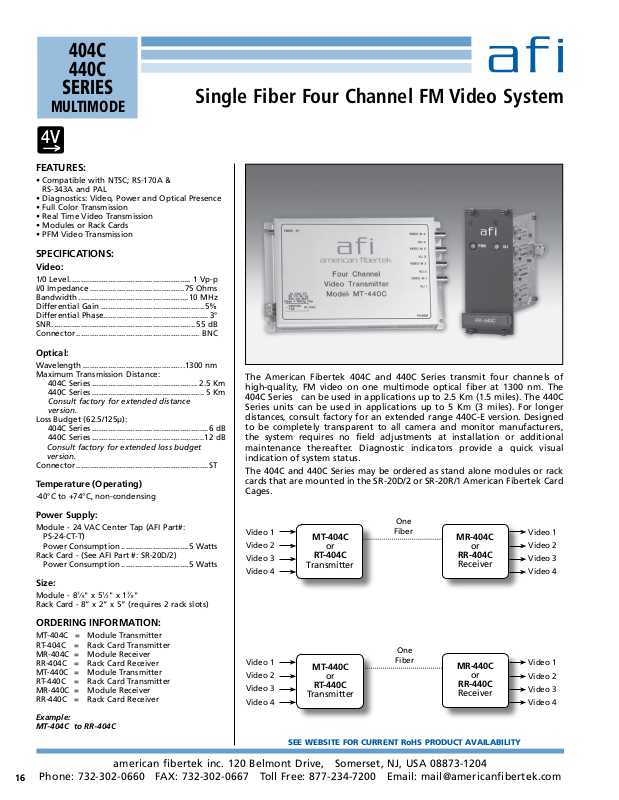

American Fibertek MR-404C-12VDC, RT-404C, RR-404C Specsheet
404C
440C
SERIES
Single Fiber Four Channel FM Video System
MULTIMODE
4V
FEATURES:
• Compatible with NTSC; RS-170A &
RS-343A and PAL
• Diagnostics: Video, Power and Optical Presence
• Full Color Transmission
• Real Time Video Transmission
• Modules or Rack Cards
• PFM Video Transmission
SPECIFICATIONS:
Video:
1/0 Level ...................................................... 1 Vp-p
I/0 Impedance ..........................................75 Ohms
Bandwidth .................................................10 MHz
Differential Gain ..............................................5%
Differential Phase............................................... 3°
SNR ................................................................55 dB
Connector ....................................................... BNC
Optical:
Wavelength .............................................1300 nm
Maximum Transmission Distance:
404C Series ............................................... 2.5 Km
440C Series .................................................. 5 Km
Consult factory for extended distance
version.
Loss Budget (62.5/125µ):
404C Series ....................................................6 dB
440C Series ..................................................12 dB
Consult factory for extended loss budget
version.
Connector ...........................................................ST
Temperature (Operating)
-40°C to +74°C, non-condensing
The American Fibertek 404C and 440C Series transmit four channels of
high-quality, FM video on one multimode optical fiber at 1300 nm. The
404C Series can be used in applications up to 2.5 Km (1.5 miles). The 440C
Series units can be used in applications up to 5 Km (3 miles). For longer
distances, consult factory for an extended range 440C-E version. Designed
to be completely transparent to all camera and monitor manufacturers,
the system requires no field adjustments at installation or additional
maintenance thereafter. Diagnostic indicators provide a quick visual
indication of system status.
The 404C and 440C Series may be ordered as stand alone modules or rack
cards that are mounted in the SR-20D/2 or SR-20R/1 American Fibertek Card
Cages.
Power Supply:
Module - 24 VAC Center Tap (AFI Part#:
PS-24-CT-T)
Power Consumption ..............................5 Watts
Rack Card - (See AFI Part #: SR-20D/2)
Power Consumption ..............................5 Watts
Size:
Module - 87⁄8" x 51⁄2" x 17⁄8"
Rack Card - 8” x 2” x 5” (requires 2 rack slots)
Video 1
Video 2
Video 3
Video 4
MT-404C
or
RT-404C
Transmitter
One
Fiber
MR-404C
or
RR-404C
Receiver
ORDERING INFORMATION:
MT-404C = Module Transmitter
RT-404C = Rack Card Transmitter
MR-404C = Module Receiver
RR-404C = Rack Card Receiver
MT-440C = Module Transmitter
RT-440C = Rack Card Transmitter
MR-440C = Module Receiver
RR-440C = Rack Card Receiver
Example:
MT-404C to RR-404C
Phone: 732-302-0660 FAX: 732-302-0667 Toll Free: 877-234-7200 Email: mail@americanfibertek.com
16
16
american fibertek inc. 120 Belmont Drive, Somerset, NJ, USA 08873-1204
Video 1
Video 2
Video 3
Video 4
MT-440C
or
RT-440C
Transmitter
SEE WEBSITE FOR CURRENT RoHS PRODUCT AVAILABILITY
One
Fiber
MR-440C
or
RR-440C
Receiver
Video 1
Video 2
Video 3
Video 4
Video 1
Video 2
Video 3
Video 4
