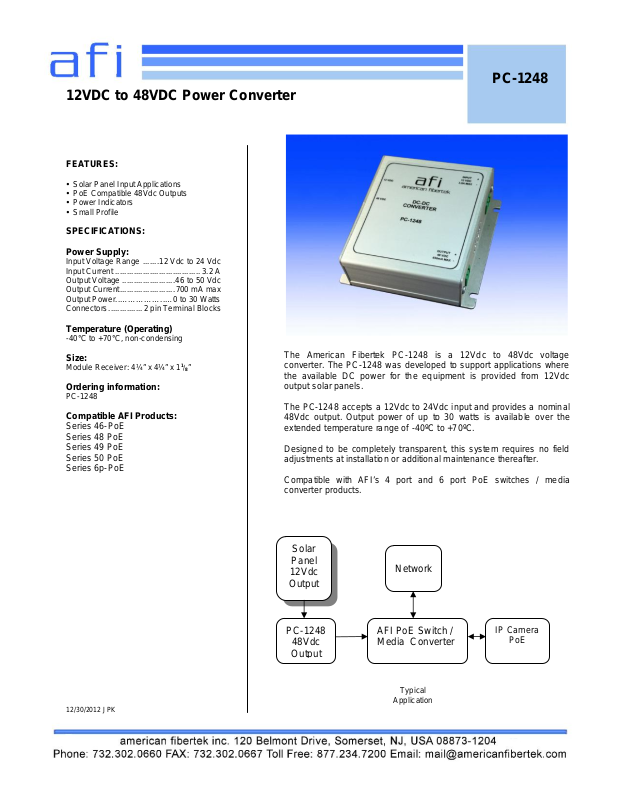

American Fibertek PC-1248 Specsheet

The American Fibertek PC-1248 is a 12Vdc to 48Vdc voltage converter. The PC-1248 was developed to support applications where the available DC power for the equipment is provided from 12Vdc output solar panels.

The PC-1248 accepts a 12Vdc to 24Vdc input and provides a nominal 48Vdc output. Output power of up to 30 watts is available over the extended temperature range of -40ºC to +70ºC.

Designed to be completely transparent, this system requires no field adjustments at installation or additional maintenance thereafter.

Compatible with AFI’s 4 port and 6 port PoE switches / media converter products.

Typical

Application

PC-1248

FEATURES:

 Solar Panel Input Applications  PoE Compatible 48Vdc Outputs  Power Indicators  Small Profile

SPECIFICATIONS: Power Supply:

Input Voltage Range .......12 Vdc to 24 Vdc

Input Current ..................................... 3.2 A

Output Voltage .......................46 to 50 Vdc

Output Current........................700 mA max

Output Power..……………..…0 to 30 Watts

Connectors...............2 pin Terminal Blocks

Temperature (Operating)

-40°C to +70°C, non-condensing

Size:

Module Receiver: 4¼” x 4¼” x 1

”

Ordering information:

PC-1248

Compatible AFI Products:

Series 46-PoE Series 48 PoE Series 49 PoE Series 50 PoE Series 6p-PoE

12/30/2012 JPK

12VDC to 48VDC Power Converter

Solar

Panel

12Vdc

Output

PC-1248

48Vdc

Output

AFI PoE Switch / Media Converter

IP Camera

PoE

Network
