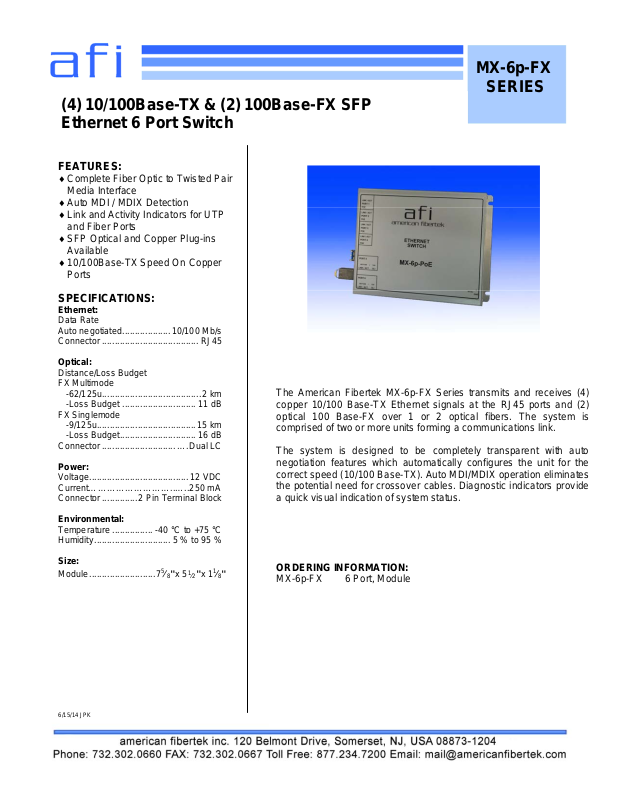

American Fibertek MX-6p-FX Specsheet
(4) 10/100Base-TX & (2) 100Base-FX SFP
Ethernet 6 Port Switch
FEATURES:
Complete Fiber Optic to Twisted Pair
Media Interface
Auto MDI / MDIX Detection
Link and Activity Indicators for UTP
and Fiber Ports
SFP Optical and Copper Plug-ins
Available
10/100Base-TX Speed On Copper
Ports
SPECIFICATIONS:
Ethernet:
Data Rate
Auto negotiated...................10/100 Mb/s
Connector...................................... RJ45
Optical:
Distance/Loss Budget
FX Multimode
-62/125u.......................................2 km
-Loss Budget ............................. 11 dB
FX Singlemode
-9/125u.......................................15 km
-Loss Budget.............................. 16 dB
Connector.............................….Dual LC
Power:
Voltage.......................................12 VDC
Current………………………..…..250 mA
Connector..............2 Pin Terminal Block
Environmental:
Temperature................ -40 °C to +75 °C
Humidity.............................. 5 % to 95 %
Size:
Module..........................7
6/15/14 JPK
5
1
⁄ 8"
x 5
"
x 11⁄ 8"
⁄2
The American Fibertek MX-6p-FX Series transmits and receives (4)
copper 10/100 Base-TX Ethernet signals at the RJ45 ports and (2)
optical 100 Base-FX over 1 or 2 optical fibers. The system is
comprised of two or more units forming a communications link.
The system is designed to be completely transparent with auto
negotiation features which automatically configures the unit for the
correct speed (10/100 Base-TX). Auto MDI/MDIX operation eliminates
the potential need for crossover cables. Diagnostic indicators provide
a quick visual indication of system status.
ORDERING INFORMATION:
MX-6p-FX 6 Port, Module
